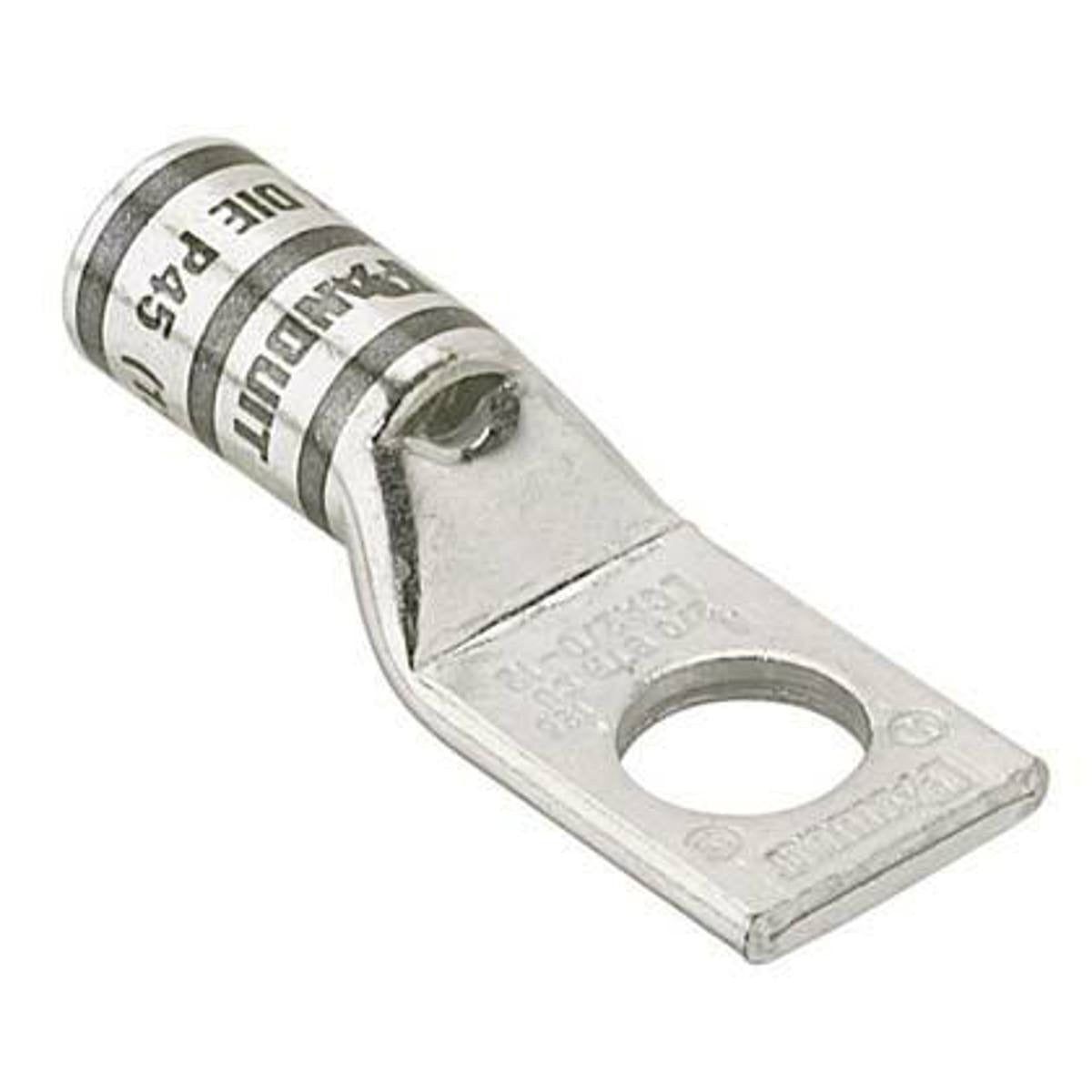

Panduit LCA6-12-L Cu lug 35 kV (#6 AWG / 1/2 in stud / pack 50)

Product Description

Panduit LCA6-12-L is a tin-plated copper one-hole compression lug for terminating #6 AWG stranded copper conductors to a 1/2 in. stud. It features a standard straight barrel with an inspection window to verify conductor insertion, a 0.220 in barrel ID and 0.310 in barrel OD, and an overall length of 2.23 in. The lug is non-insulated, rated to 35 kV, UL listed and CSA certified to +90°C, and is supplied in factory packs of 50.

• Tin-plated copper construction with electro-tin contact finish and non-insulated barrel
• Fits 6 AWG stranded copper conductors to a 1/2 in. stud; inspection window for visual verification
• Standard straight barrel crimp termination; dimensions: barrel ID 0.220 in, barrel OD 0.310 in, overall length 2.23 in

Product Highlights

One-hole tin-plated copper compression lug with inspection window; fits 6 AWG to 1/2 in stud; 35 kV rating; standard straight barrel; factory pack quantity 50.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LCA6-12-L
• Country of Origin: Mexico
