Panduit LCA500-12-6 Copper Compression Lug 35 KV 500 kcmil 1 Hole

Product Description

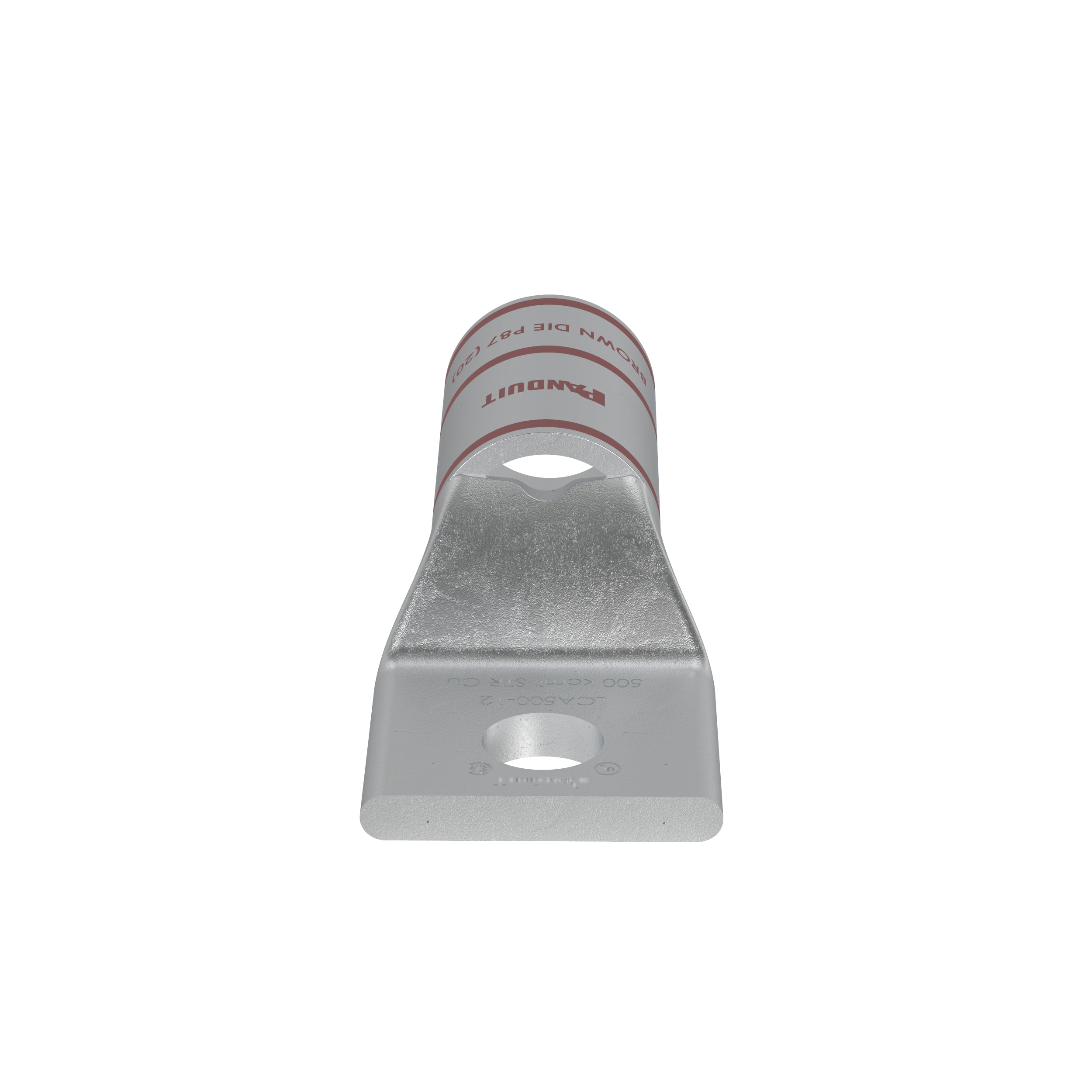

Panduit LCA500-12-6 is a copper compression lug designed for one-hole applications. This lug connects to 500 kcmil stranded copper conductors and features a standard barrel structure with an inspection window. The design of the lug includes color-coded barrels, which indicate die index numbers for proper crimp die selection. The tin-plated copper material inhibits corrosion, ensuring durability and reliability in electrical applications.

• UL Listed and CSA Certified to 35 KV
• Temperature rated to 90 degrees Celsius
• 1/2 inch stud hole size

Product Highlights

Perfect for professional electrical installations, this lug supports reliable connections in various settings.

Product Information

Standard Information

• MPN: LCA500-12-6
• Brand: Panduit

Technical Specifications

• Barrel: Standard
• Bolt Hole: 1/2 inch
• Gauge: 500 kcmil (also known as MCM)
• Holes: 1 hole
• Inspection Hole: Yes
• Lug Material: Copper
• Type: Standard compression
• UNSPSC Code: 39121400
