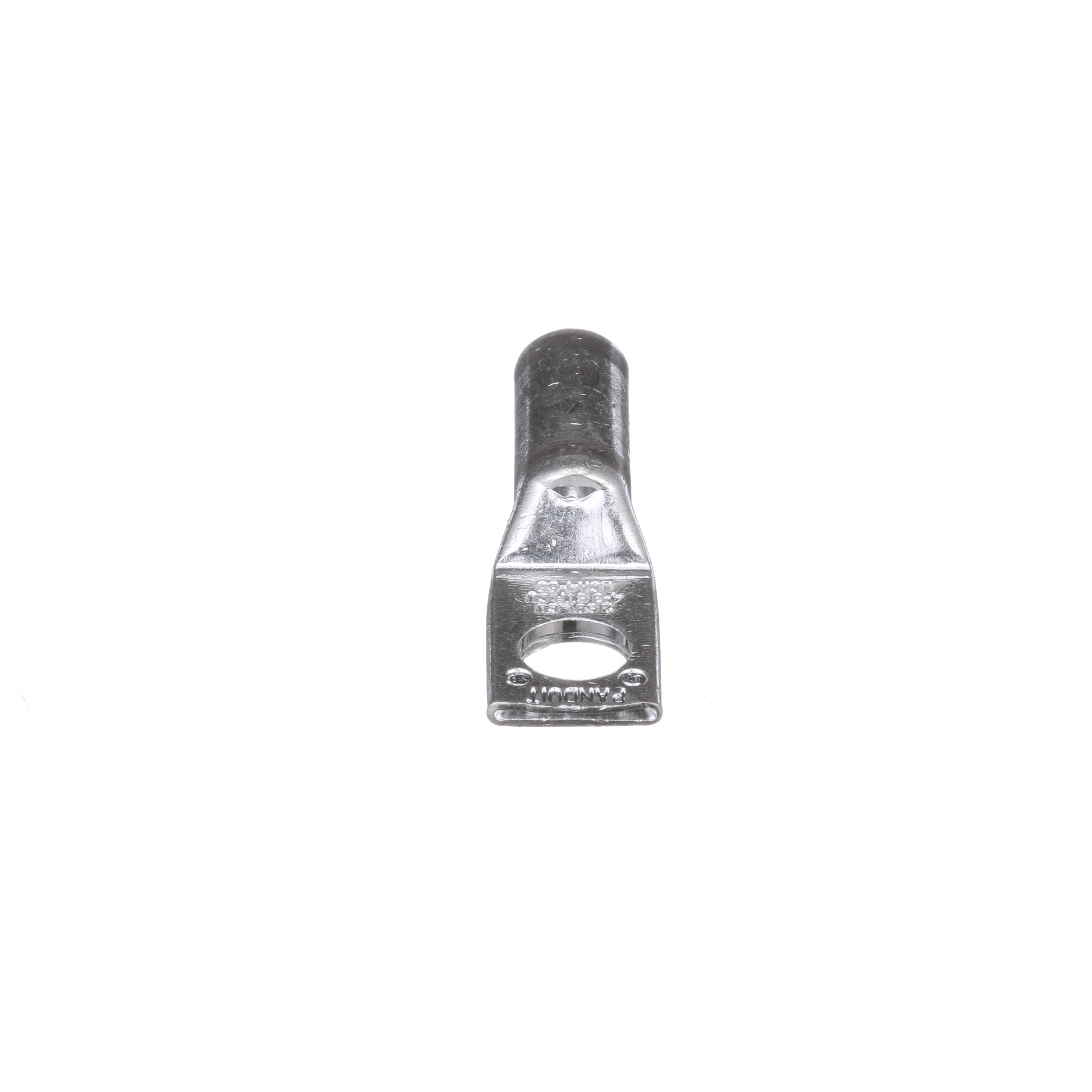

Panduit LCA4-56-L Copper Compression Lug

Product Description

The LCA4-56-L is a Tin-Plated Copper Compression Lug manufactured by Panduit. This one-hole compression lug features a standard barrel design with color-coded barrels. The barrels are marked for easy identification and proper crimp die selection using specified competitor die index numbers. An inspection window allows for visually confirming full conductor insertion.

• UL Listed and CSA Certified to 35 kV
• Temperature rated to ninety degrees Celsius
• Corrosion-resistant tin plating

Product Highlights

The LCA4-56-L compression lug provides reliable electrical connections in various applications, especially in electrical installations requiring secure and durable connections.

Product Information

Standard Information

• Manufacturer: Panduit
• MPN: LCA4-56-L

Technical Specifications

• Barrel Type: Standard
• Gauge: 4 AWG
• Holes: 1 Hole
• Inspection Hole: Yes
• Lug Material: Copper
• Stud Size: 5/16 inch
• Voltage Rating: 35 kV
• Conductor Size: 4 to 3 AWG
• Temperature Rating: 90 degrees Celsius
