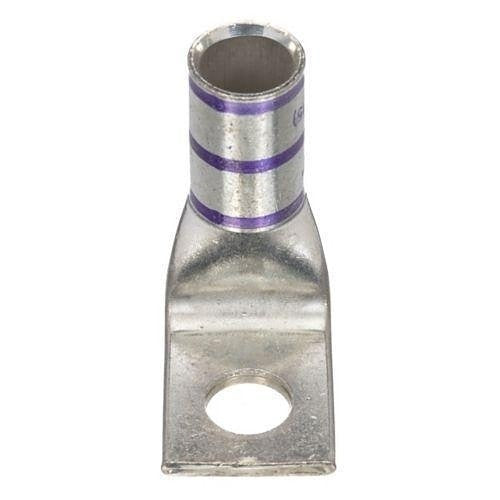

Panduit LCA4/0-12F-X Copper Compression Lug 1 Hole

Product Description

The PANDUIT LCA4/0-12F-X is a copper compression lug designed for terminating large-gauge conductors in electrical distribution and grounding applications. The single-hole mounting configuration allows secure attachment to bus bars, equipment terminals, and panel lugs. Manufactured from copper, this compression-style lug provides a reliable, low-resistance connection when installed with the correct compression tooling. It is sized for 4/0 AWG conductors and is a standard choice for licensed electricians working on service entrance, feeder, and bonding circuits.

This lug is suited for residential, commercial, and light industrial electrical installations where 4/0 AWG terminations are required. Typical applications include service panel connections, grounding electrode conductors, feeder terminations, and equipment bonding. The single-hole design is commonly used where a compact, clean termination to a flat terminal pad is needed.

Key Features

• Copper construction for high conductivity and corrosion resistance
• Compression-style termination for a secure, gas-tight conductor connection
• Single-hole mounting for attachment to bus bars and equipment pads
• Sized for 4/0 AWG conductor applications
• Sold individually, one lug per unit

Compatibility

Designed as an OEM-style compression lug for 4/0 AWG copper conductor terminations in standard electrical distribution and grounding assemblies.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NEC requirements. De-energize and lock out the circuit before terminating any conductors. Use only the manufacturer-specified compression tool and die set to achieve a proper crimp; hand-tightening alone does not create an acceptable compression termination. Inspect the completed crimp for proper indentation and secure conductor seating before re-energizing.
