Panduit LCA4/0-12-X Pan-Lug Compression Lug 4/0 AWG (1/2 in Stud)

Product Description

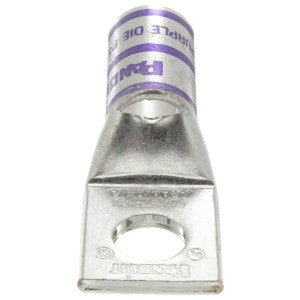

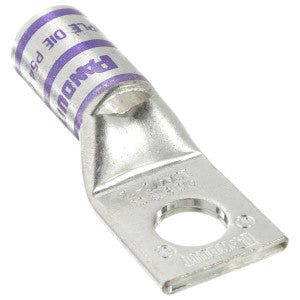

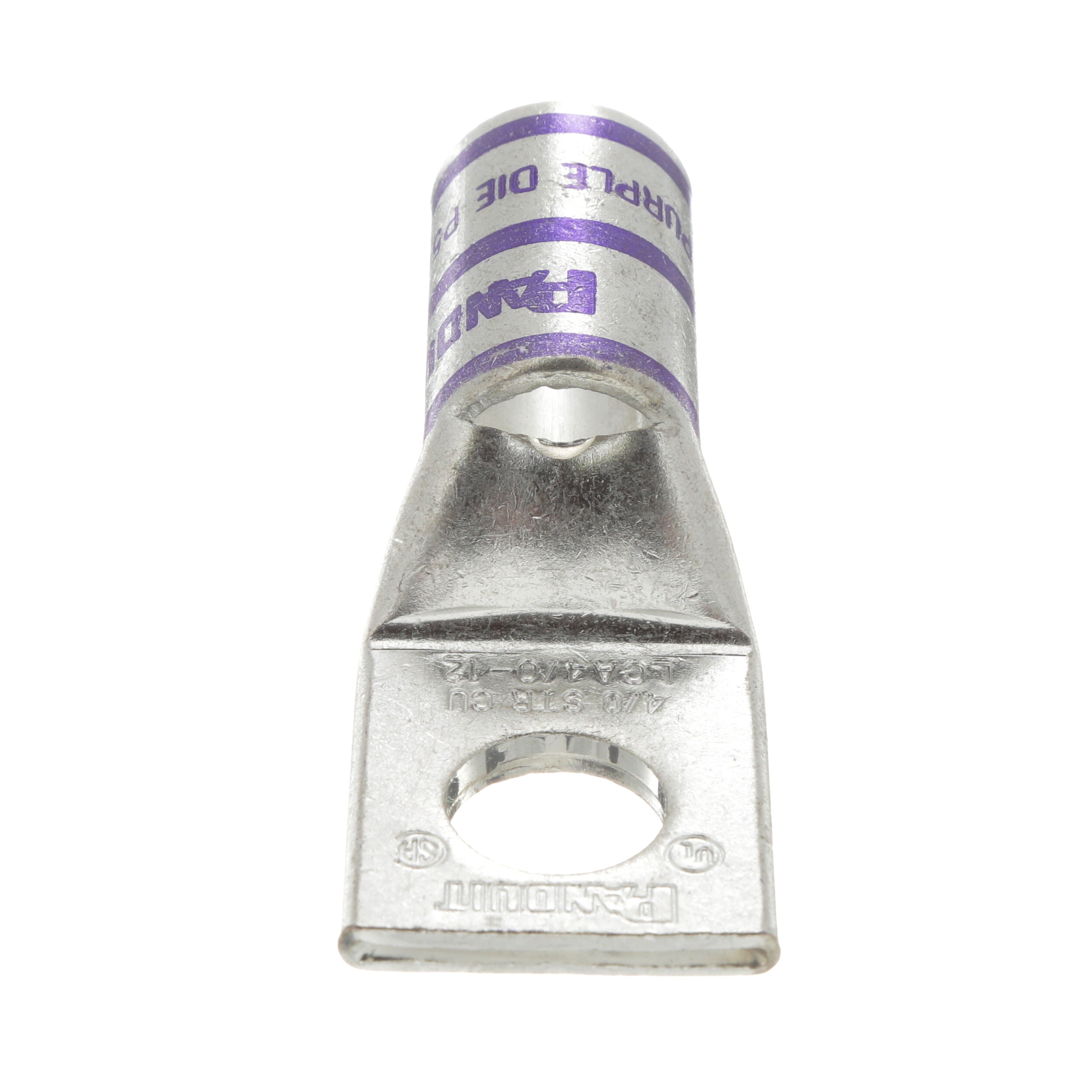

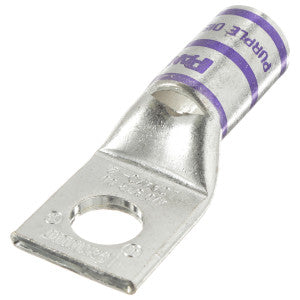

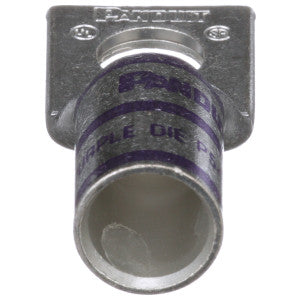

The PANDUIT LCA4/0-12-X Pan-Lug™ Compression Lug Connector is a 1-hole lug designed for stranded copper conductors with a 4/0 AWG conductor size. It features a straight tongue and an inspection window to ensure full conductor insertion. Tin-plated to inhibit corrosion, it is suitable for applications up to 35 kV.

• Straight tongue angle
• 1-1/4 in L wire strip
• An inspection window aids to visually assure full conductor insertion and the tin-plate material helps to inhibit corrosion

Product Highlights

The LCA4/0-12-X lug ensures secure and reliable connections for various electrical applications, withstanding temperatures up to 90 degrees C.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LCA4/0-12-X
• Country of Origin: MEX

Technical Specifications

• Conductor Size: 4/0 AWG
• Conductor Type: Stranded Copper
• Manufacturer Part Number: LCA4/0-12-X
• Material: Copper
• Overall Length: 2.68 in
• Series: LCA
• Standards/Approvals: ARRA Compliant|ASTM B545-97 Class C|Buy American Act Compliant|CSA C22.2 File No. 65-13|NEBS Level 3|RoHS Compliant|UL File No. 486A|UL File No. 486B|UL File No. E52164
• Stud Size: 1/2 in
• Temperature Rating: 90 deg C
• Tongue Type: Straight
• Type: 1-Hole
• Voltage Rating: 35 kV
• Mounting Type: Free Hanging (In-Line)
• Termination: Crimp, Barrel
• Insulation: Non-Insulated
• Contact Finish: Electro-Tin
• Terminal Style: Single Stud Hole
• Brand: Pan-Lug
• Number Of Holes: 1
• Standard: C22.2 No. 65-13, 486A-486B File #E52164
