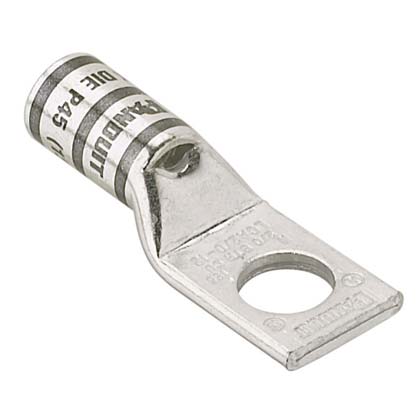

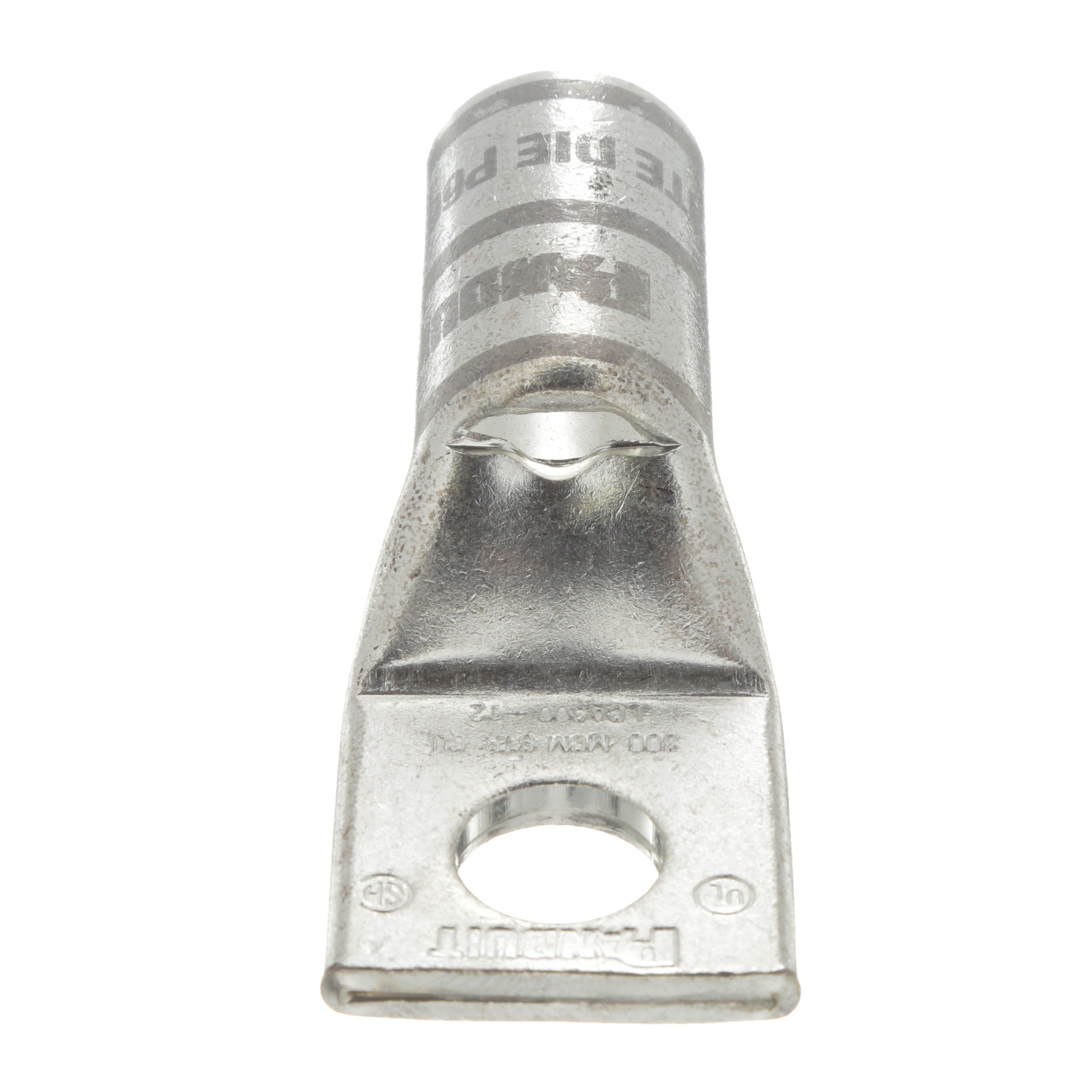

Panduit LCA300-12-X Pan-Lug 300 kcmil Lug 1/2 in.

Product Description

The PANDUIT LCA300-12-X Pan-Lug Compression Connector Lug is a 1-hole lug designed for copper stranded conductors with a size of 300 kcmil. It features a 1/2 inch stud and is suitable for applications up to 35 kV. The lug is tin-plated to inhibit corrosion and has an inspection window to ensure full conductor insertion.

• Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
• Inspection window to visually assure full conductor insertion
• Tin-plated to inhibit corrosion

Product Highlights

This compression connector lug ensures secure and reliable connections for electrical applications, withstanding harsh environments and providing optimal performance.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LCA300-12-X
• Country of Origin: MX - Mexico

Technical Specifications

• Manufacturer Part Number: LCA300-12-X
• Series: LCA
• Conductor Type: Copper Stranded
• Conductor Size: 300 kcmil
• Die Code: P66
• Voltage Rating: 35 kV
• Stud Size: 1/2 in
• Tongue Type: Standard/Straight
• Tongue Size: 1.19 in W x 0.16 in THK
• Overall Length: 3.05 in
• Barrel Size: 0.65 in ID x 0.81 in OD x 1.44 in L
• Temperature Rating: 90 deg C
• Material: Copper
• Standards/Approvals: ARRA Compliant|ASTM B545-97 Class C|Buy American Act Compliant|CSA C22.2 No. 65-13|NEBS Level 3|RoHS Compliant|UL 486A|UL 486B|UL Listed File No. E52164
• Type: 1-Hole
• Termination: Crimp, Barrel
• Mounting Type: Free Hanging (In-Line)
• Insulation: Non-Insulated
• Contact Finish: Electro-Tin
• Contact Material: Copper
• Terminal Type: Rectangular Tongue
• Terminal Style: Single Stud Hole
• Diameter - Barrel ID: 0.650" (16.51mm)
• Tab Thickness: 0.160" (4.06mm)
• Diameter - Barrel OD: 0.810" (20.57mm)
• Length - Overall: 3.040" (77.22mm)
• Diameter - Ring ID: 0.530" (13.46mm)
• Width - Outer Edges: 1.190" (30.23mm)
• Finish: Tin-Plated
• Standard: UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
• Length: 3.05 in.
• Brand: Panduit
