Panduit LCA2-14-Q Copper Compression Lug 35 kV 2 AWG Replacement MPN

Product Description

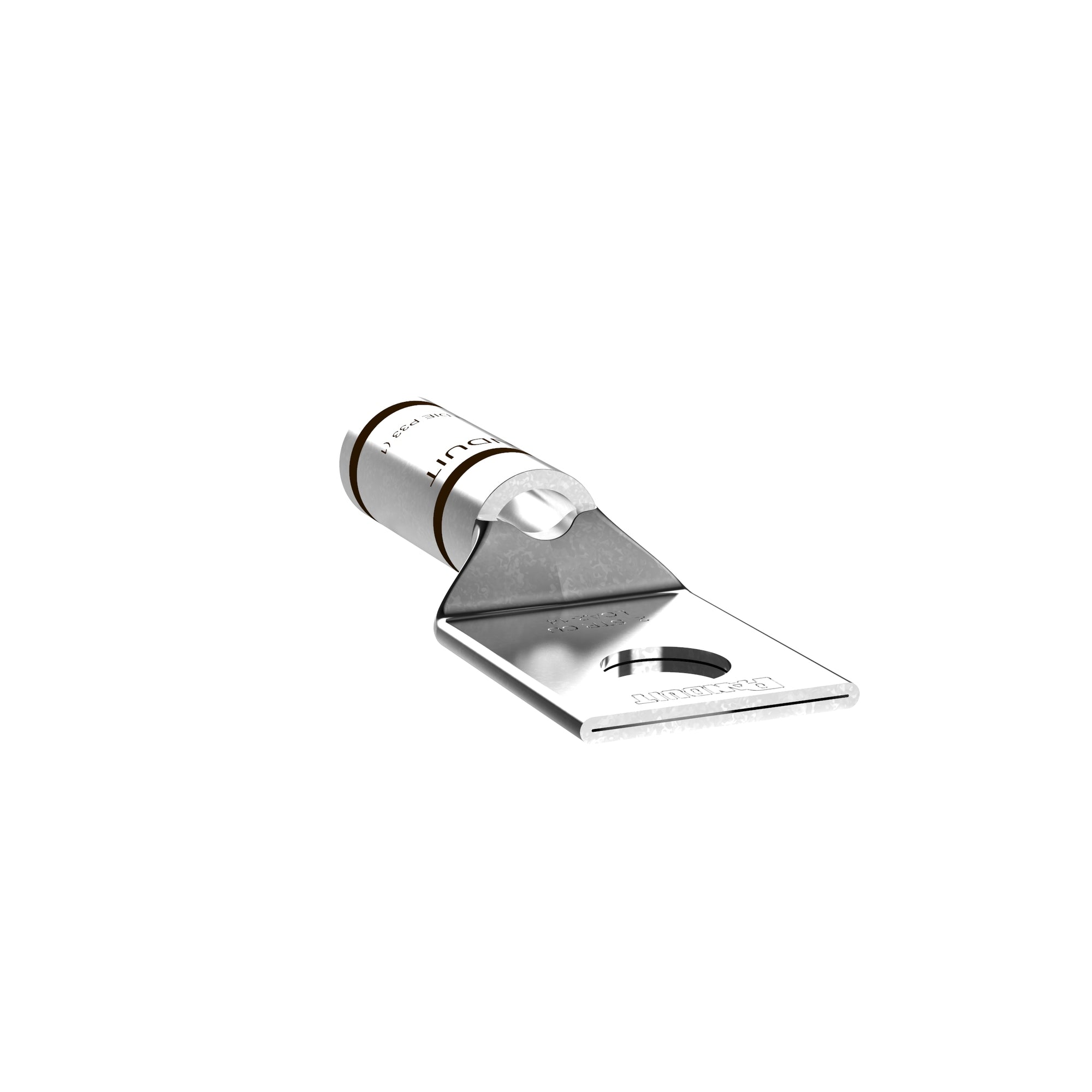

The LCA2-14-Q is a compression lug connector made of copper. It is a one-hole lug designed for 2 AWG stranded copper conductors. This product is manufactured by Panduit and is UL listed for safety. The lug features color-coded barrels for die selection. An inspection window allows for checking the conductor insertion. The lug is tin-plated to fight corrosion. It operates safely at a voltage of 35 kV and is temperature rated up to 90 degrees Celsius.

• Copper construction
• Inspection window feature
• UL listed, CSA certified

Product Highlights

This copper compression lug is ideal for electrical connections in various applications, including power distribution.

Product Information

Standard Information

• Brand: Panduit
• MPN: LCA2-14-Q

Technical Specifications

• Barrel: Standard
• Bolt Hole: 1/4 inch
• Gauge: 2 AWG
• Holes: 1 hole
• Inspection Hole: Yes
• Lug Material: Copper
• Type: Standard compression
• UNSPSC Code: 39121400
