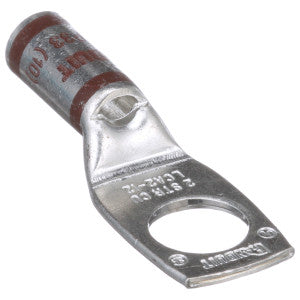

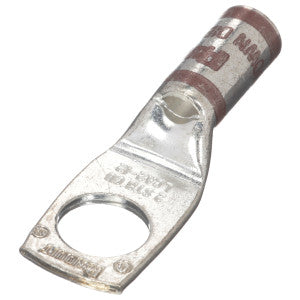

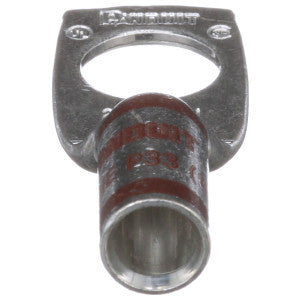

Panduit LCA2-12-Q Terminal Connector Rectangular Tongue 2 AWG 1/2 Stud

Product Description

The Panduit LCA2-12-Q is a terminal connector with a rectangular tongue, designed for 2 AWG wire and a 1/2 stud. It features color-coded barrels marked with Panduit and competitor die index numbers. An inspection window aids in visually assuring full conductor insertion. The tin-plate material helps to inhibit corrosion.

• Color-coded barrels marked with Panduit and specified competitor die index numbers
• Inspection window for full conductor insertion
• Tin-plate material helps to inhibit corrosion

Product Highlights

The Panduit LCA2-12-Q ensures reliable terminal connections with corrosion resistance and easy conductor insertion verification.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LCA2-12-Q
• Country of Origin: MX - Mexico

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Lugs
• Mounting Type: Free Hanging (In-Line)
• Manufacturer: Panduit Corp
• Termination: Crimp, Barrel
• Series: Pan-Lug
• Wire Gauge: 2 AWG
• Packaging: Bulk
• Insulation: Non-Insulated
• Part Status: Active
• Color: Brown
• Terminal Type: Rectangular Tongue
• Contact Finish: Electro-Tin
• Stud/Tab Size: 1/2 Stud
• Contact Material: Copper
• Terminal Style: Single Stud Hole
• Diameter - Barrel ID: 0.310" (7.87mm)
• Tab Thickness: 0.080" (2.03mm)
• Diameter - Barrel OD: 0.420" (10.67mm)
• Length - Overall: 2.210" (56.13mm)
• Diameter - Ring ID: 0.530" (13.46mm)
• Width - Outer Edges: 0.750" (19.05mm)
• Base Product Number: LCA2
• Brand: Pan-Lug
• Finish: Tin-Plated
• Standard: UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
• Material: Copper
• Die Color: Brown
• Outer Diameter: 0.42 in.
• Lug Wire Size: 2 AWG
• Color Family: Brown
• Length: 2.3"
• Product Range: LCA Series
• Stud Size - Metric: M12
• Stud Size - Imperial: 1/2"
• Product Name: Terminal Connector
• Product Type: Terminal Connector
• Environmentally Friendly: Yes
