Panduit LCA2/0-12-X Pan-Lug Compression Lug 2/0 AWG 1/2 in.

Product Description

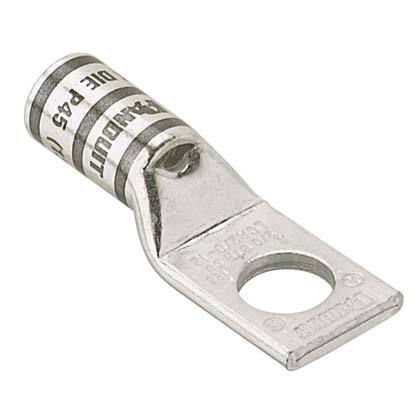

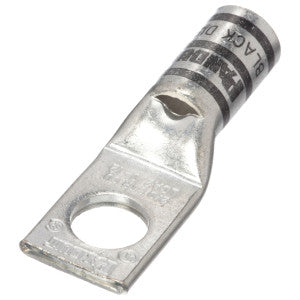

The Panduit LCA2/0-12-X Pan-Lug™ Compression Lug Connector is a 1-hole lug designed for stranded copper conductors, 2/0 AWG. It features an inspection window to ensure full conductor insertion and is tin-plated to inhibit corrosion. This lug is UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.

• Straight tongue angle
• Features an inspection window to visually assure full conductor insertion
• Tin-plated to inhibit corrosion

Product Highlights

The Panduit LCA2/0-12-X lug ensures secure and reliable connections for grounding applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LCA2/0-12-X
• Country of Origin: MX - Mexico

Technical Specifications

• Manufacturer Part Number: LCA2/0-12-X
• Series: LCA
• Conductor Type: Stranded Copper
• Conductor Size: 2/0 AWG
• Stud Size: 1/2 in
• Voltage Rating: 35 kV
• Temperature Rating: 90 deg C
• Material: Copper
• Finish: Tin-Plated
• Mounting Type: Free Hanging (In-Line)
• Termination: Crimp, Barrel
• Insulation: Non-Insulated
• Terminal Type: Lug, Grounding
• Contact Finish: Electro-Tin
• Contact Material: Copper
• Terminal Style: Single Stud Hole
• Tongue Type: Straight
• Type: 1-Hole
• Standards/Approvals: ARRA Compliant|ASTM B545-97 Class C|Buy American Act Compliant|CSA C22.2 File No. 65-13|NEBS Level 3|RoHS Compliant|UL File No. 486A|UL File No. 486B|UL File No. E52164
• Die Code: P45
• Standard: UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
• Lug Wire Size: 2/0 AWG
