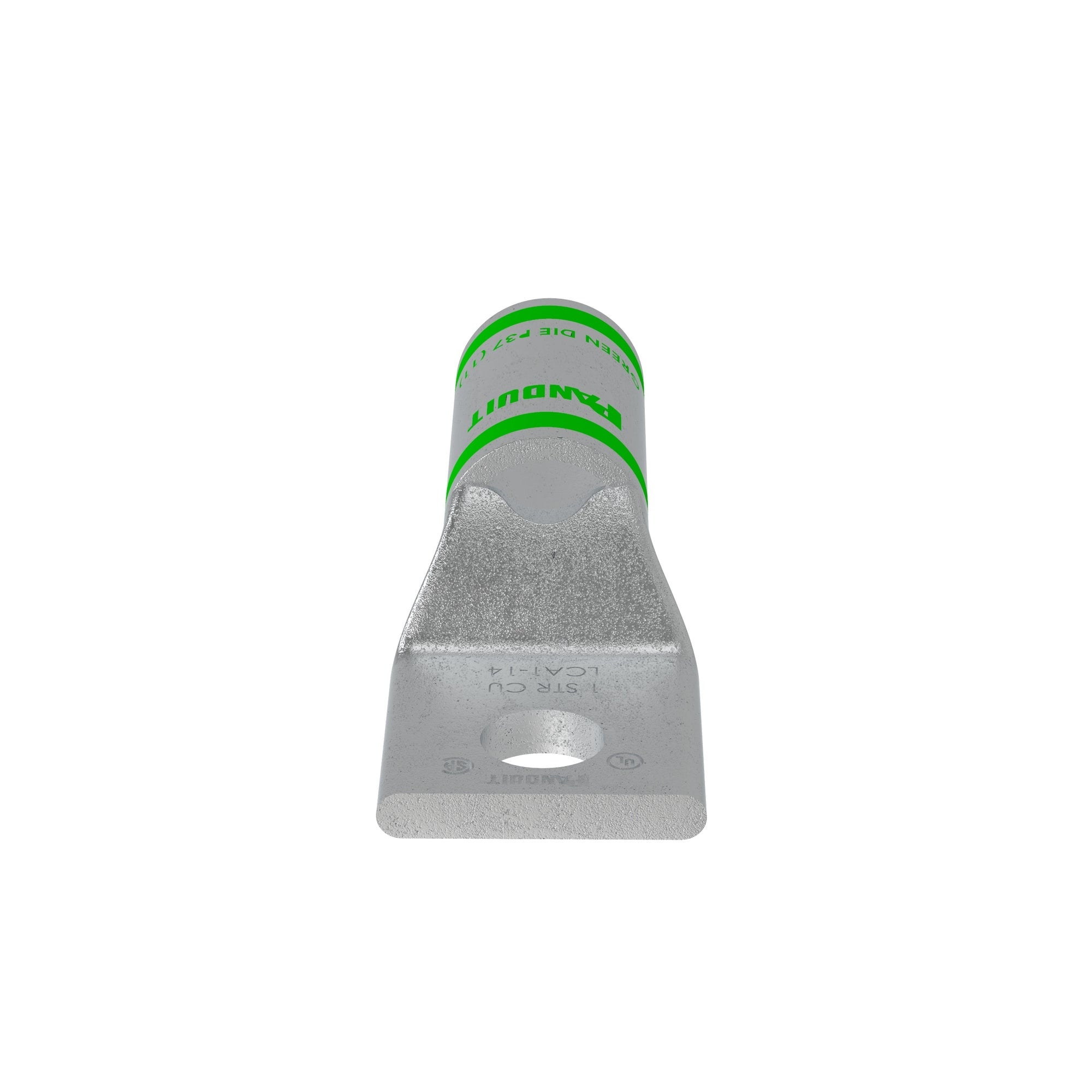

Panduit LCA1-14-E Copper Compression Lug

Product Description

The Panduit LCA1-14-E is a copper compression lug designed for solid electrical connections. It features a one-hole, standard barrel construction. The barrel is color-coded for easy selection of crimp dies. An inspection window ensures proper conductor insertion. This product is made of tin-plated copper to inhibit corrosion.

• Color-coded for easy crimp die selection
• Visual inspection window for proper conductor insertion
• UL Listed and CSA Certified for safety

Product Highlights

This lug is suitable for a variety of power and grounding applications, ensuring reliable connections in demanding environments.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: LCA1-14-E

Technical Specifications

• Application: Permanent terminations for power and grounding
• Barrel Size: 0.36 inches ID x 0.47 inches OD x 0.88 inches length
• Color: Green
• Conductor Size: 1 AWG
• Material: Copper
• Voltage Rating: 35 kV
• Temperature Rating: 90 degrees Celsius
• Stud Size: 1/4 inches
