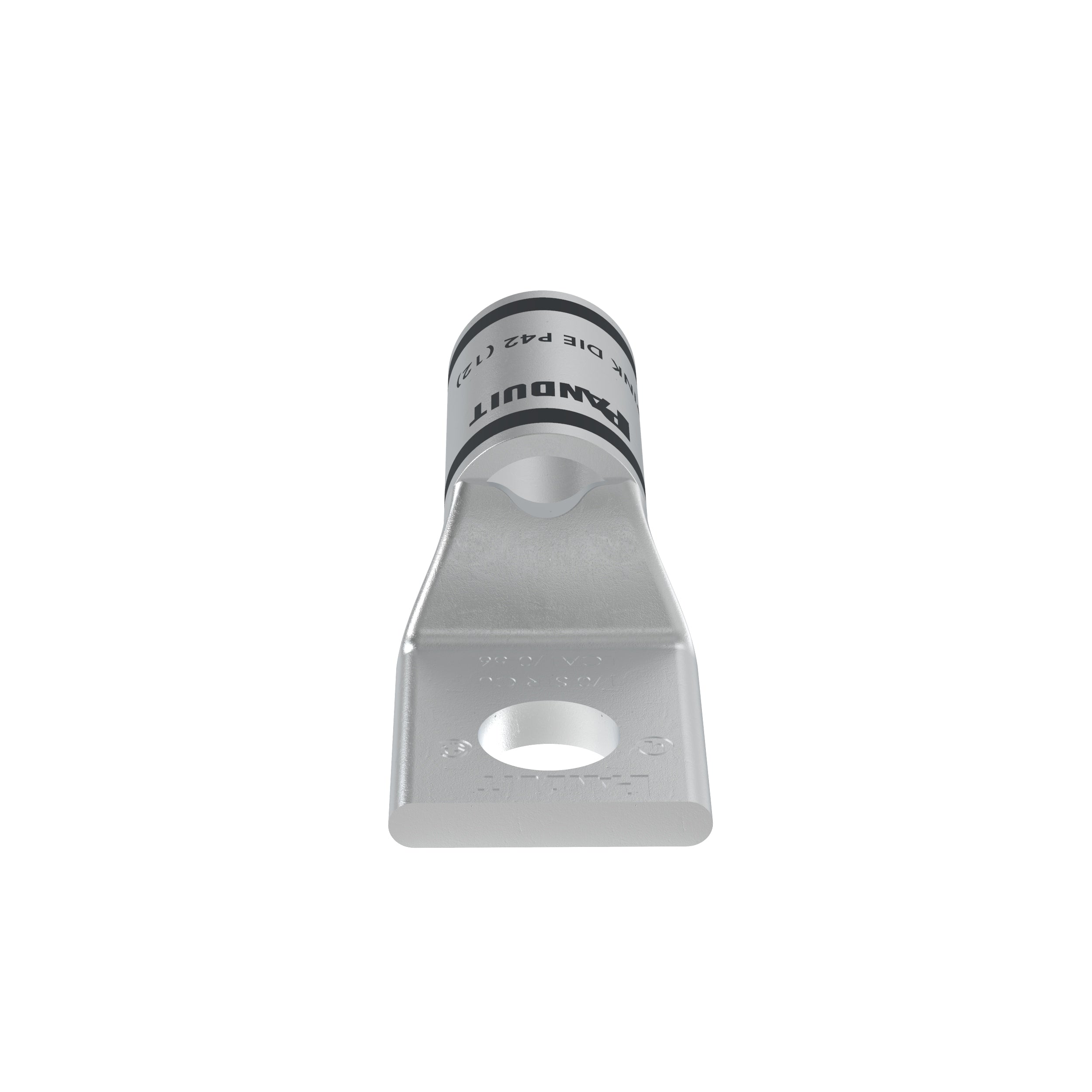

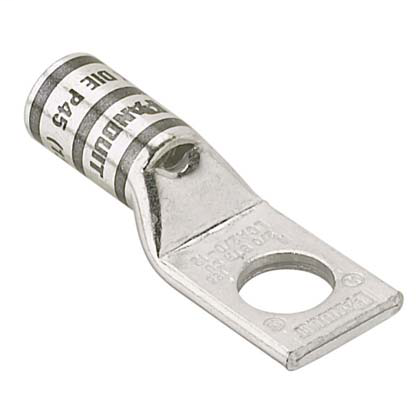

Panduit LCA1/0-56-X Lug 1/0 AWG Wire 5/16 Stud Hole

Product Description

The PANDUIT LCA1/0-56-X is a compression lug designed for secure connectivity in power systems. Constructed from tin-plated copper, this lug accommodates 1/0 AWG wires and features a 5/16 stud hole. The one-hole design includes a standard barrel with an inspection window for easy installation and full conductor insertion. It is suitable for power and grounding applications.

• Color-coded bands for proper die selection and crimp placement
• Inspection window aids to visually assure full conductor insertion
• Tin-plated to inhibit corrosion

Product Highlights

The PANDUIT LCA1/0-56-X lug ensures reliable power connections with its durable construction and easy installation features.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LCA1/0-56-X

Technical Specifications

• Application: For use to provide permanent terminations for a variety of power and grounding applications
• Barrel Size: 0.39 in ID x 0.52 in OD x 0.94 in L
• Color: Pink
• Conductor Size: 1/0 AWG
• Conductor Type: Copper/Stranded
• Die Code: P42
• Manufacturer Part Number: LCA1/0-56-X
• Material: Tin Plated Copper
• Overall Length: 2 in
• Series: LCA
• Standards/Approvals: ABS Approved|ARRA Compliant|Buy American Act Compliant|CSA C22.2 File No. 65-13|NEBS Level 3|RoHS Compliant|UL File No. 486A|UL File No. 486B|UL File No. E52164
• Stud Size: 5/16 in
• Temperature Rating: 90 deg C
• Tongue Size: 0.76 in W x 0.12 in THK
• Tongue Type: Straight
• Type: 1-Hole
• Voltage Rating: 35 kV
• Manufacturer: Panduit
• Stud Hole Size: 42.491 in, 7.9 mm
• Tongue Width: 19.3 mm, .76 in
• Barrel Length: 23.9 mm, .94 in
• Barrel Type: Standard Barrel Length with Inspection Window
• Product: Compression Lugs
• Product Type: Tin-Plated Copper Compression Connectors - Lugs
• Tongue Angle: Straight
• Terminals: Lugs
• Mounting Type: Free Hanging (In-Line)
• Termination: Crimp, Barrel
• Wire Gauge: 1/0 AWG
• Packaging: Bulk
• Insulation: Non-Insulated
• Part Status: Active
• Terminal Type: Rectangular Tongue
• Contact Finish: Electro-Tin
• Contact Material: Copper
• Terminal Style: Single Stud Hole
• Diameter - Barrel ID: 0.390" (9.91mm)
• Tab Thickness: 0.120" (3.05mm)
• Diameter - Barrel OD: 0.520" (13.21mm)
• Length - Overall: 2.000" (50.80mm)
• Diameter - Ring ID: 0.340" (8.64mm)
• Width - Outer Edges: 0.760" (19.30mm)
• Base Product Number: LCA1
• Angle: straight Degree(s)
• Contact Plating: Electro-Tin
• Hole Size: 5/16 in
• Numeric ID: 2510411
• Package Quantity: 10
• Special Features: Standard Barrel
• Strip Length: 1"
• Style: One-Hole
• UPC Code: 074983900251
• Wire Size: 1/0 AWG
