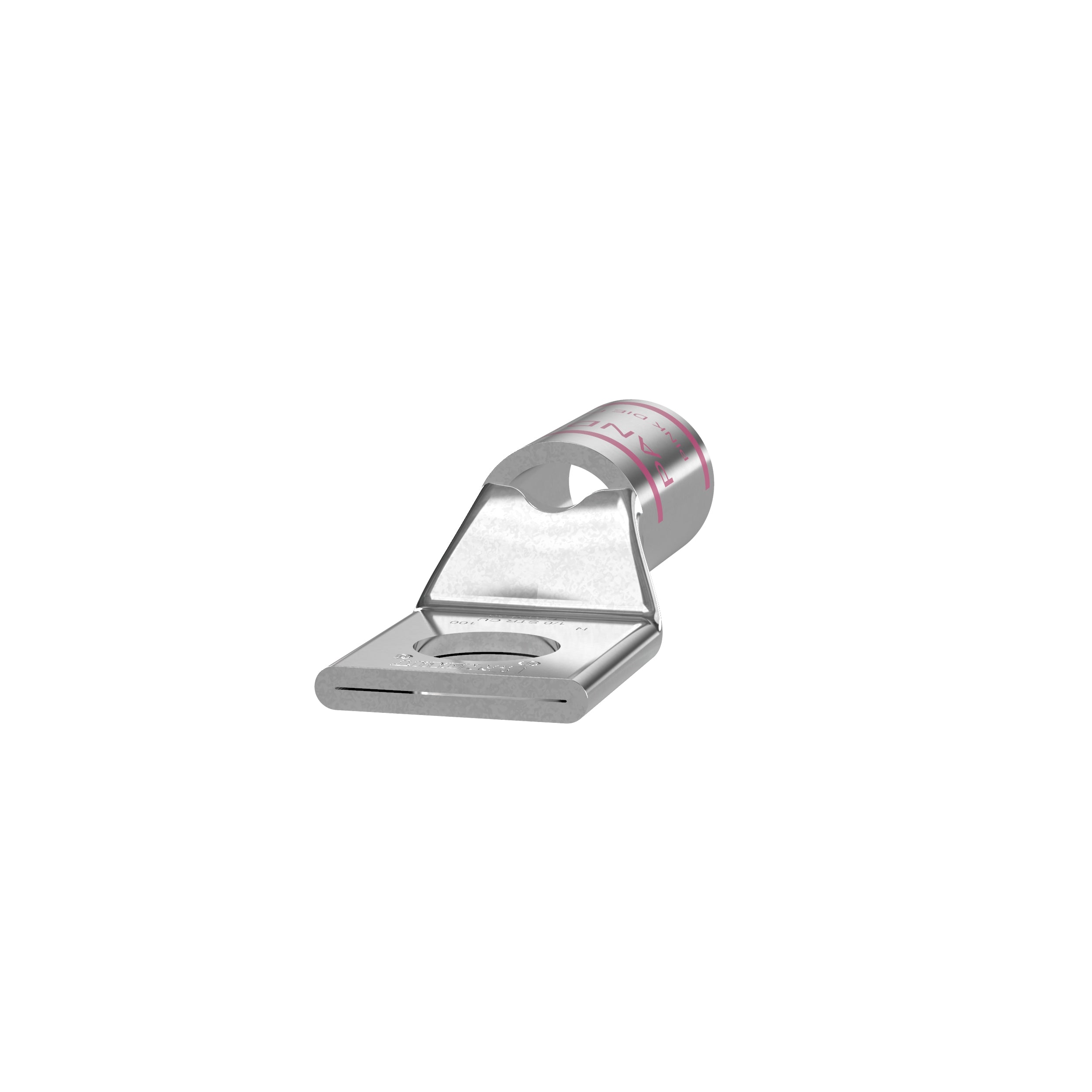

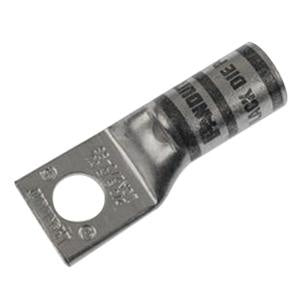

Panduit LCA1/0-38-X Copper Compression Lug 1/0 AWG 3/8 Inch

Product Description

The Panduit LCA1/0-38-X is a copper compression lug designed for use with stranded copper conductors. It features a one-hole standard barrel configuration with color-coded barrels marked for easy crimp die selection.

• Inspection window for full conductor insertion assurance.
• Tin-plated material to resist corrosion.
• Electrical ratings include UL Listed and CSA Certified for up to 35 kV and rated for 90 degrees Celsius.

Product Highlights

This compression lug is well-suited for high voltage applications and ensures reliable connections in various power and grounding scenarios.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: LCA1/0-38-X

Technical Specifications

• Conductor Size: 1/0 AWG
• Stud Size: 3/8 Inch
• Overall Length: 2.08 Inches
• Barrel Size: 0.39 Inch ID x 0.52 Inch OD
• Temperature Rating: 90 degrees Celsius
• Material: Copper
• Color: Pink
• Standards: UL listed, CSA Certified
