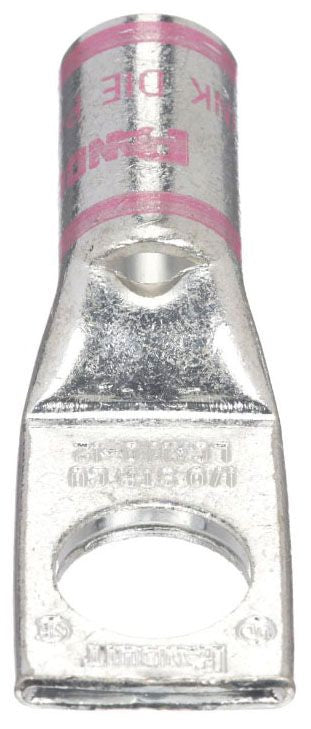

Panduit LCA1/0-12-X Compression Lug 1/0 Awg 1 Hole

Product Description

The PANDUIT LCA1/0-12-X is a single-hole compression lug designed for terminating 1/0 AWG copper conductors in electrical distribution and grounding applications. Compression lugs of this type provide a gas-tight, mechanically secure connection between a conductor and a bus bar, stud, or equipment terminal. The crimp-style barrel accepts 1/0 AWG wire, and the single-hole tongue bolts directly to the termination point. Licensed electricians and electrical contractors install this type of lug during panel builds, switchgear assembly, and service entrance work.

This lug is suited for commercial and industrial electrical installations where reliable high-current terminations are required. Typical applications include main service panels, distribution boards, motor control centers, and grounding electrode conductor terminations. The single-hole mounting configuration keeps the connection compact and compatible with standard bus bar and terminal stud layouts common in these systems.

Key Features

• Accepts 1/0 AWG conductor for heavy-duty termination work
• Single-hole tongue for direct bus bar or stud mounting
• Compression-style barrel creates a gas-tight, low-resistance crimp connection
• Compact lug profile suited for panel and switchgear environments

Compatibility

Designed as an OEM-style compression lug for use with 1/0 AWG copper conductors in standard single-hole termination applications across residential, commercial, and industrial electrical systems.

Installation Notes

Installation must be performed by a qualified electrician in accordance with NEC requirements for conductor terminations. De-energize and lock out the circuit before installing or removing any lug. Use a calibrated compression tool rated for the lug series to achieve a proper crimp — an improper crimp can result in high-resistance connections or conductor pull-out. Inspect the completed crimp for deformation or cracking before restoring power.

Technical Specifications

• Wire Size: 1/0 AWG
• Mounting Holes: 1
• Connection Type: Compression crimp
• UPC: 07498390027

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LCA1/0-12-X
