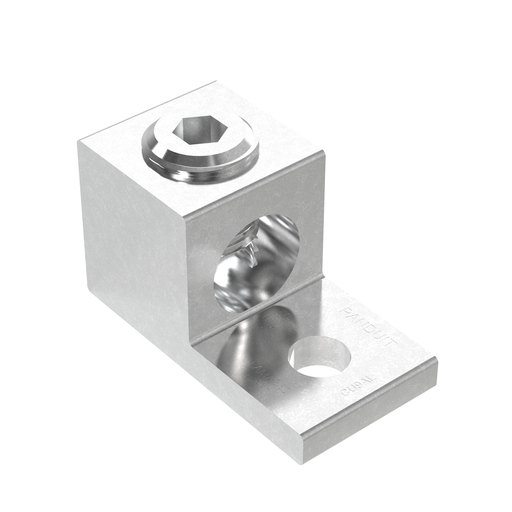

Panduit LAMA350-38-QY Mechanical Lug 6 AWG to 350 kcmil 3/8 in.

Product Description

The PANDUIT LAMA350-38-QY tin-plated aluminum mechanical lug is a one-hole, single barrel lug made from extruded aluminum alloy. It provides premium electrical and mechanical performance for wide wire range-taking capability, which helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and lug.

• Made from extruded aluminum alloy
• Provides premium electrical and mechanical performance
• Wide wire range-taking capability
• UL Listed and CSA Certified for use up to 600 V

Product Highlights

This mechanical lug is UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LAMA350-38-QY
• Country of Origin: India

Technical Specifications

• ECCN: EAR99
• UNSPSC: 39121405
• Brand: Pan-Lug
• Finish: Tin-Plated
• Standard: cULus Listed for use up to 600V & Temperature Rated to 90 C
• Application: Stranded Aluminum or Copper Code Conductor
• Material: Aluminum
• Conductor Size: 6 AWG-300 kcmil
• Hex Size: 5/16 in.
• No. of Holes: 1
• Rated Voltage: 600V
• Screw Head Type: Hex
• Stud Hole Spacing: 3/8 in.
• Lug Wire Size: 6 AWG-300 kcmil
• Length: 2.25 in.
• Height: 1.25 in.
• Width: 1.13 in.
• # of Conductors: 1
• Max Temperature: 90C
• Min Temperature: NOT SPECIFIED
• Specification(s): CSA, RoHS, UL
• Stud Size: 0.38"
• Supplier Series: LAMA
• Wire/Cable Gauge Size Max: 350MCM
• Wire/Cable Gauge Size Min: 6
