Panduit LAMA250-56-QY Mechanical Lug 250 MCM - 6 AWG Aluminum Single Barrel

Product Description

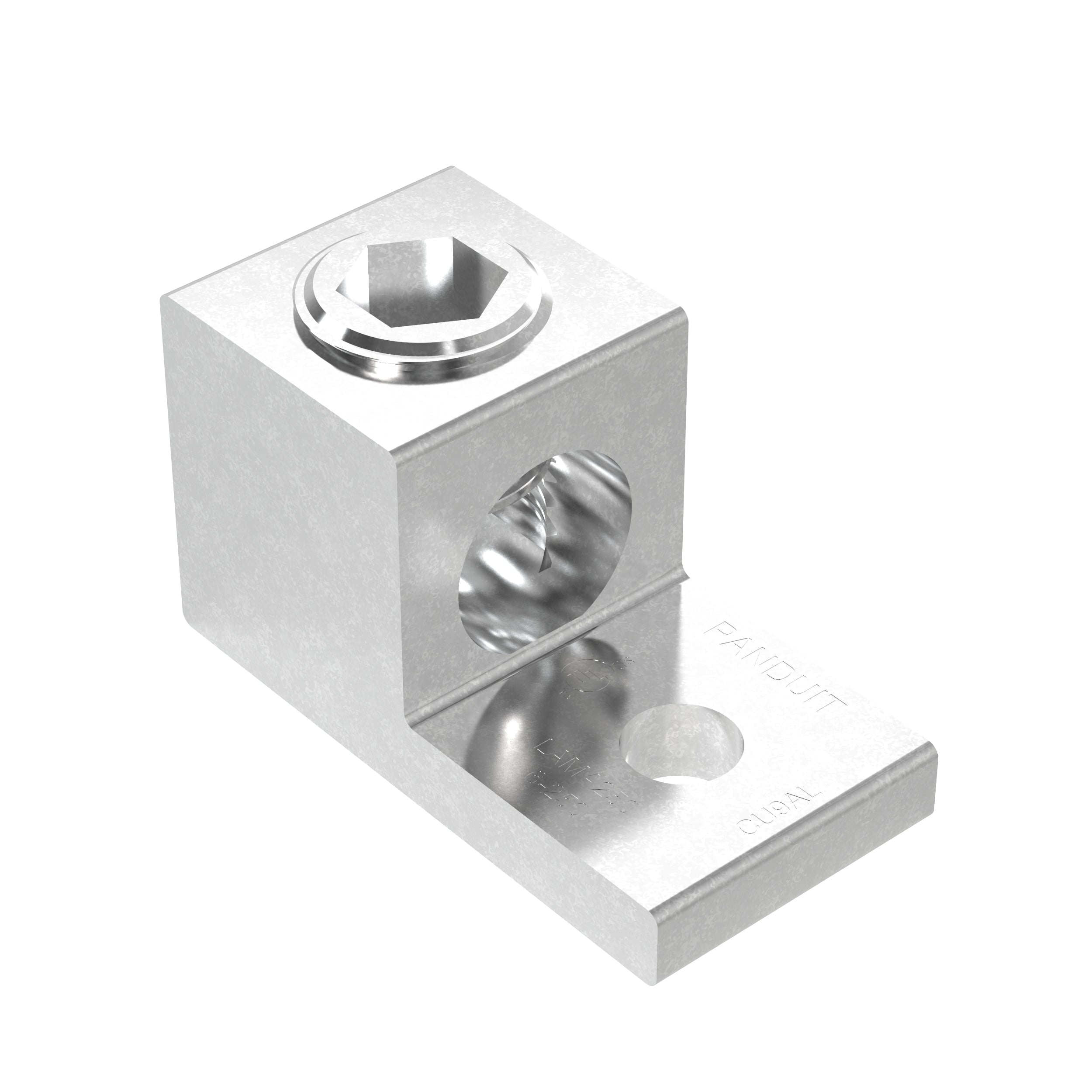

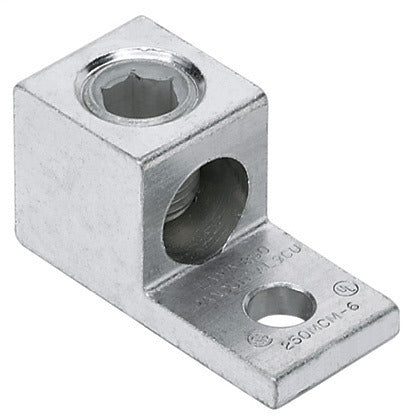

The PANDUIT LAMA250-56-QY is a mechanical lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. It accommodates a conductor size of 6 AWG to 250 kcmil and has a 5/16 in stud. Tin plated to inhibit corrosion.

• Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
• Wide wire range taking capability minimizes inventory requirements
• Inspection window to visually assure full conductor insertion

Product Highlights

The PANDUIT LAMA250-56-QY mechanical lug ensures reliable electrical connections with its durable construction and wide wire range.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LAMA250-56-QY
• Country of Origin: United States

Technical Specifications

• Application: Stranded Aluminum or Copper Code Conductors Applications
• Conductor Size: 6 AWG to 250 kcmil
• Conductor Type: Aluminum/Stranded Copper
• Finish: TiN Coated
• Manufacturer Part Number: LAMA250-56-QY
• Material: Aluminum
• Number of Bolt Holes: 1
• Series: LAMA
• Specifications: 5/16 in Hex, 1 in L Wire Strip
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant
• Stud Size: 5/16 in
• Temperature Rating: 90 deg C
• Tongue Size: 0.99 in L x 1 in W x 0.25 in THK
• Tongue Type: Straight
• Type: 1- Barrel
• Voltage Rating: 600 VAC
• Mounting Type: Free Hanging (In-Line)
• Termination: Screw
• Wire Gauge: 250MCM (kcmil) - 6 AWG
• Insulation: Non-Insulated
• Terminal Type: Lug, Grounding
• Features: With Screw
• Contact Finish: Tin
• Terminal Style: Single Stud Hole
• Contact Material: Aluminum
• Tab Thickness: 0.250" (6.35mm)
• RoHS Status: ROHS3 Compliant
• Brand: Panduit
• MPN: LAMA250-56-QY
• Country of Origin: United States
• Mounting: 1-Hole
