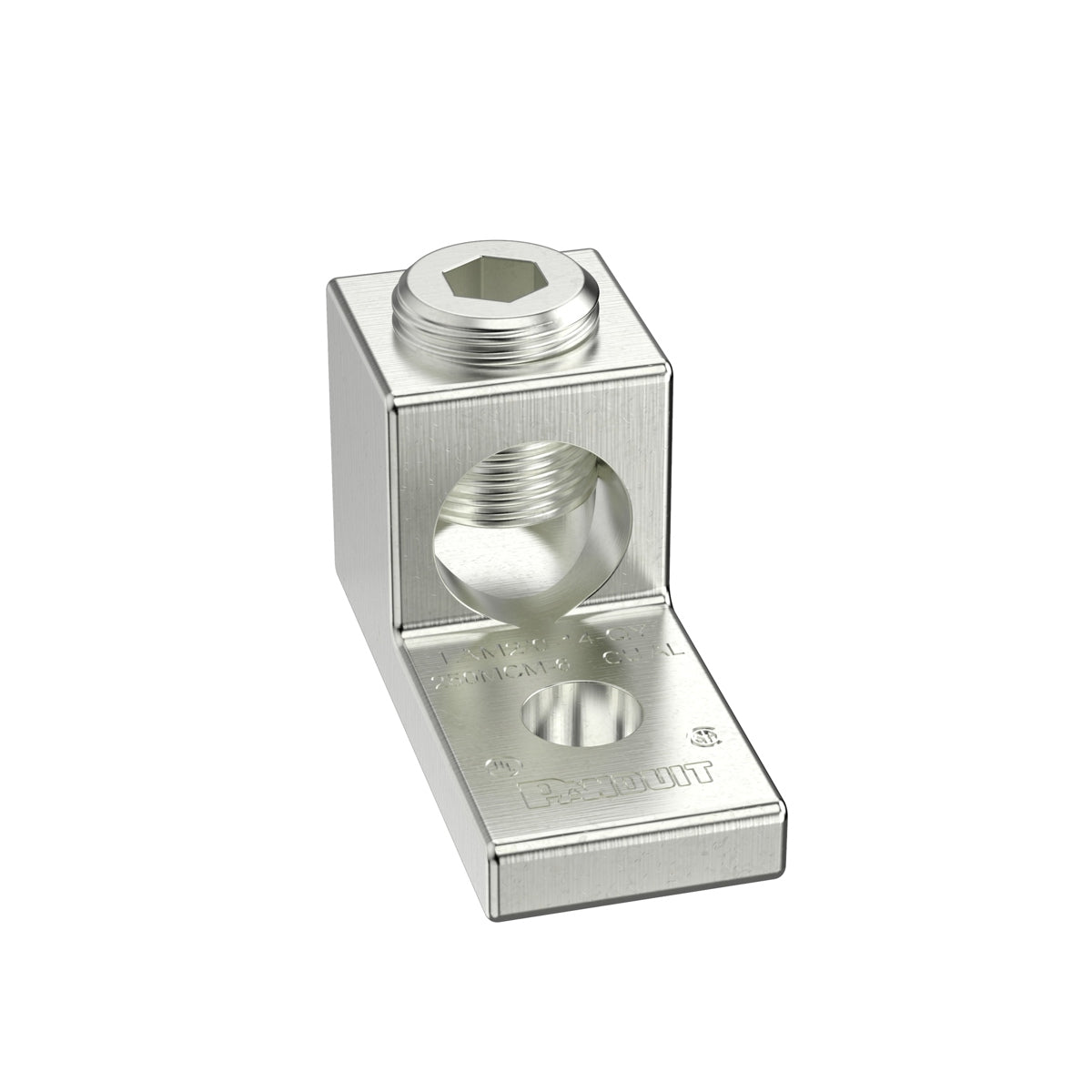

Panduit LAMA2/0-14-QY Aluminum Mechanical Lug

Product Description

Panduit LAMA2/0-14-QY is an aluminum mechanical lug designed for secure electrical connections. It is crafted from extruded aluminum alloy, which enhances both electrical and mechanical performance. This lug accommodates a wide range of wire sizes, streamlining inventory needs. It is UL Listed and CSA Certified for voltages up to six hundred volts, with a temperature rating of ninety degrees Celsius.

• Constructed from durable aluminum alloy
• Suitable for wire sizes from #2/0 to #14
• One bolt hole for easy installation

Product Highlights

The compact design provides space efficiency and an inspection window ensures secure conductor insertion.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: LAMA2/0-14-QY

Technical Specifications

• Material: Aluminum
• Voltage Rating: 600 V
• Temperature Rating: 90 °C
• Wire Size: #2/0 - #14
• Holes: 1 Hole
• Stud Size: 1/4 Inch
• Inspection Hole: No
• Catalog Number: LAMA2/0-14-QY
• UNSPSC Code: 39121400
