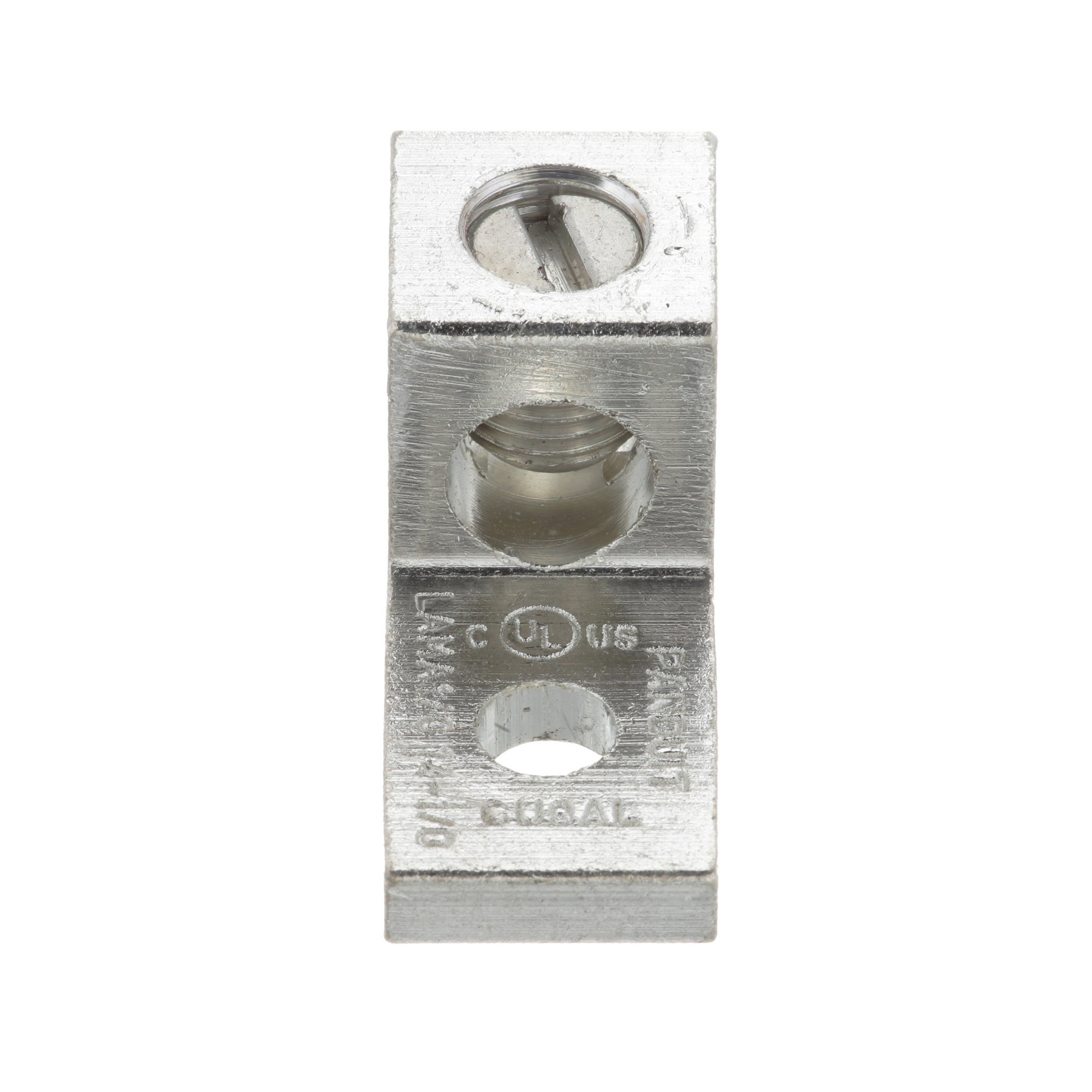

Panduit LAMA1/0-14-QY Aluminum Mechanical Lug

Product Description

The Panduit LAMA1/0-14-QY is an aluminum mechanical lug designed for secure electrical connections. It is suitable for stranded aluminum or copper conductors ranging from fourteen to one/zero American Wire Gauge (AWG). Its compact design saves space while optimizing performance and safety.

• Constructed from high-strength aluminum alloy
• UL Listed for up to 600 V and temperature rated at 90 degrees Celsius
• Features one bolt hole and is tin-plated for corrosion resistance

Product Highlights

This mechanical lug is ideal for applications needing reliable and efficient electrical connections.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: LAMA1/0-14-QY

Technical Specifications

• Material: Aluminum
• Number of Holes: One
• Stud Size: One-fourth inch
• Voltage Rating: 600 V
• Temperature Rating: 90 degrees Celsius
• Gauge Compatibility: #1/0 to #14
• Finish: Tin-plated
• Dimensions: 1.47 inches long x 0.62 inches wide x 0.79 inches high
