Panduit LAM3B250-12-1Y Pan Aluminum Mechanical Conn

Product Description

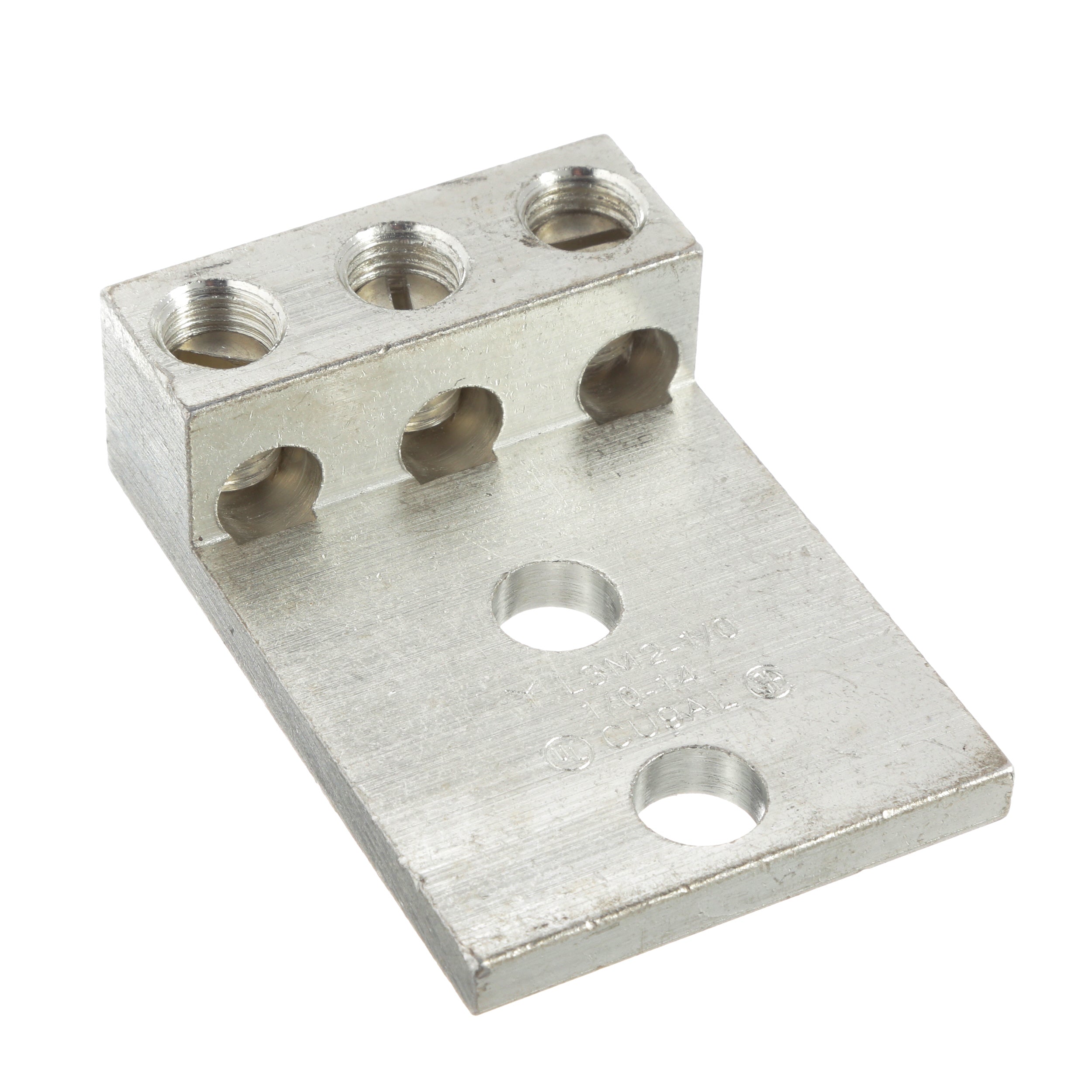

The Panduit LAM3B250-12-1Y Pan-Lug™ mechanical connector lug is made from high-strength, extruded aluminum alloy. Accommodates 6 AWG to 250 kcmil conductors and features an inspection window to visually assure full conductor insertion. The dual barrel provides termination of two conductors.

• Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
• Wide wire range-taking capability minimizes inventory requirements
• Inspection window to visually assure full conductor insertion

Product Highlights

The Panduit LAM3B250-12-1Y is suitable for use with stranded aluminum or copper code conductors.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LAM3B250-12-1Y

Technical Specifications

• Application: For stranded aluminum or copper code conductors
• Conductor Size: 6 AWG to 250 kcmil
• Conductor Type: Aluminum/Copper/Stranded
• Finish: Tin Plated
• Manufacturer Part Number: LAM3B250-12-1Y
• Material: Aluminum
• Number of Bolt Holes: 2
• Series: LAM3B
• Stud Size: 1/2 in
• Temperature Rating: 194 deg F
• Tongue Type: Straight
• Type: 3-Barrel
• Voltage Rating: 600 VAC
