Panduit LAM3B1/0-38-6Y Pan-Lug Mechanical Connector - Lug

Product Description

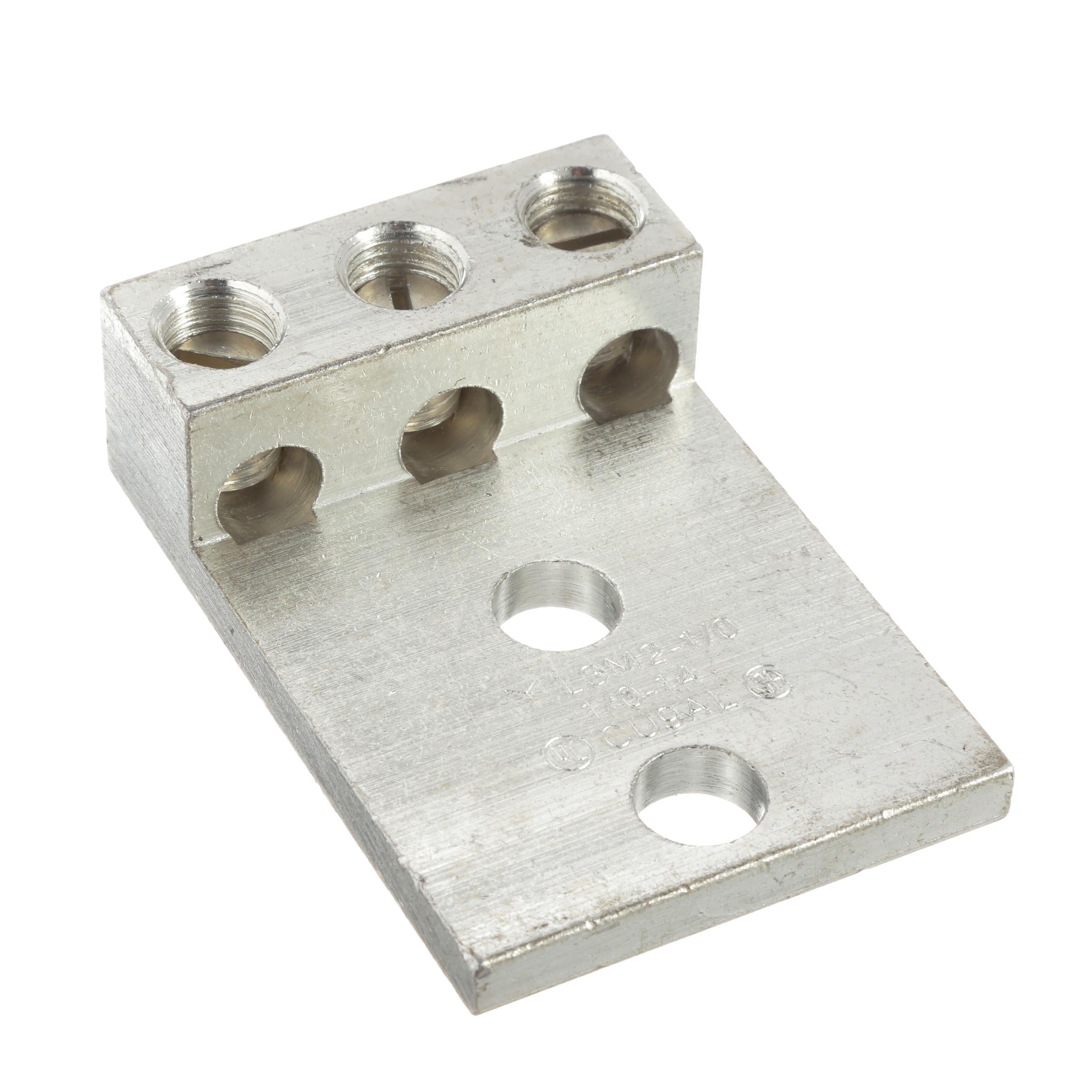

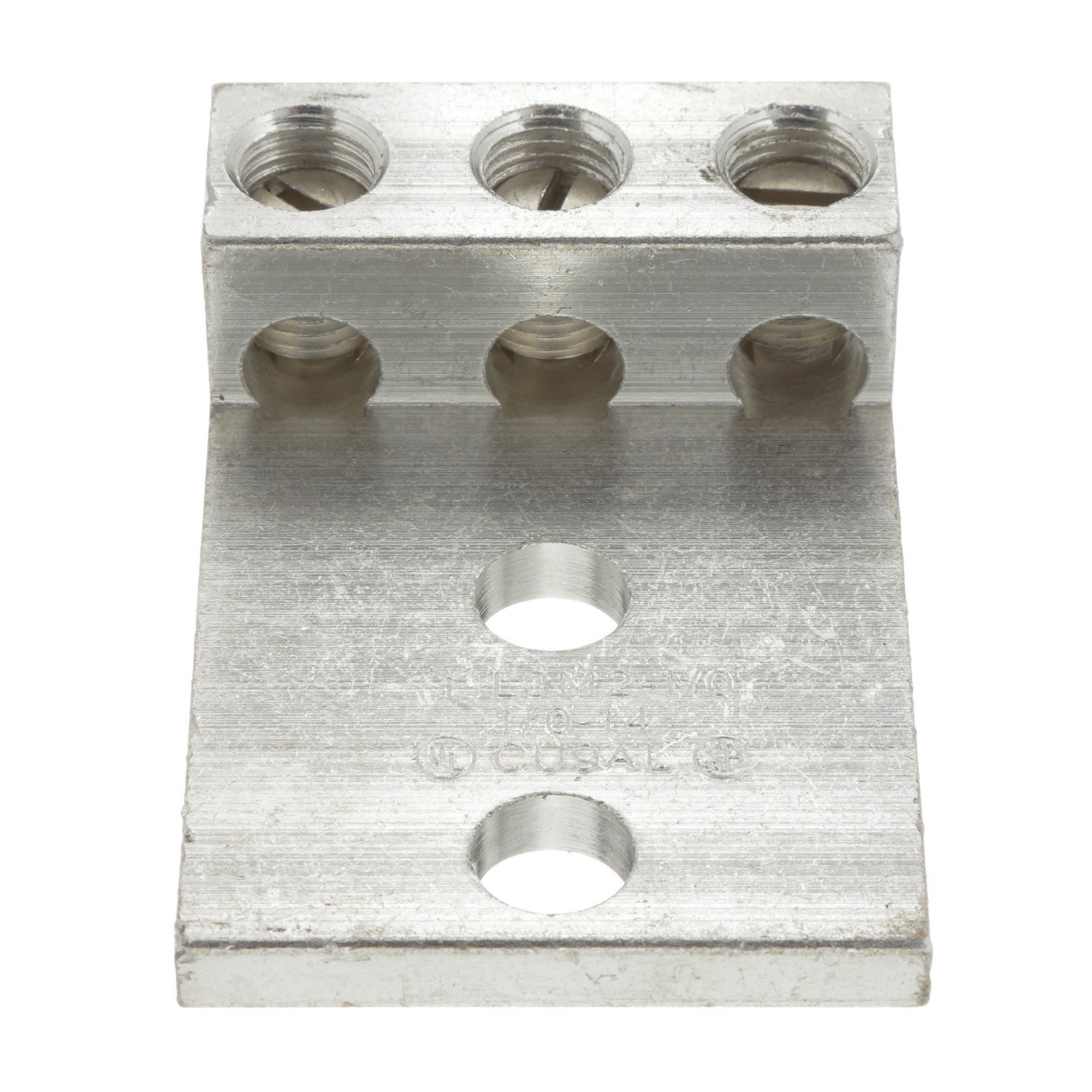

The Panduit Pan-Lug LAM3B1/0-38-6Y is an aluminum mechanical connector designed for stranded aluminum or copper conductors. This connector features a three-barrel design suitable for wire sizes between twelve and one-aught American Wire Gauge (AWG). It has a voltage rating of six hundred volts and is ideal for various electrical applications.

• Aluminum construction with tin plating
• Two bolt holes and a stud size of three-eighths inches
• NEMA hole sizes for easy installation

Product Highlights

This connector is suitable for a wide range of applications and provides reliable performance for electrical connections.

Product Information

Standard Information

• Catalog Number: LAM3B1/0-38-6Y
• Manufacturer: Panduit

Technical Specifications

• Material: Tin-Plated Aluminum
• Stud Size: 3/8 IN
• Number of Holes: 2
• Voltage Rating: 600
• Temperature Rating: 194 deg F
• Dimensions: 2.91 in L x 2 in W x 0.88 in H
• Tongue Size: 2.16 in L x 2 in W x 0.25 in THK
