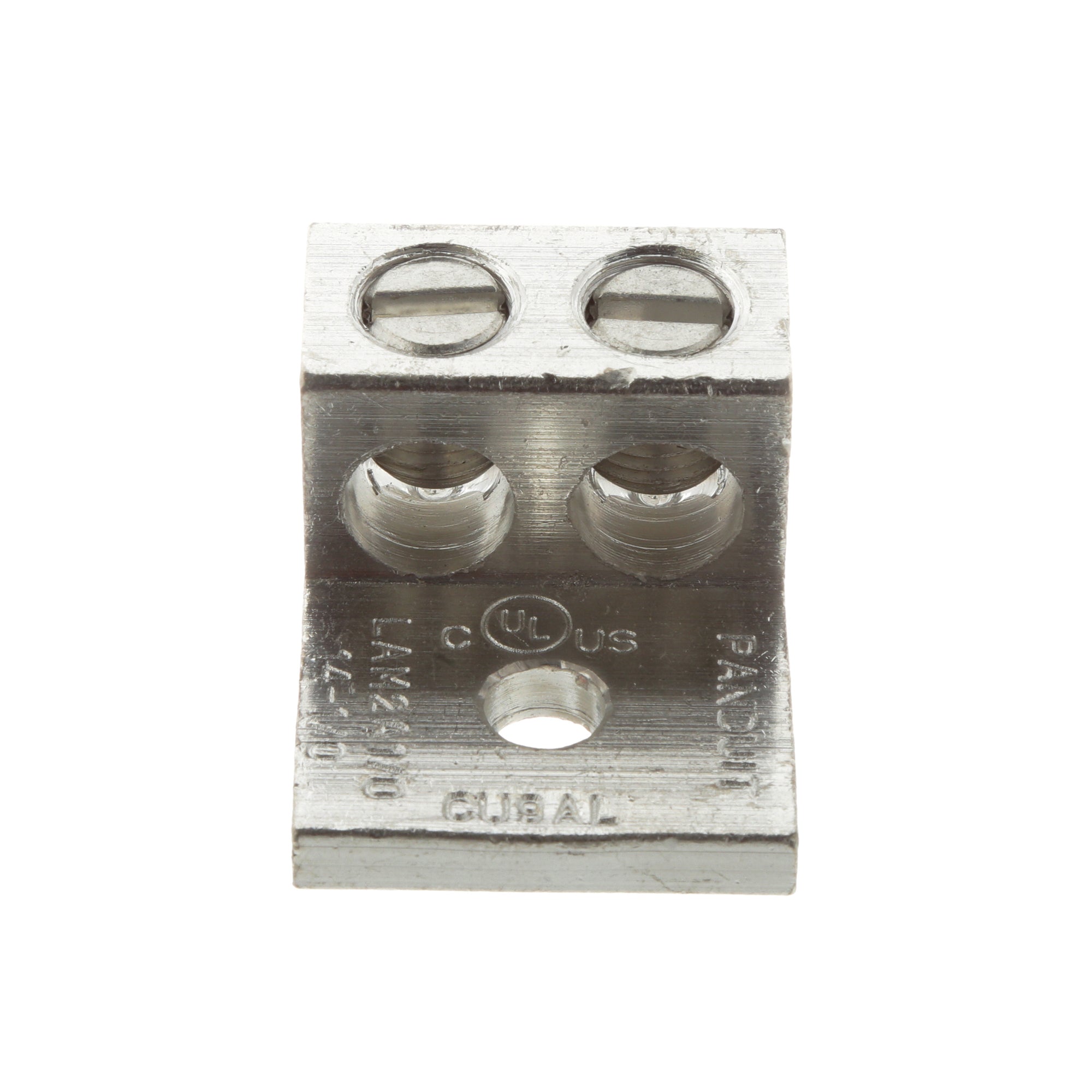

Panduit LAM2A1/0-14-6Y Aluminum Mechanical Lug

Product Description

Panduit LAM2A1/0-14-6Y is an aluminum mechanical lug designed for effective conductor termination. This dual-barrel, one-hole connector allows for the termination of two conductors, ensuring a secure connection. The high-strength aluminum alloy construction provides reliable electrical and mechanical performance. Key features include:

• Wide wire range capability allows for reduced inventory requirements.
• Tin plating prevents corrosion, enhancing durability.
• Inspection window for ensuring proper conductor insertion.

Product Highlights

This mechanical lug is UL Listed and CSA Certified for use up to six hundred volts and rated for ninety degrees Celsius. It fits stranded aluminum or copper code conductors, making it ideal for various electrical applications.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: LAM2A1/0-14-6Y

Technical Specifications

• Stud Size: 1/4 inch
• Number of Holes: 1
• Material: Aluminum
• Voltage Rating: 600 VAC
• Temperature Rating: 90 degrees Celsius
• Conductor Size: 14 to 1/0 AWG
• Type: Mechanical Lug
