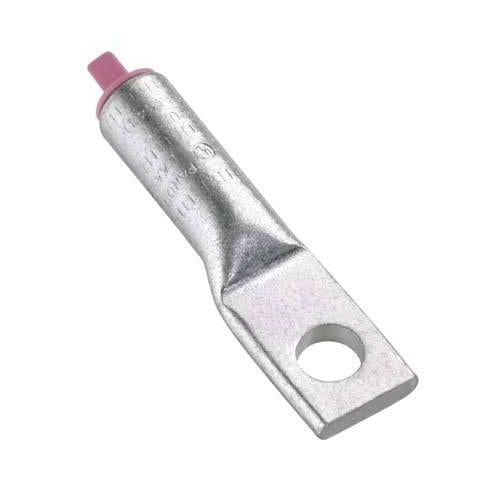

Panduit LAA2-56-X Pan-Lug Aluminum Compression Connector 1-Hole

Product Description

The Panduit LAA2-56-X is an aluminum compression connector designed for reliable electrical connections. This compression lug is suitable for use with stranded aluminum or copper conductors, making it ideal for various electrical applications.

• One-hole design for easy installation
• Compatible with #2 AWG stranded aluminum/copper conductors
• Rated for 35 kV voltage applications

Product Highlights

This product meets NEBS level 3 requirements ensuring high performance for critical applications. The compression lug is designed to lower installation costs while providing a permanent solution for securing connections.

Product Information

Standard Information

• Manufacturer: Panduit
• Series: LLA

Technical Specifications

• Catalog Number: LAA2-56-X
• Material: Aluminum
• Barrel Size: 0.31 in ID x 0.53 in OD x 0.98 in L
• Overall Length: 2.63 in
• Tongue Size: 1.12 in L x 0.79 in W x 0.17 in THK
• Temperature Rating: 90 deg C
• Mounting Hole Size: 1 in
• Stud Size: 5/16 in
• UPC: 074983910151
