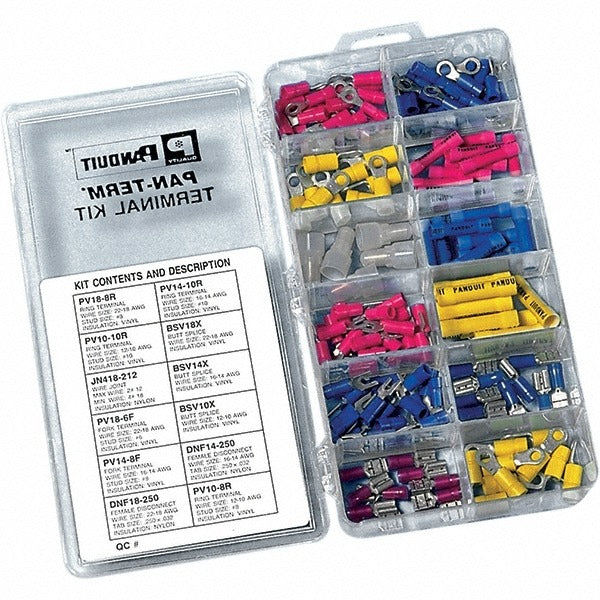

Panduit KP-1075Y Terminal Kit 161 Piece 10-22 Awg

Product Description

The PANDUIT KP-1075Y is a 161-piece terminal kit designed for electricians and maintenance technicians working with wire sizes ranging from 10 to 22 AWG. The kit consolidates a broad assortment of ring terminals, flag terminals, and butt splices into a single package, reducing the need to stock multiple individual SKUs. Each terminal type is selected to cover common termination tasks in control panels, panel boards, and general electrical wiring applications. The kit ships as a single package unit and is well-suited for service vans, MRO stocking, or bench use in production environments.

The KP-1075Y is appropriate for residential and light commercial electrical work, as well as industrial panel wiring and equipment servicing. It covers a wide wire gauge range, making it a practical all-in-one resource for technicians who regularly work across multiple conductor sizes. The kit includes ring terminals and insulated connectors appropriate for both low-voltage control wiring and standard branch circuit terminations within the supported AWG range.

Key Features

• 161 total pieces covering 10 to 22 AWG wire sizes
• Includes (10) each of JN418-212, PV10-8R, PV10-10R, DNF14-250, DNF18-250, BSV18X, BSV14X, and BSV10X terminals
• Includes (20) each of PV18-8R, PV18-6F, PV14-8F, and PV14-10R terminals
• Assorted terminal types address ring, flag, and splice termination needs in one kit
• Compact kit dimensions suit toolbox or van storage

Compatibility

Designed for use with copper conductors ranging from 10 to 22 AWG. Specific terminal part numbers included in this kit are PANDUIT JN418-212, PV10-8R, PV10-10R, DNF14-250, DNF18-250, BSV18X, BSV14X, BSV10X, PV18-8R, PV18-6F, PV14-8F, and PV14-10R.

Installation Notes

Terminal installation should be performed by a qualified electrician following applicable NEC requirements. De-energize and lock out circuits before terminating or inspecting any conductors. Use a calibrated crimping tool sized for the specific terminal and wire gauge being terminated to ensure proper electrical contact and mechanical retention. Do not exceed the maximum or minimum AWG ratings for any individual terminal included in this kit.
