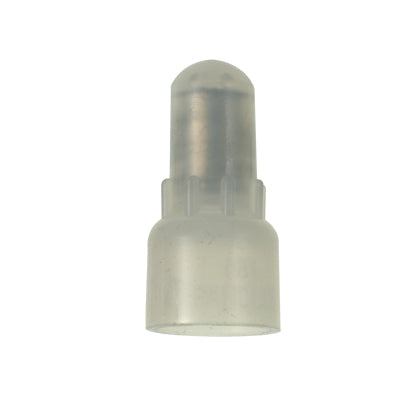

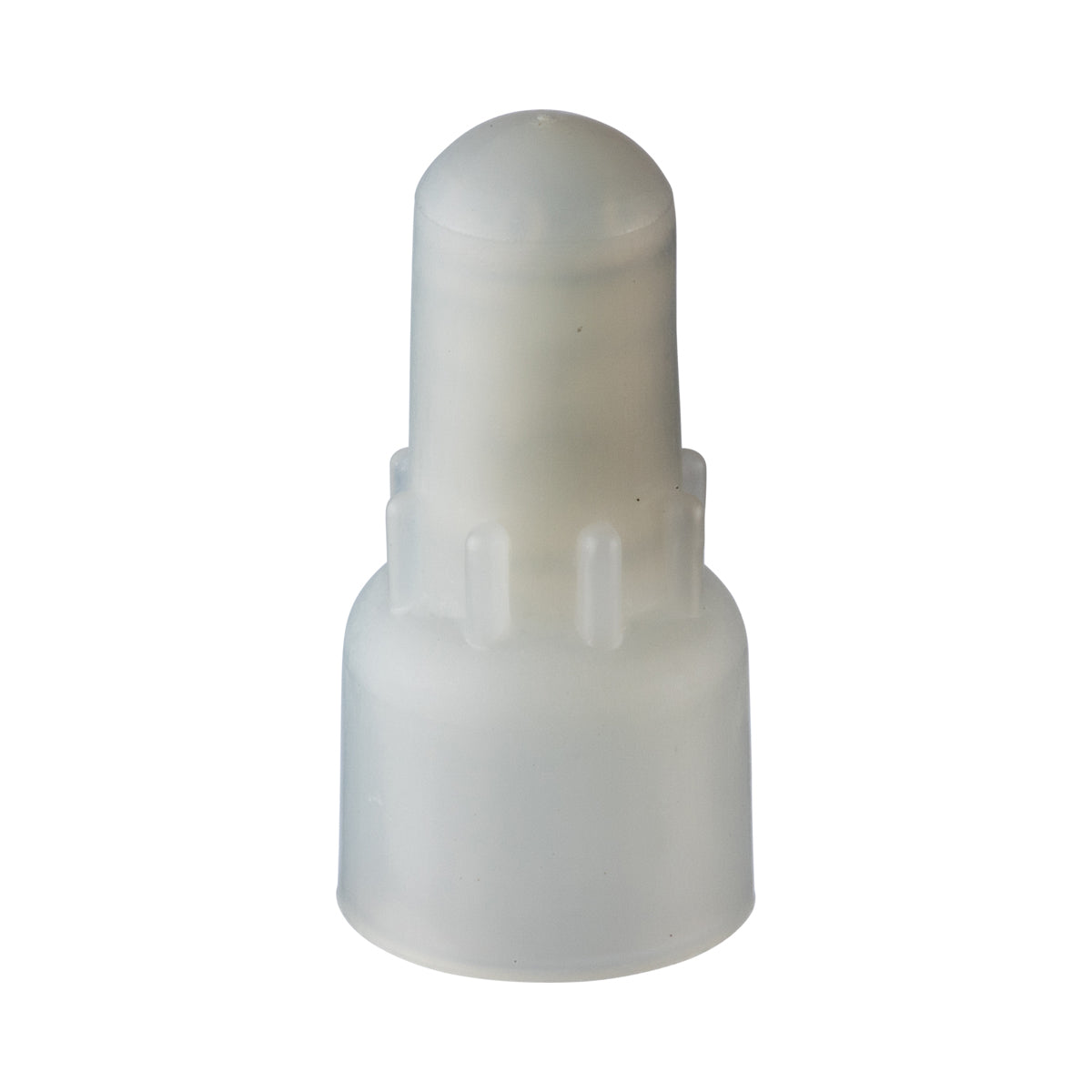

Panduit JN418-212-C Wire Joint, Nylon Insulated, (4) #18 - (2) #12 AWG (100-Pack)

Product Description

Panduit JN418-212-C is a wire joint designed for insulation and reliable connectivity. This product supports wire sizes from twelve to eighteen AWG and comes packaged in a quantity of one hundred.

• Constructed from clear nylon and brass materials.
• Rated for voltage up to six hundred volts (VAC).
• Temperature withstand of up to two hundred twenty-one degrees Fahrenheit (one hundred five degrees Celsius).

Product Highlights

Offering a durable solution for electrical connections, this wire joint is suitable for various applications requiring reliable wire terminations.

Product Information

Standard Information

• Catalog Number: JN418-212-C
• Manufacturer: Panduit

Technical Specifications

• Material: Brass
• Finish: Tin-Plated
• Insulation: Nylon
• Wire Size: (4) 18 AWG - (2) 12 AWG
• Voltage Rating: 600 VAC
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Standards: UL486C, CSA C22.2 No 65
• Country of Origin: Mexico
