Product Description

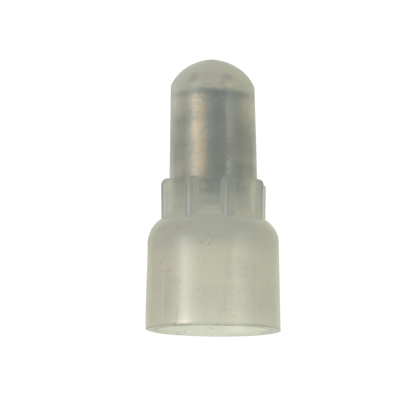

The Panduit JN418-212-C is a nylon insulated wire joint designed to accommodate multiple wire sizes in varying combinations with just one crimp. The barrel of terminal is internally beveled to provide quick and easy wire insertion. This wire joint is tin-plated and suitable for use with CT-100, CT-1550, CT-1551, CT-2500/L (CT-2550CH) crimping tools.
- Nylon insulated wire joint
- Accommodates multiple wire sizes in varying combinations with just one crimp
- Barrel of terminal internally beveled to provide quick and easy wire insertion
Product Highlights
The Panduit JN418-212-C wire joint features nylon insulation and a beveled barrel for easy wire insertion. It supports wire sizes from 12-18 AWG and is designed for secure crimp connections.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: JN418-212-C
-
Country of Origin: Unknown
Technical Specifications
-
Type: Wire Joint
-
Color: Clear
-
Finish: Tin-Plated
-
Material: Brass
-
Standard: UL486C; CSA C22.2 No 65
-
Wire Size: (4) 18 AWG - (2) 12 AWG
-
Insulation: Nylon
-
Manufacturer: PANDUIT
-
Voltage Rating: 600
-
Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
-
Category: Connectors, Interconnects
-
Terminals: Wire Splice Connectors
-
Number of Wire Entries: 1
-
Termination: Crimp
-
Series: Pan-Term
-
Wire Gauge: 12-18 AWG
-
Terminal Type: Butt Splice, Closed End, Single Opening
-
Brand: Pan-Term
-
Use With: CT-100, CT-1550, CT-1551, CT-2500/L (CT-2550CH)
-
Conductor Size: 18-10 AWG
-
Inner Diameter: 0.165 in.
-
Rated Voltage: 600V
-
Lug Wire Size: 18-10 AWG
-
Color Family: Clear
-
Length: 0.93 in.
-
Max. Temperature Rating: 221
F
-
AWG Size: 18-10 AWG
