Panduit JBP1WH Surface Raceway, Power Rated Junction Box, 1-Gang, 2-Piece, White

Product Description

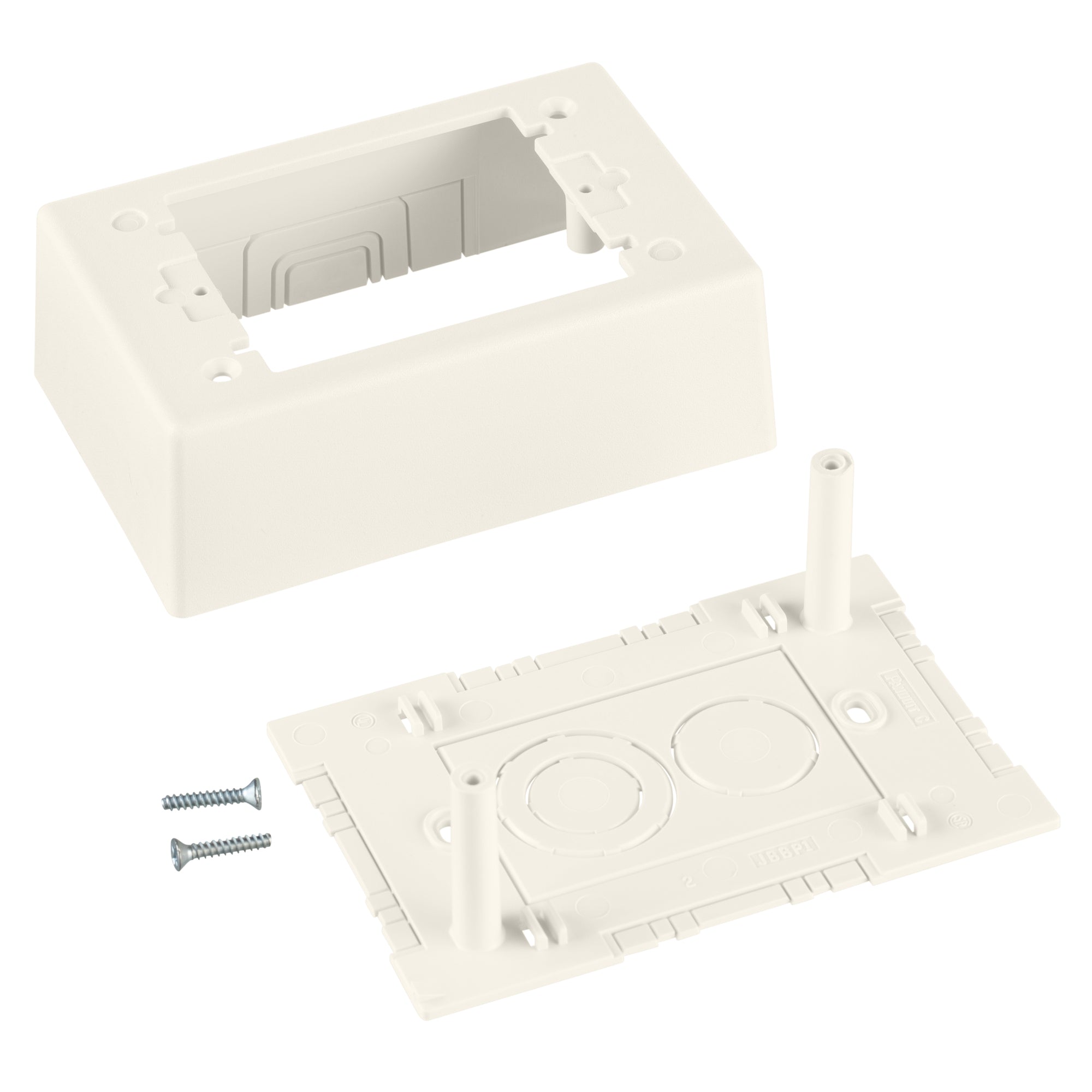

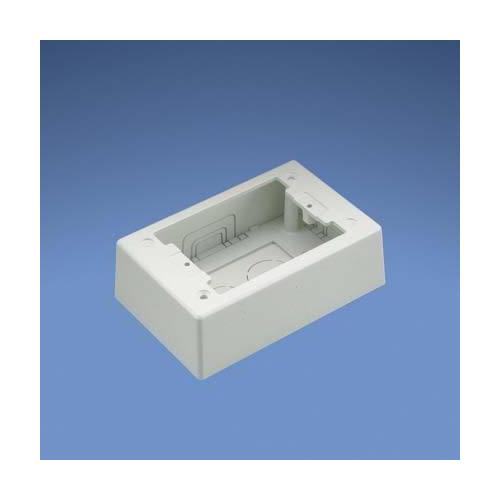

The Panduit JBP1WH is a power-rated outlet box designed for use in raceway systems. It features a single gang, two-piece construction that easily screws together for installation. The junction box is compatible with Pan-Way screw-on faceplates and any NEMA standard single gang faceplate.

This box can be integrated with Pan-Way LD profile raceway for effective electrical management. The dimensions of the box are five point nineteen inches in length, three point forty-five inches in width, and one point seventy-five inches in height. It offers breakouts for half-inch, three-quarter-inch, or one-inch diameter conduit.

• Power-rated single gang outlet box
• Two-piece construction for easy assembly
• Compatible with multiple faceplate types

Product Highlights

This junction box allows for flexible electrical installation options while maintaining compliance with industry standards.

Product Information

Standard Information

• Catalog Number: JBP1WH
• Manufacturer: Panduit

Technical Specifications

• Material: PVC
• Length: 5.19 inches
• Width: 3.45 inches
• Height: 1.75 inches
• Mounting Type: Threaded
• Suitable For Use With: Pan-Way LD Series Surface Raceway
• Standards: RoHS Compliant
• Country of Origin: United States
