Product Description

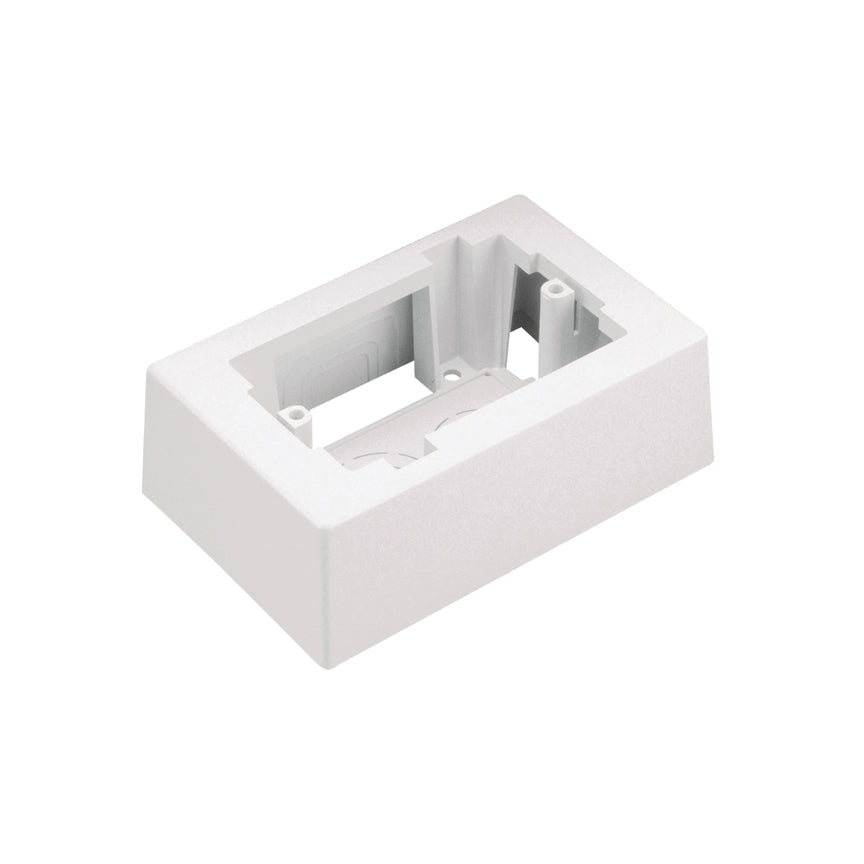

Panduit JB1IW-A is a surface raceway low voltage junction box. This one-gang box is specifically designed for low voltage applications and integrates seamlessly with the Pan-Way LD profile raceway. The box features breakouts to accommodate one half-inch, three-fourths inch, or one-inch diameter conduit. An adhesive backing simplifies installation.
- Rated for low voltage applications
- Compatible with Pan-Way Screw-On Faceplates and NEMA standard faceplates
- Adhesive backing for easy installation
Product Highlights
This junction box is ideal for adding low voltage access points where needed. Its design supports various mounting needs and maintains compliance with industry standards.
Product Information
Standard Information
-
Catalog Number: JB1IW-A
-
Manufacturer: Panduit
Technical Specifications
-
Length: 5.09 inches
-
Width: 3.34 inches
-
Height: 1.75 inches
-
Material: ABS
-
Country of Origin: United States
-
Application: Single Gang One-Piece Outlet Box
-
Standard: RoHS Compliant
-
UPC: 074983582853
