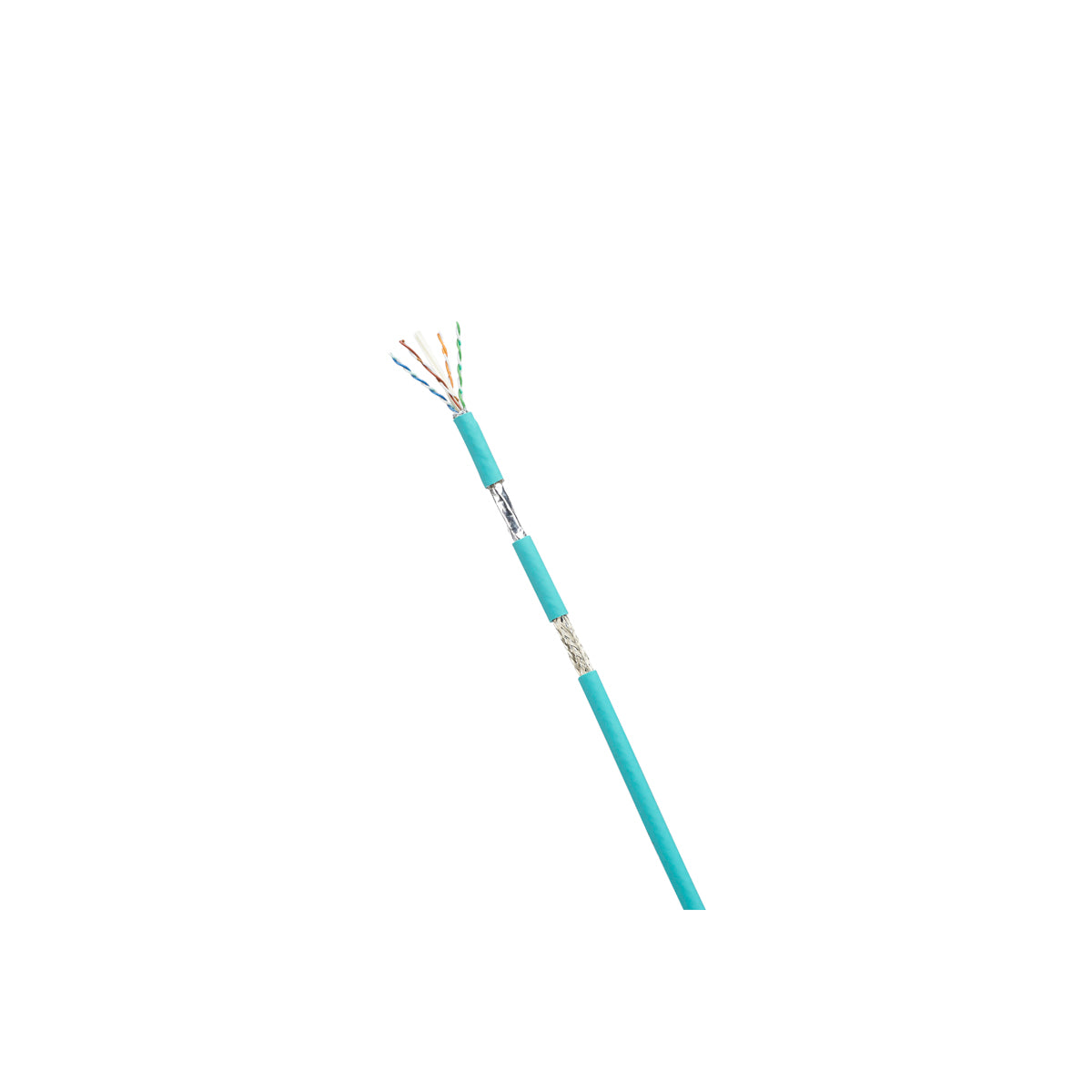

Panduit ISFCH6X04ATL-UG Copper Cable, Cat 6A, 4-Pair, 24/7 AWG, SF/UTP, CM

Product Description

The Panduit ISFCH6X04ATL-UG is a Cat 6A SF/UTP copper cable. It features four pairs of stranded copper conductors with HDPE polyethylene insulation. Each conductor pair is twisted and wrapped for stability and performance. The overall design includes a braided shield and metallic foil for enhanced protection. The cable is available in a length of three hundred and five meters, or one thousand feet.

• Constructed from 24/7 AWG stranded copper conductors
• Cable includes high-density polyethylene insulation
• Utilizes a thermoplastic elastomer jacket

Product Highlights

This copper cable is suitable for data transmission and meets rigorous standards.

Product Information

Standard Information

• Manufacturer: Panduit
• Catalog Number: ISFCH6X04ATL-UG

Technical Specifications

• Conductor Material: Copper
• Insulation Material: High-Density Polyethylene
• Jacket Material: Thermoplastic Elastomer
• Number of Conductors: 4
• Outside Diameter: 0.32 inches
• Temperature Rating: 176 °F
• Voltage Rating: 80
• Standard: Exceeds IEC 61156-6 Category 6A, ANSI/TIA-568-C.2 Category 6A
