Panduit IAEBHC5E IndustrialNet Plug/Plug

Product Description

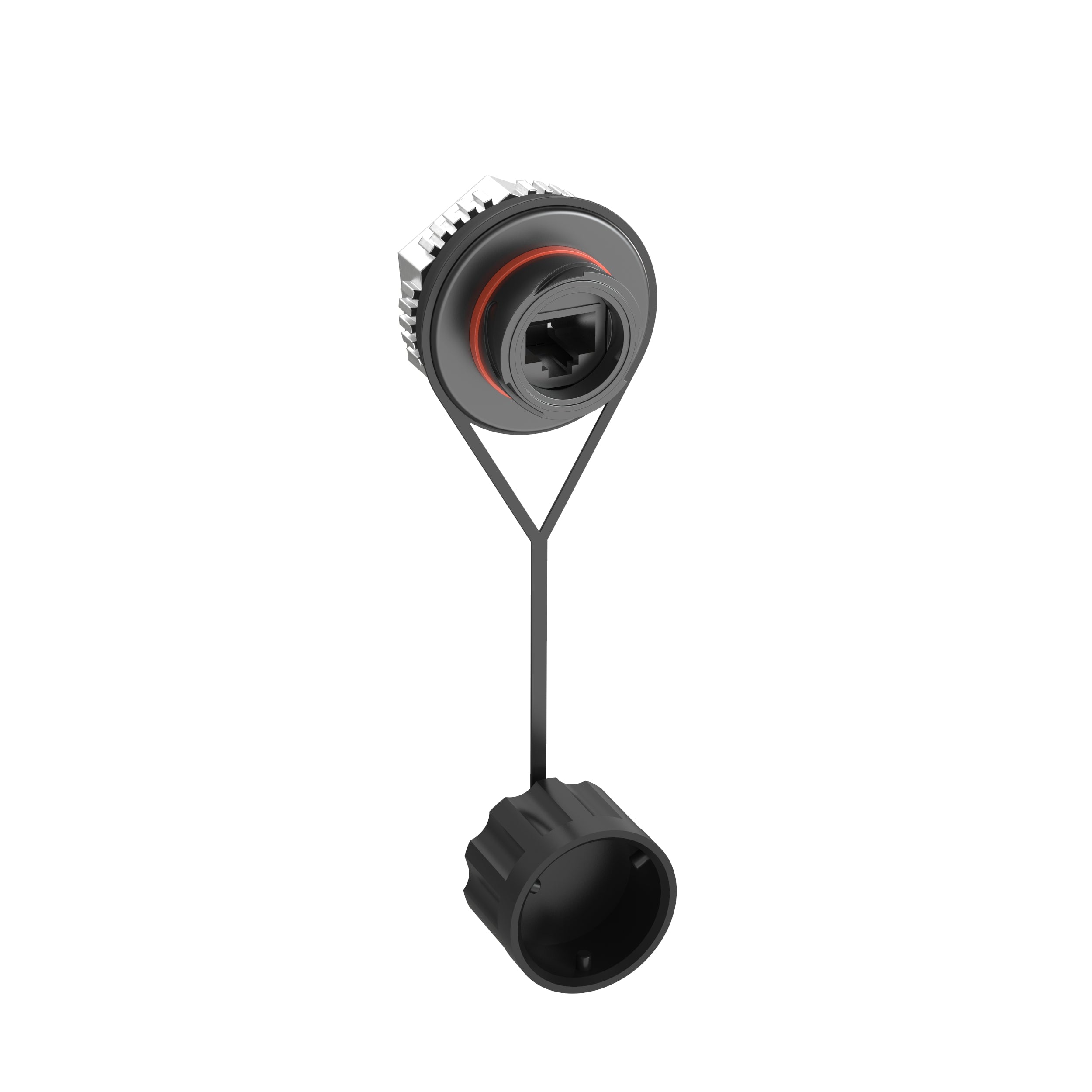

Panduit IndustrialNet IAEBHC5E is an 8-pole, 8-wire unshielded bulkhead coupler module. This product is designed for use in various applications including metal processing and chemical batch processing. It is compliant with industry standards and ideal for harsh environments.

• Compatible with Cat 5e standards.
• Provides IP67 rated protection against dust and water.
• Connector mounting nut secures bulkhead inside the enclosure.

Product Highlights

This bulkhead coupler module features rugged construction for reliability in demanding settings. It is designed to simplify installations while ensuring long-term performance.

Product Information

Standard Information

• Brand: Panduit
• MPN: IAEBHC5E

Technical Specifications

• Application: Metal processing, Welding, and Chemical batch processing
• Color: Black
• Dimensions: 1.55 inches W x 1.32 inches D x 5.33 inches H
• Material: Copper
• Module Type: Cat 5e coupler RJ45/UTP jack
• Standards/Approvals: ANSI/IEC 60529-2004, ANSI/TIA 568-C.2, FCC certified, RoHS compliant
• Type: 8-pole 8-wire TG style unshielded
