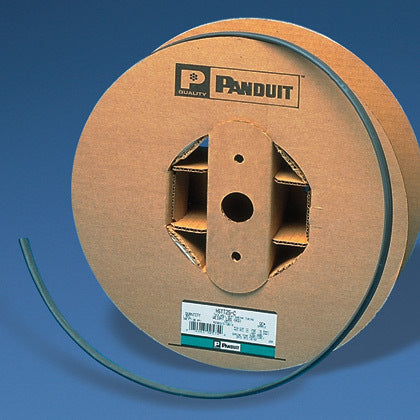

Panduit HSTTV38-C PAN HEAT SHRINK 100 FT BLK

Product Description

Panduit HSTTV38-C is a dry-shrink heat shrink tubing reel. This product is designed for use in dry locations and is effective in insulating and protecting wires and cables. It features a VW-1 cross linked flame-retardant design that meets various safety and performance standards.

• 700 VAC voltage rating
• 2:1 shrink ratio
• Temperature range from -67 to 275 degrees Fahrenheit

Product Highlights

This tubing is ideal for electrical insulation and color coding. It is flame retardant and offers strong protection against various environmental conditions.

Product Information

Standard Information

• Manufacturer: Panduit
• Material: Polyolefin

Technical Specifications

• Type: VW-1 Cross Linked Flame-Retardant
• Inner Diameter Expanded: 3/8 inches
• Inner Diameter Recovered: 0.187 inches
• Length: 100 feet
• Shrink Ratio: 2:1
• Shrink Temperature: 194 degrees Fahrenheit
• Wall Thickness Recovered: 0.025 inches
• Standards/Approvals: UL 224, CSA Certified, RoHS Compliant
