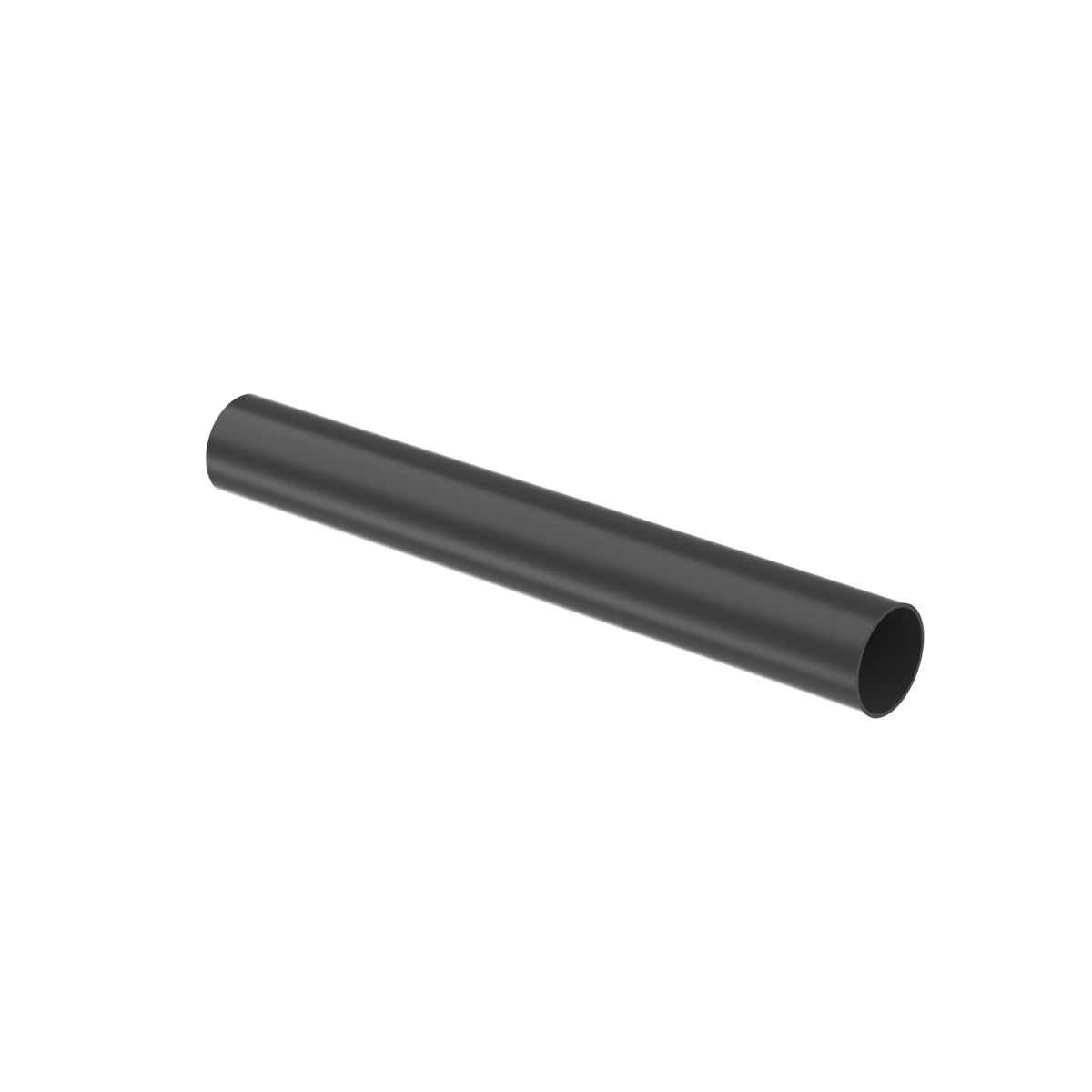

Panduit HSTT75-48-5 Dry-Shrink Heatshrink, Black, PO, 4 ft L, 0.75 to 0.375 ID, PK5

Product Description

The Panduit HSTT75-48-5 is a Thin Wall Heat Shrink Tubing designed to shrink around wires, connectors, joints, and terminals when heated for protection against abrasion. It is suitable for indoor use in dry locations, providing effective insulation and protection for wires and cables.

• Shrink Ratio: 2:1
• Temperature Range: -67F to 275F
• Material: Flame retardant, cross-linked polyolefin

Product Highlights

This heat shrink tubing is ideal for insulating and protecting electrical connections in various applications.

Product Information

Standard Information

• Catalog Number: HSTT75-48-5
• Manufacturer: Panduit

Technical Specifications

• Color: Black
• Inner Diameter Expanded: 0.75 inches
• Inner Diameter Recovered: 0.375 inches
• Length: 4 feet
• Wall Thickness Recovered: 0.03 inches
• Voltage Rating: 600 VAC
• Shrink Temperature: 194F
• Temperature Rating: 275F
• Application: For dry locations, insulating and protecting wires and cables
