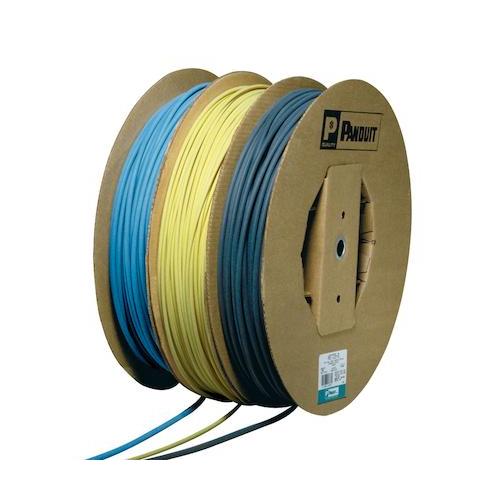

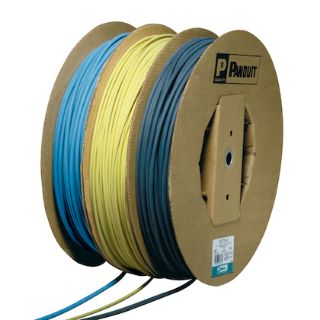

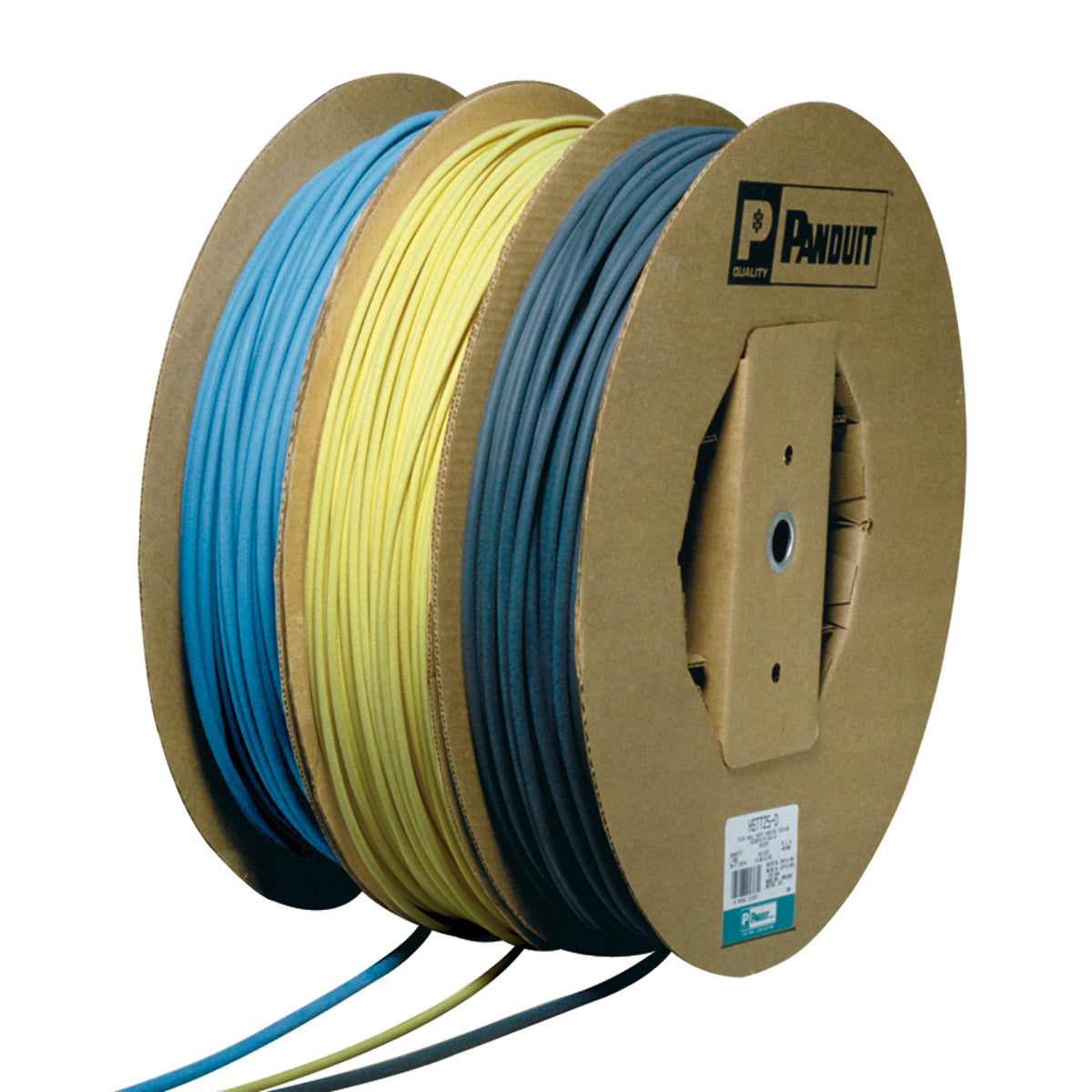

Panduit HSTT25-CC PAN Heat Shrink 100 ft

Product Description

Panduit HSTT25-CC is a heat shrink tubing designed for wire and cable insulation. This product has a one-fourth inch inner diameter when expanded and one-eighth inch when recovered. It has a wall thickness of zero point zero two five inches when recovered and a total length of one hundred feet. The tubing is made from clear polyolefin material and meets 600 VAC voltage ratings. This product is suitable for applications requiring insulation and protection in dry locations.

• Flexible and resistant to UV light.
• Offers a 2:1 shrink ratio for secure fit.
• Temperature rated from minus sixty-seven to two hundred seventy-five degrees Fahrenheit.

Product Highlights

This heat shrink tubing serves as a protective cover for wires, offering color coding and insulation.

Product Information

Standard Information

• Brand: Panduit
• Manufacturer Part Number: HSTT25-CC

Technical Specifications

• Series: HSTT
• Material: Polyolefin
• Color: Clear
• Voltage Rating: 600 VAC
• Shrink Ratio: 2:1
• Length: 100 ft
• Inner Diameter Expanded: 1/4 in
• Inner Diameter Recovered: 1/8 in
• Wall Thickness Recovered: 0.025 in
• Shrink Temperature: 194 deg F
• Temperature Rating: -67 to 275 deg F
• Application: For dry locations
