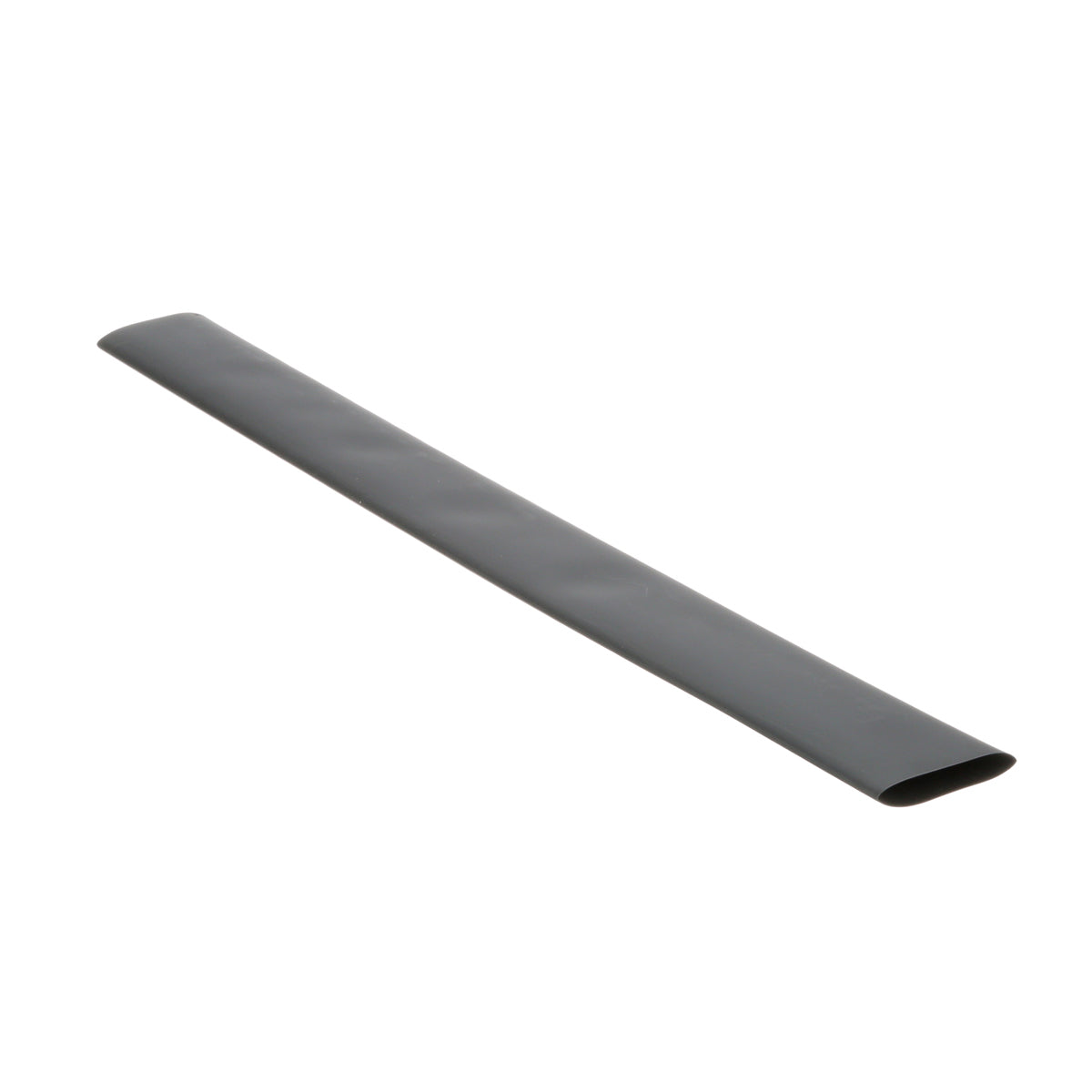

Panduit HSTT150-48-5 Dry-Shrink HSTT150-48-5 Heatshrink, Black, PO, 4' L, 1.5 to 0.75 ID, PK5

Product Description

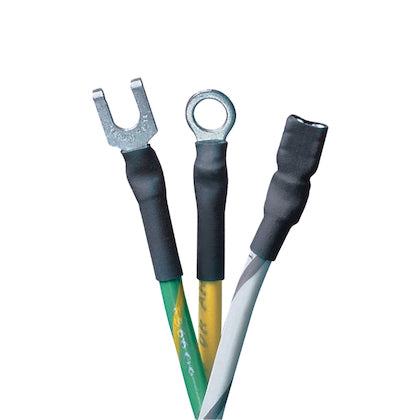

Panduit HSTT150-48-5 is a heat shrink tubing designed to provide insulation and protection for wires, connectors, joints, and terminals. This tubing shrinks around the application when heated, offering excellent abrasion protection. It is suitable for indoor, dry locations, and can withstand temperatures ranging from negative sixty-seven degrees Fahrenheit to two hundred seventy-five degrees Fahrenheit.

• Shrink ratio of 2:1
• Inside diameter of zero point seventy-five inches post-recovery
• Four feet in length, packed five per package

Product Highlights

This product features cross-linked polyolefin material that ensures strong protection against wear and environmental factors.

Product Information

Standard Information

• Product Type: Heat Shrink Tubing
• Brand: Panduit

Technical Specifications

• Catalog Number: HSTT150-48-5
• Application: For dry locations, insulating and protecting wires and cables
• Color: Black
• Thickness: 0.04 inches
• Inner Diameter: 0.75 inches recovered, 1.5 inches expanded
• Length: 4 feet
• Shrink Temperature: 194 degrees Fahrenheit
• Temperature Rating: 275 degrees Fahrenheit
• Voltage Rating: 600 VAC
• Standards/Approvals: UL E122770; Mil Spec AMS-DTL-23053/5 Class 1
