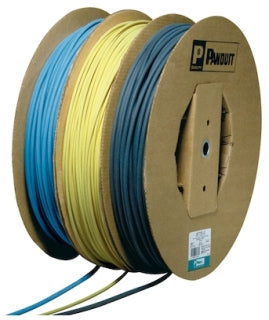

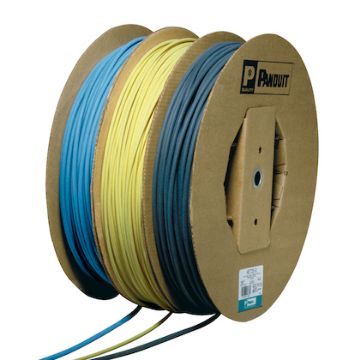

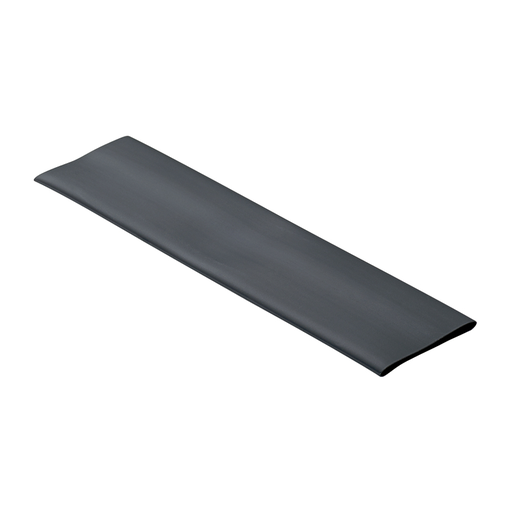

Panduit HSTT100-C Heat Shrink Tubing Cross Linked Standard 1 in ID Expanded 100 ft Length

Product Description

Panduit HSTT100-C is a cross linked standard heat shrink tubing designed for protecting wires and cables. This product features an expanded inner diameter of one inch and recovers to half an inch. With a length of one hundred feet and a wall thickness of zero point zero thirty-five inches, it provides a reliable insulating layer in various applications. The tubing is made from polyolefin, suitable for use in dry locations, and operates within a temperature range of negative sixty-seven to two hundred seventy-five degrees Fahrenheit.

• Voltage rating: 600 VAC
• Two-to-one shrink ratio
• Flame-retardant and UV-resistant

Product Highlights

This heat shrink tubing offers excellent abrasion protection while also providing color coding options for better organization in your wiring projects.

Product Information

Standard Information

• Brand: Panduit
• Manufacturer Part Number: HSTT100-C

Technical Specifications

• Material: Polyolefin
• Inner Diameter Expanded: 1 in
• Inner Diameter Recovered: 1/2 in
• Wall Thickness Recovered: 0.035 in
• Shrink Ratio: 2:1
• Length: 100 ft
• Temperature Rating: -67 to 275 F
• Shrink Temperature: 194 F
• Standards: AMS-DTL-23053/5 Class 1, UL File No. E122770 Recognized
