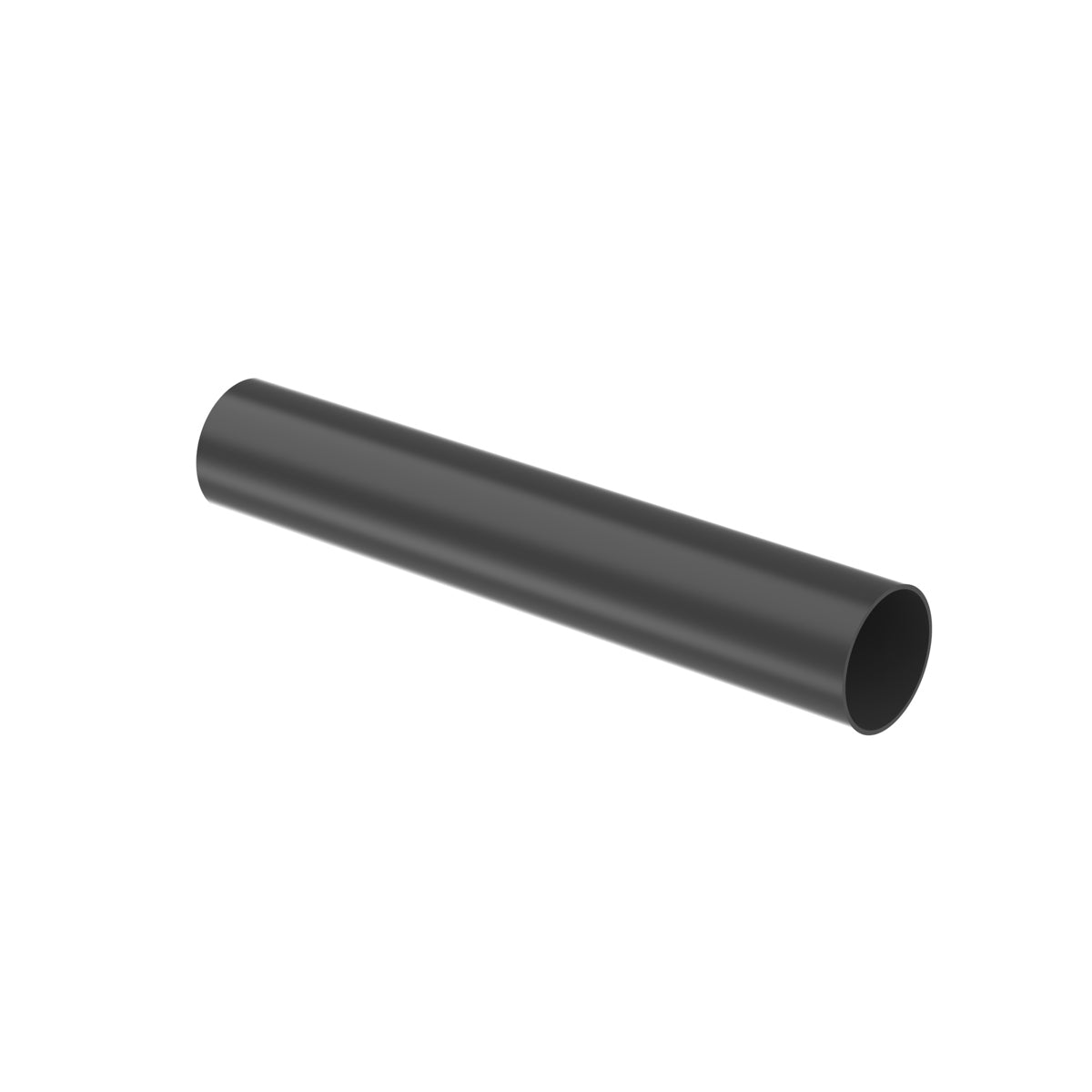

Panduit HSTT100-48-5 Dry-Shrink HSTT Cross Linked Standard Heat Shrink Tubing, 4 ft

Product Description

The Panduit HSTT100-48-5 Dry-Shrink Heat Shrink Tubing provides protection for wires, connectors, joints, and terminals upon heating. The heat shrink tubing is designed for indoor applications, ensuring insulation and protection of cables in dry environments. It features a shrink ratio of two to one and operates within a temperature range of negative sixty-seven degrees Fahrenheit to two hundred seventy-five degrees Fahrenheit. The tubing is made of cross-linked polyolefin, known for its flame-retardant properties.

• Length: four feet
• Inside Diameter: one half inch
• Thickness: zero point zero thirty-five inches

Product Highlights

This heat shrink tubing is suitable for use where abrasion resistance is vital and can help prevent damage to insulated wires and connections.

Product Information

Standard Information

• Catalog Number: HSTT100-48-5
• Manufacturer: Panduit

Technical Specifications

• Application: For dry locations; insulating and protecting wires and cables
• Color: Black
• Material: Polyolefin
• Shrink Ratio: 2:1
• Voltage Rating: 600 VAC
• Temperature Rating: 275°F
• Flame Retardant: Yes
• Standards/Approvals: UL: E122770; Mil Spec: AMS-DTL-23053/5 Class 1
