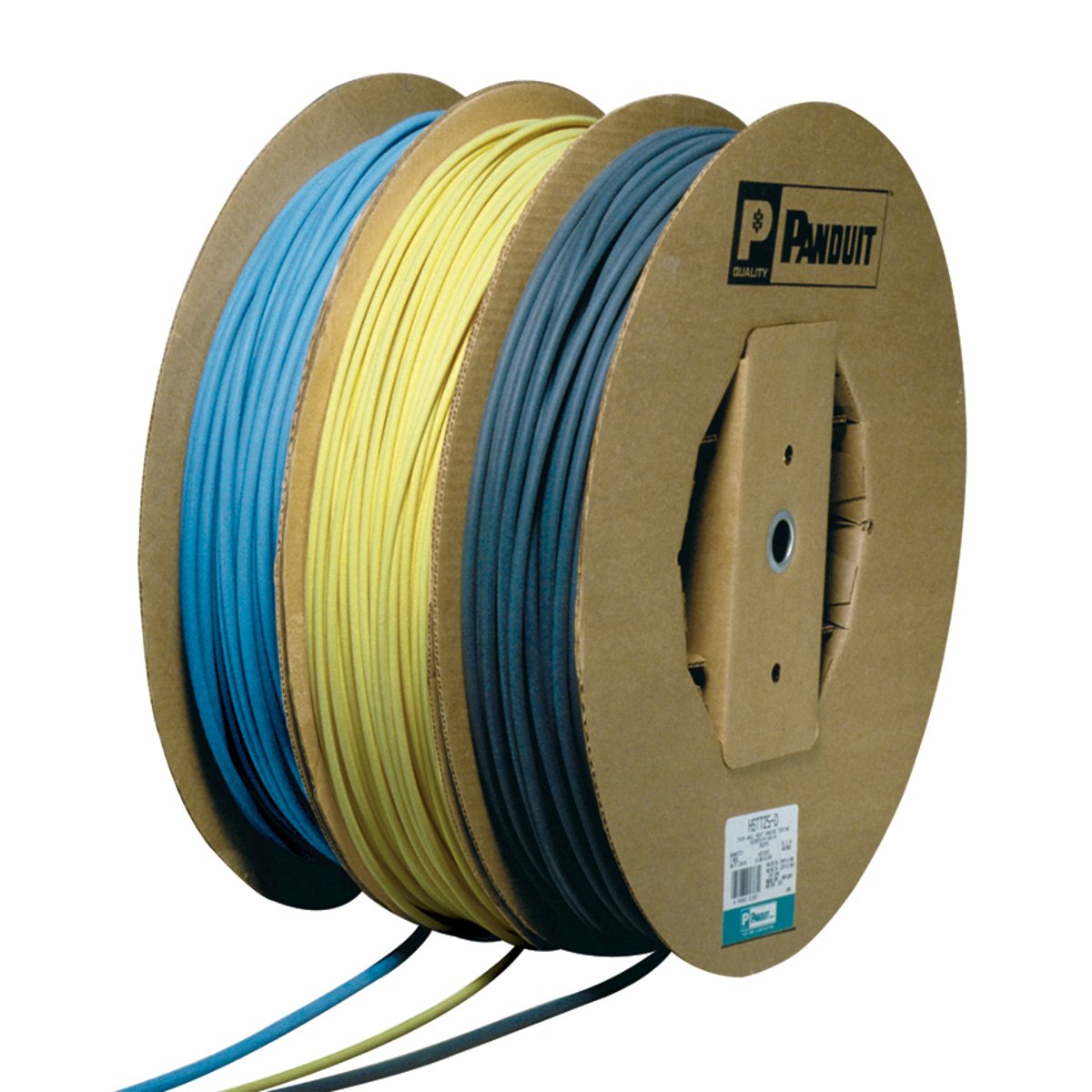

Panduit HSTT09-C Dry-Shrink Heat Shrink Tubing 100 ft

Product Description

Panduit HSTT09-C is a dry-shrink heat shrink tubing designed for a variety of applications. This product features a thin wall, with an inside diameter of zero point zero four six inches when recovered, and an outside diameter of zero point zero nine three inches. The tubing is made from black, cross-linked polyolefin and comes in a length of one hundred feet.

• Temperature range of negative sixty-seven to two hundred seventy-five degrees Fahrenheit.
• UL recognized and CSA approved for safety standards.
• Compliant with military specifications for durability.

Product Highlights

This heat shrink tubing helps in insulating and protecting wires and cables located in dry environments.

Product Information

Standard Information

• Catalog Number: HSTT09-C
• Manufacturer: Panduit

Technical Specifications

• Application: For dry locations
• Color: Black
• Material: Polyolefin
• Length: One hundred feet
• Inside Diameter (Expanded): zero point zero nine three inches
• Inside Diameter (Recovered): zero point zero four six inches
• Length: one hundred feet
• Shrink Ratio: Two to one
• Voltage Rating: Six hundred VAC
• Thickness: zero point zero two inches
• Standards/Approvals: UL Listed, CSA Certified, RoHS Compliant
