Panduit HSTT06-CC PAN Heat Shrink 600 VAC (100 ft) Replacement MPN

Product Description

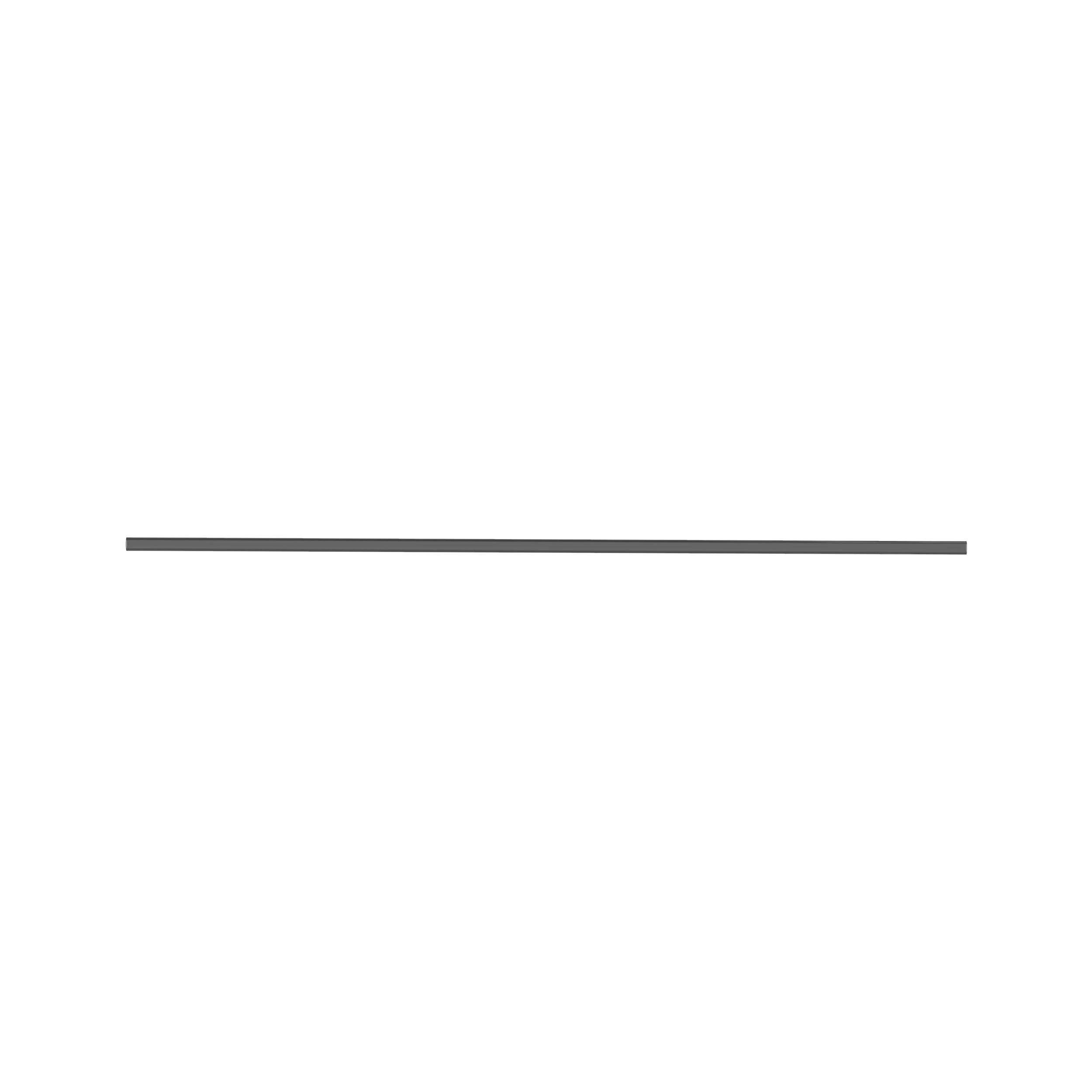

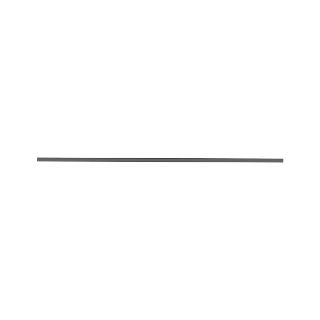

Panduit HSTT06-CC is a cross-linked heat shrink tubing designed for insulating and protecting wires and cables in dry locations. This heat shrink tubing has a diameter of zero point zero six three inches when expanded and zero point zero three one inches when recovered. The tubing has a one point seven inch wall thickness when recovered and comes in a length of one hundred feet. It is made from polyolefin material and can withstand temperatures up to two hundred seventy-five degrees Fahrenheit.

• Type: Cross Linked
• Voltage Rated: 600 VAC
• Shrink Ratio: 2:1

Product Highlights

This tubing is suitable for use in various applications including protecting terminals, connectors, and cables against abrasion, fire, and chemicals. It can be heated to shrink around components, providing a durable and insulated covering.

Product Information

Standard Information

• Brand: Panduit
• MPN: HSTT06-CC

Technical Specifications

• Inner Diameter Expanded: 0.063 inches
• Inner Diameter Recovered: 0.031 inches
• Length: 100 feet
• Material: Polyolefin
• Wall Thickness Recovered: 0.017 inches
• Shrink Temperature: 194 degrees Fahrenheit
• Temperature Rating: 275 degrees Fahrenheit
• Standards: Military Specifications AMS-DTL-23053/5 Class 2
