Product Description

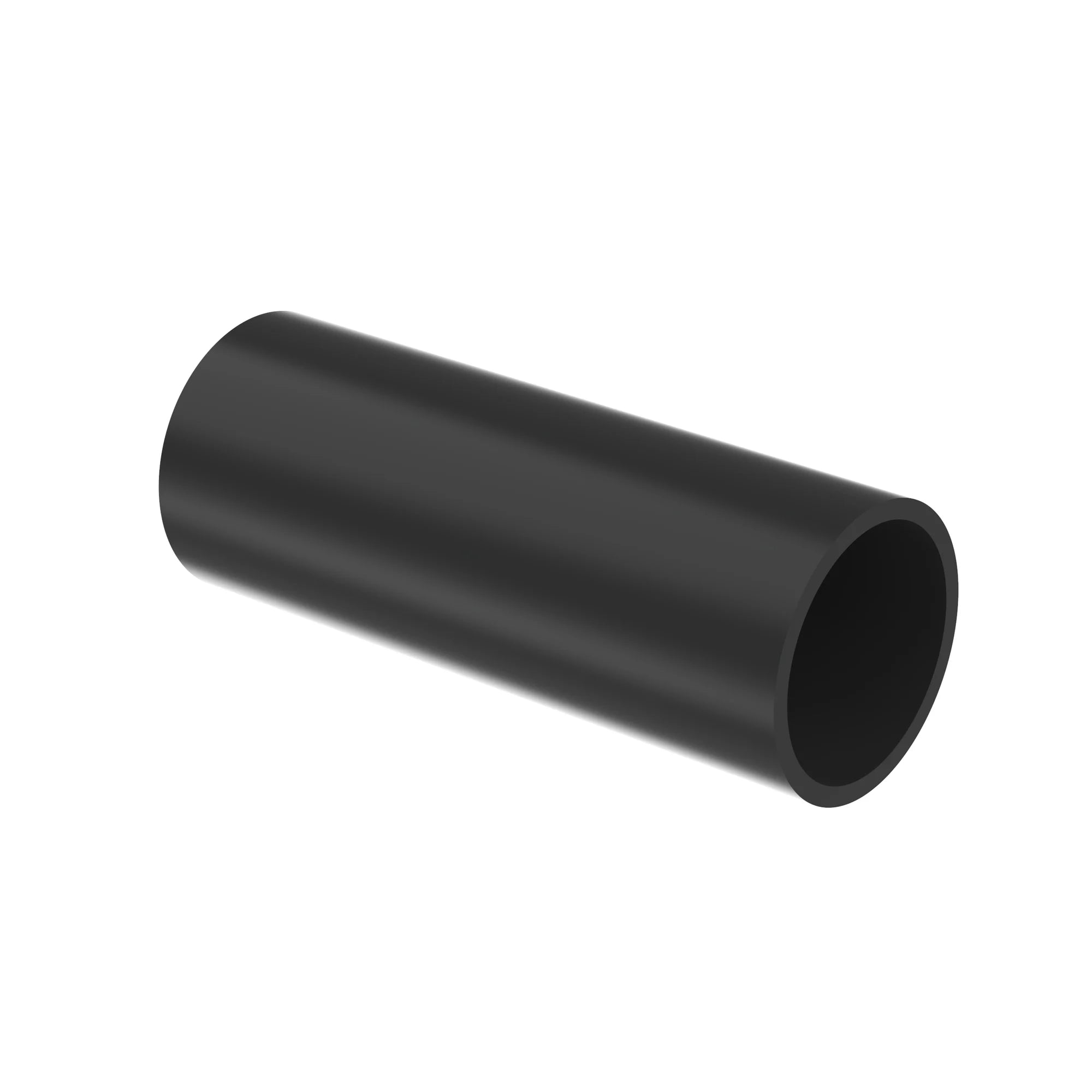

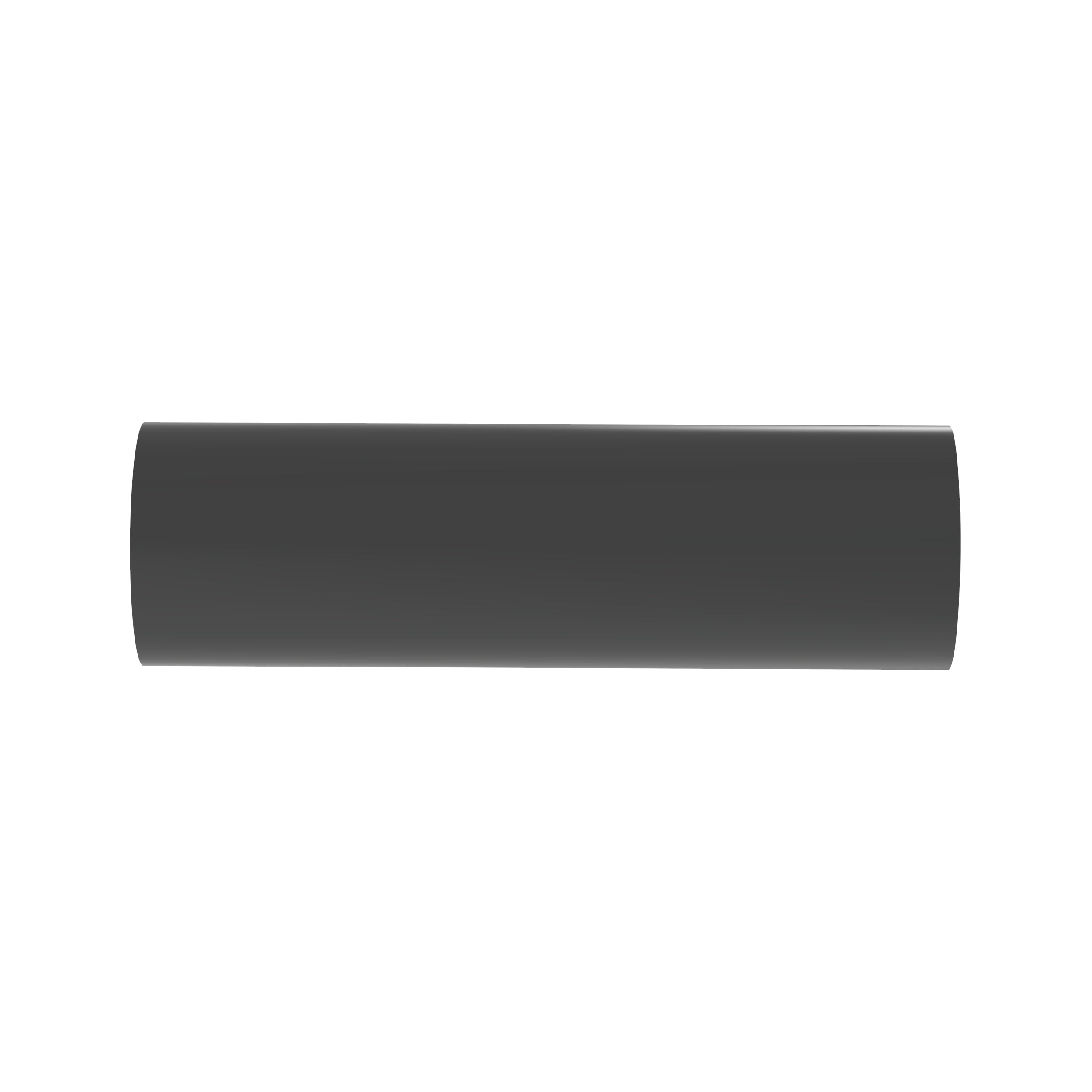

The Panduit HST1.5-48-5Y is a thick wall heat shrink tubing designed for durability and protection. This tubing features an adhesive-lined inner wall for moisture sealing, making it ideal for insulation and protection of wires and cables in outdoor and wet environments. It is suitable for direct burial applications. The product is UL 486D rated for voltage up to six hundred volts and can handle continuous use at ninety degrees Celsius. The shrink ratio is three to one, accommodating various wire sizes. Its temperature range extends from negative sixty-seven degrees Fahrenheit to two hundred thirty degrees Fahrenheit, ensuring stability in extreme conditions. Each pack contains five pieces.
- Adhesive-lined for moisture protection
- Rated for direct burial applications
- Suitable for outdoor and wet location use
Product Highlights
This heat shrink tubing is essential for protecting electrical connections in harsh environments and is easy to install by applying heat.
Product Information
Standard Information
-
Catalog Number: HST1.5-48-5Y
-
Manufacturer: Panduit
Technical Specifications
-
Material: Cross-linked Polyolefin
-
Inside Diameter (Expanded): 1.5 inches
-
Inside Diameter (Recovered): 0.5 inches
-
Length: 48 inches
-
Wall Thickness (Recovered): 0.16 inches
-
Shrink Ratio: 3:1
-
Temperature Rating: -67 to 230 degrees Fahrenheit
-
Voltage Rating: 600 Volts
-
Standards: UL 224, VW-1 Flammability Rated
