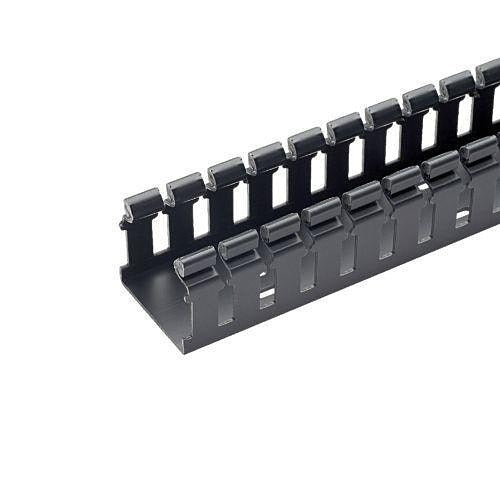

Panduit H2X2BL6 Slotted Hinged Duct Pvc 2x2x6

Product Description

The PANDUIT H2X2BL6 is a slotted hinged wire duct made from PVC, designed to organize and protect electrical wiring in control panels, enclosures, and raceway systems. Measuring 2 inches wide by 2 inches tall by 6 inches in length, this duct features a hinged cover that allows quick access to routed conductors without full disassembly. The slotted sidewalls let wires exit the channel at any point along the run, making layout changes and additions straightforward. Electricians and panel builders rely on this style of duct to maintain neat, code-compliant wiring in industrial and commercial installations.

This slotted hinged duct is suited for use inside electrical enclosures, control panels, and distribution boards where organized conductor routing is required. The 2 x 2 inch cross-section accommodates moderate wire fill, appropriate for branch circuit wiring, control wiring, and low-voltage signal runs in both commercial and light industrial environments. It is typically installed horizontally or vertically along the interior walls of a panel.

Key Features

• Slotted sidewalls allow conductors to exit the duct at any point along the run
• Hinged cover provides fast, tool-optional access for inspection and wire additions
• PVC construction offers resistance to moisture and common cleaning agents
• 2 x 2 x 6 inch nominal size fits standard panel layouts
• Sold individually (unit of measure: each)

Compatibility

Designed as an OEM-style replacement or new-installation component for standard slotted hinged wire duct systems in electrical enclosures and control panels requiring a 2 x 2 inch duct cross-section.

Installation Notes

Installation is typically performed by a licensed electrician or qualified panel builder. De-energize the panel and follow applicable NFPA 70 (NEC) lockout/tagout procedures before routing or modifying conductors inside any enclosure. Secure duct sections to the panel interior using appropriate mounting screws or clips rated for the surface material. Avoid overfilling the duct beyond the recommended wire fill percentage to maintain cover closure and airflow.
