Panduit H100X034H1C Heat Shrink Label 1 x 0.34 Replacement MPN

Product Description

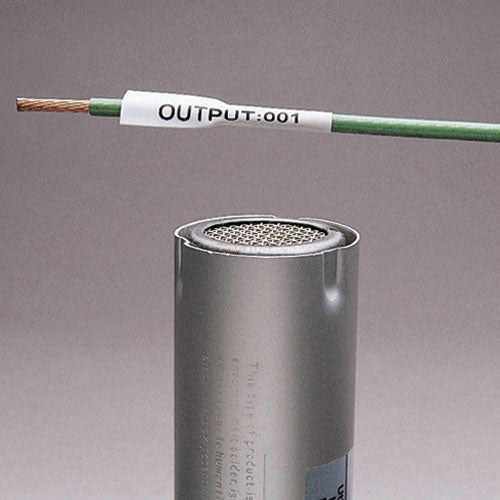

Panduit H100X034H1C is a military-grade polyolefin die-cut heat-shrink label cassette designed for reliability and ease of use. This label cassette features an integrated memory device for automatic formatting. It recalls the last legend used and provides information about the number of labels remaining in the cassette. It is compatible with the Easy-Mark Plus labeling software and suitable for use with LS8E and LS8EQ printers.

• Shrink ratio of 3:1.
• Label size is one inch by 0.34 inches (25.4 mm x 8.6 mm).
• Compatible with cable diameters ranging from 0.06 inches to 0.19 inches (1.5 mm to 4.8 mm).

Product Highlights

This label cassette is ideal for wire and cable identification projects. It delivers clear, professional labels for various applications, ensuring efficient labeling processes across different industries. The white color is designed for high visibility.

Product Information

Standard Information

• Catalog Number: H100X034H1C
• Manufacturer: Panduit

Technical Specifications

• Material: Polyolefin
• Width: 0.34 inches
• Length: 1 inch
• Temperature Rating: 275 degrees Fahrenheit
• Wire Size Compatibility: 18 to 12 AWG
• Standards: MIL-M-81531 and MIL-STD-202G Method 215K, UL Standard 224
