Product Description

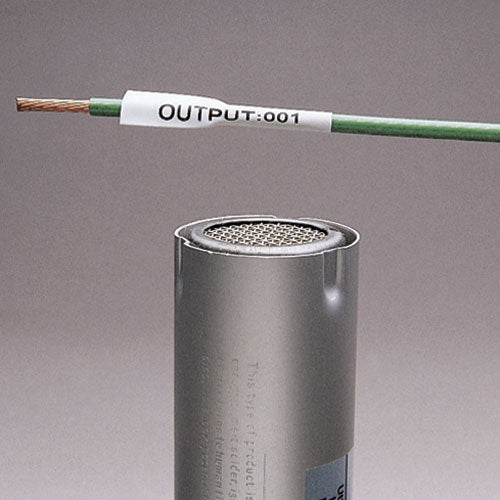

The H100X025H1T-B from Panduit is a military-grade polyolefin heat-shrink label designed for marking wires and cables. It allows for single-sided printing with clear legends, enabling easy identification. The heat-shrink sleeve has a three-to-one shrink ratio and measures 0.25 inches by 1 inch, accommodating various applications in the electrical field.

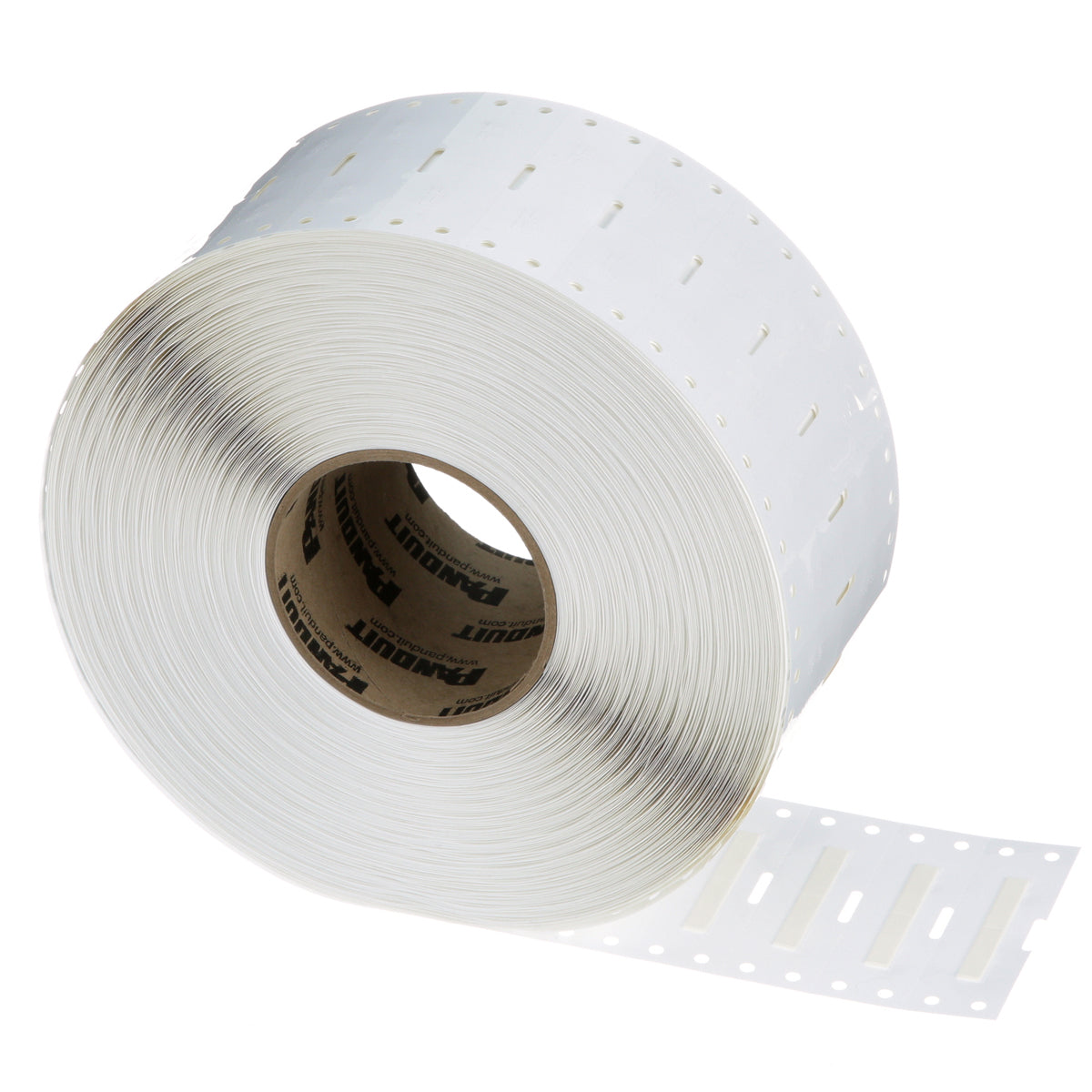

- 5000 labels per roll
- Meets various military and UL standards
- Temperature range of negative sixty-seven to two hundred seventy-five degrees Fahrenheit
Product Highlights
This product supports effective labeling for wire and cable identification, meeting the requirements of numerous military specifications.
Product Information
Standard Information
-
Manufacturer: Panduit
-
Catalog Number: H100X025H1T-B
Technical Specifications
-
Material: Polyolefin
-
Color: White
-
Width: 1 inch
-
Length: 0.25 inches
-
Temperature Range: -67 to 275 °F
-
Labels per Roll: 5000
-
Country of Origin: United States
-
Standards/Approvals: Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3)
