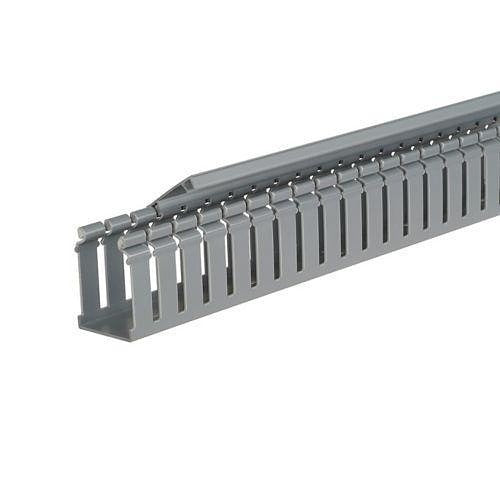

Panduit H1.5X3LG6 Slotted Hinged Wiring Duct Pvc

Product Description

The PANDUIT H1.5X3LG6 is a slotted hinged wiring duct manufactured from PVC, designed to organize and protect electrical conductors and low-voltage wiring in control panels, enclosures, and equipment cabinets. The hinged cover design allows technicians to access internal wiring without removing the duct from its mounting surface, reducing service time on panel work. The slotted sidewalls allow wire breakouts at any point along the run. At 1.5 inches wide by 3 inches tall, this duct provides substantial routing capacity for dense wire bundles common in industrial and commercial control panel builds.

This duct is used in electrical control panels, motor control centers, switchgear enclosures, and similar applications where organized wire management is required. It is suited for both industrial and commercial installations where conductors need to be routed cleanly and remain accessible for future modification or troubleshooting. Electricians and panel builders are the primary installers. It is sold individually as a single unit.

Key Features

• Hinged cover provides quick wire access without unmounting the duct
• Slotted sidewalls allow wire breakouts at any position along the run
• PVC construction resists moisture and common chemicals found in panel environments
• 1.5 inch width by 3 inch height profile accommodates high wire-fill applications
• Sold as a single unit for flexible quantity ordering

Compatibility

Designed as an OEM-style wiring management solution compatible with standard electrical control panel and enclosure installations requiring slotted hinged duct for conductor organization.

Installation Notes

Installation is typically performed by licensed electricians or qualified panel builders during control panel assembly or retrofit. De-energize all circuits in the enclosure before routing or modifying conductors within the duct. The duct is typically secured to panel back plates or DIN rail-mounted brackets using appropriate fasteners; follow NEC guidelines for conductor fill and bend radius when routing wiring through the duct. Avoid overtightening fasteners on PVC duct to prevent cracking or deformation of the housing.
