Panduit H050X084H1T Tt Hs Tubing 0.50 inchesWx.84 inchesH 2000Pc

Product Description

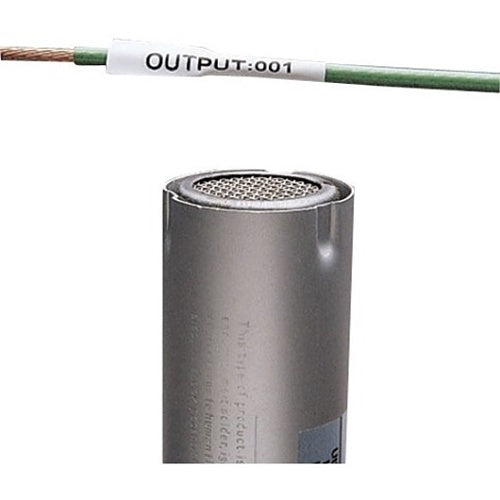

The Panduit H050X084H1T thermal transfer military grade heat-shrink label is single sided with a .5" (12.7mm) diameter and made of 3:1 flattened polyolefin. It is .5" (12.7mm) wide and .84" (21.3mm) high. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. The sleeve has 4 labels per row and 2000 labels per roll.

• Provides clear, reliable, and durable wire and cable identification.
• Offers crisp, clear legends with superior readability.
• Made of flattened military grade polyolefin.

Product Highlights

The Panduit H050X084H1T heat-shrink labels are mounted on a plastic carrier and offer crisp, clear legends for thermal transfer and dot matrix printing.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: H050X084H1T
• Country of Origin: US - United States

Technical Specifications

• Material/Type: PO-POLYOLEFIN
• Military Color Code: WHITE
• Heat Shrink: YES IS SHRINK TUBING
• MIL SPEC: NO
• Width: 0.5 in.
• Height: 0.84 in.
• Application: Wire and Cable Applications
• Length: 0.84 in
• Marker Color: White
• Material: Polyolefin
• Mfg Standards/Approvals: UL File No. E205133, 224|CSA File No. 256205|C22.2 No. 198.1.06|AMS-DTL-23053/5C (Class 1 and Class 3)|SAE-AS81531|MIL-STD-883F Method 2015.13|MIL-STD-202G Method 215K|RoHS|ARRA|Buy American Act Compliant
• Temperature Rating: -67 to 275 deg F
• Type: Single-Sided Thermal Transfer
• Wire Size: 8 to 1 AWG
• ADI Part Number: P9-50X084H1T
• Brand Name: Panduit
• Manufacturer: PANDUIT CORP
• Manufacturer Part Number: H050X084H1T
• Packaged Quantity: 1
• Product Name: Wire & Cable Label
• Product Type: Wire & Cable Label
• Print Technology: Thermal Transfer
• Number of Labels per Roll: 2000
• Environmentally Friendly: Yes
• Shrink Ratio: 3 to 1
• Background Color: White
