Product Description

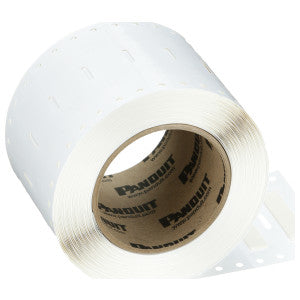

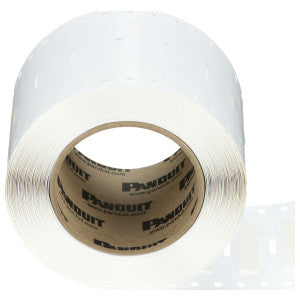

The PANDUIT H050X044H1T thermal transfer military grade heat-shrink label in white is single sided with a 1/4 inch (6.35mm) diameter and made of 3:1 flattened polyolefin. Measuring 0.5" x 0.44" (12.7 mm x 11.2 mm), it offers crisp, clear legends with superior readability for quick and easy wire and cable identification. Designed for use with Panduit TDP printers and is supplied as 2000 labels per roll.
- Single-sided printable
- Crisp, clear legends with superior readability
- Designed for use with Panduit TDP printers
Product Highlights
The H050X044H1T heat-shrink label provides a reliable and durable way to identify wires and cables. It meets military specifications and is RoHS compliant.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: H050X044H1T
-
Country of Origin: US - United States
Technical Specifications
-
ECCN: EAR99
-
Country of Origin: US - United States
-
UNSPSC: 55121612
-
Width: 0.5 in.
-
Color Family: White
-
Height: 0.44 in.
-
Application: For wire and cable identification
-
Length: 0.44 in
-
Manufacturer Part Number: H050X044H1T
-
Marker Color: White
-
Material: Polyolefin
-
Standards/Approvals: AMS-DTL-23053/5C Class 1/3 Military Specifications|ARRA Compliant|Buy American Act Compliant|cUL C22.2 Listed|DIN 40050-9|MIL-M-81531/STD-202G/215K/STD-883F/A/B/D|RoHS Compliant|SAE AS81531|UL 224/969
-
Temperature Rating: -67 to 275 deg F
-
Type: 1-Sided Military Grade Thermal Transfer
-
Wire Size: 16 to 10 AWG
-
IGCC: 7958
-
Size: 0.50 x 0.44
-
Standard: Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3
-
Family group: WIRE MANAGEMENT/ID
-
Manufacturer: PANDUIT
-
Printer Type: Thermal Transfer
-
WES Product code: 2885006580
-
Labels per Package: 2000
-
Item [Specifications]: Heat Shrink Label,0.5x0.44,PK2000
-
Color [Specifications]: White
-
Product Type [Specifications]: Heat Shrink Label
-
Diameter (mm) [Specifications]: 6.4
-
Diameter (In.) [Specifications]: 0.25
-
Label Property [Specifications]: Flammability, Fluid Resistance, Harsh Environments, Military Grade
-
Number of Sides [Specifications]: 1
-
Number of Labels [Specifications]: 2000
-
Label Application [Specifications]: Cable & Wire Marking
-
Overall Width (mm) [Specifications]: 12.7
-
Flammability Rating [Specifications]: VW-1
-
Overall Height (mm) [Specifications]: 11.2
-
Overall Width (In.) [Specifications]: 0.5
-
Overall Height (In.) [Specifications]: 0.44
-
Resistance Properties [Specifications]: Military Grade
-
Number of Labels per Row [Specifications]: 4
-
Compatible Wire Gauge (AWG) [Specifications]: 16-10
-
Maximum Operating Temperature (°C) [Specifications]: 135
-
Maximum Operating Temperature (°F) [Specifications]: 275
-
Minimum Operating Temperature (°C) [Specifications]: -55
-
Minimum Operating Temperature (°F) [Specifications]: -67
-
Country of Origin (subject to change) [Specifications]: United States
-
Packaging: 2000 per Roll
-
Use With: Wire and Cable
-
Diameter: 0.25 in.
-
Maximum Operating Temperature: 135 °C, 275 °F
-
Minimum Operating Temperature: -55 °C, -67 °F
-
Overall Width: 12.7 mm, 0.5 in
-
Overall Height: 11.2 mm, 0.44 in
-
Overall Length: 0 mm, 0 in
-
Sleeve Diameter: 0.25 in, 6.4 mm
-
Compatible Wire Size: 16 AWG
