Panduit ge255-l Slotted Grommet Edging Nylon Natural 50 Strip

Product Description

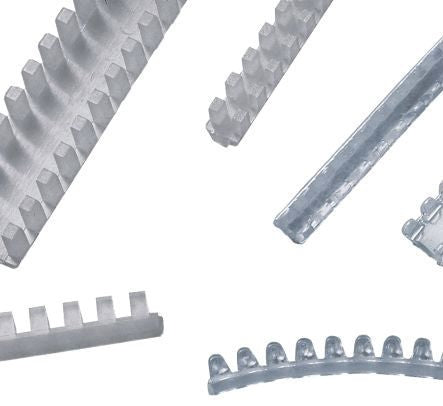

The PANDUIT ge255-l is a slotted wall-type grommet edging strip designed to protect wires and cables from chafing against sharp panel edges, knockouts, and cutouts. Made from Nylon 6.6 material, each strip measures 12.75 inches long and fits panels ranging from 0.192 inches to 0.255 inches thick. The slot opening is 0.39 inches wide by 0.24 inches high. Rated to UL 94 V-2 for flammability and RoHS compliant, this edging meets Applicable Standard MS21266, making it appropriate for aerospace and industrial panel applications. Electricians, panel builders, and aerospace wiring technicians are the primary installers.

The ge255-l is used wherever wire bundles or individual conductors pass through panel walls, enclosure knockouts, or sheet metal cutouts and require edge protection. Typical applications include electrical enclosures, control panels, avionics bays, and industrial equipment where bare metal edges present a chafing or abrasion risk to insulation. The slotted design allows the strip to snap onto panel edges without requiring a pre-drilled hole. The natural color finish suits general-purpose installations where color coding is not required. Each package contains 50 strips.

Key Features

• Slotted wall design snaps onto panel edges without hole drilling
• Nylon 6.6 construction for durability and chemical resistance
• Fits panel wall thicknesses from 0.192 inches to 0.255 inches
• Slot opening: 0.39 inches wide by 0.24 inches high
• Meets Applicable Standard MS21266 for aerospace-grade fitment
• UL 94 V-2 flammability rating and RoHS compliant
• Temperature range: -40 to 149 degrees F

Compatibility

Designed as an OEM-style replacement or new-install grommet edging for panel walls and enclosures with wall thicknesses between 0.192 inches and 0.255 inches, conforming to Applicable Standard MS21266.

Installation Notes

De-energize all circuits in the enclosure or panel before routing wire bundles through any opening fitted with this edging. Press the slotted strip firmly onto the panel edge, working along the length until fully seated. No adhesive or fasteners are required for standard installations, but verify that the panel wall thickness falls within the 0.192 to 0.255 inch range before installation. Follow applicable NEC or customer-specified wiring standards when routing and securing conductors through the protected opening.

Technical Specifications

• Slot Width: 0.39 inches
• Slot Height: 0.24 inches
• Strip Length: 12.75 inches
• Minimum Wall Thickness: 0.192 inches
• Maximum Wall Thickness: 0.255 inches
• Material: Nylon 6.6
• Color: Natural
• Temperature Range: -40 to 149 degrees F
• Flammability Rating: UL 94 V-2
• Applicable Standard: MS21266
• RoHS Compliant: Yes
• Package Quantity: 50 strips

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: ge255-l
