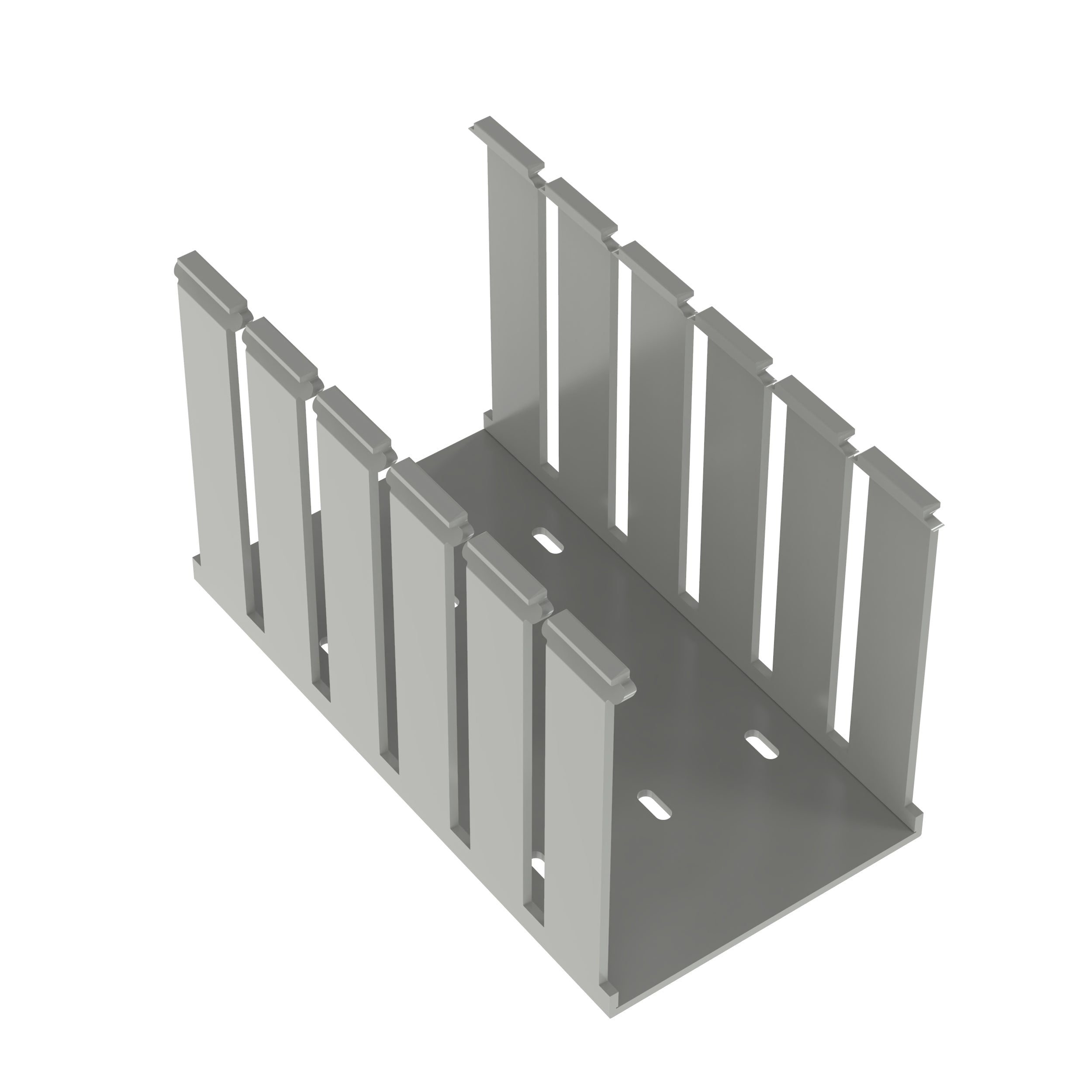

Product Description
The PANDUIT G4X5LG6 Panduct Lead-Free PVC Wide Slot Wiring Duct features a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. It has a UL 94 flame class of V-0 and a UL recognized continuous-use temperature up to 122F (50C).
- Made of lead-free PVC
- UL Recognized continuous use temperature: 122 F (50C)
- UL94 Flammability Rating of V-0
Product Highlights
The wiring duct conforms with NFPA 79-2002 section 14.3.1 requirement for flame retardant material and is provided with mounting holes.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: G4X5LG6
-
Country of Origin: US - United States
Technical Specifications
-
Components: SLOTTED DUCT STANDARD
-
Fiber Duct H x W: 4" X 5"
-
Finish: GREY
-
Material: PVC
-
Type: CABLE ROUTING / WIRING DUCT
-
UNSPSC Code: 39131712
-
Adhesive Backed: Yes
-
Application: For greater sidewall rigidity and can be used in a wide range of indoor applications
-
Color: Light Gray
-
Depth: 5.1 in
-
Includes: Base and Cover
-
Length: 6 ft
-
Manufacturer Part Number: G4X5LG6
-
Mounting Type: Screw
-
Slot Size: 0.38 in
-
Slot Type: Wide Slot
-
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CE 2006/95/EC|CSA C22.2 File No. 18.5-13|EN 50085-1/50085-2-3|IEC 60332-1|NFPA 79-2015 Section 13.3.1/13.5.2|RoHS Compliant|UL Listed|UL 1565|UL94 V-0 Flammability Rated
-
Width: 4-1/4 in
-
Wire Ducts, Raceways: Wire Ducts, Raceways
-
Flammability Rating: UL94V-0
-
Color Family: Gray
-
Product Type: Wide Slot Wiring Duct
