Panduit G4X4LG6 Wide Slot Wiring Duct 6 ft

Product Description

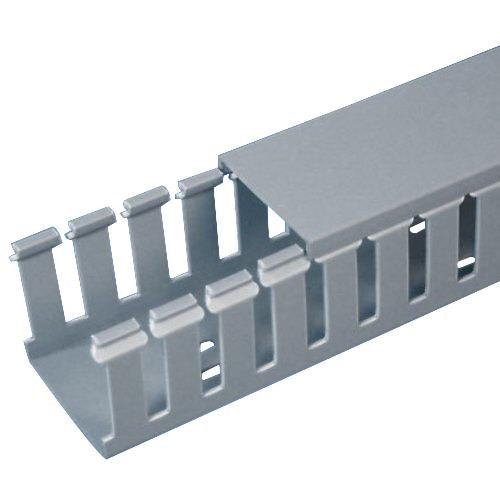

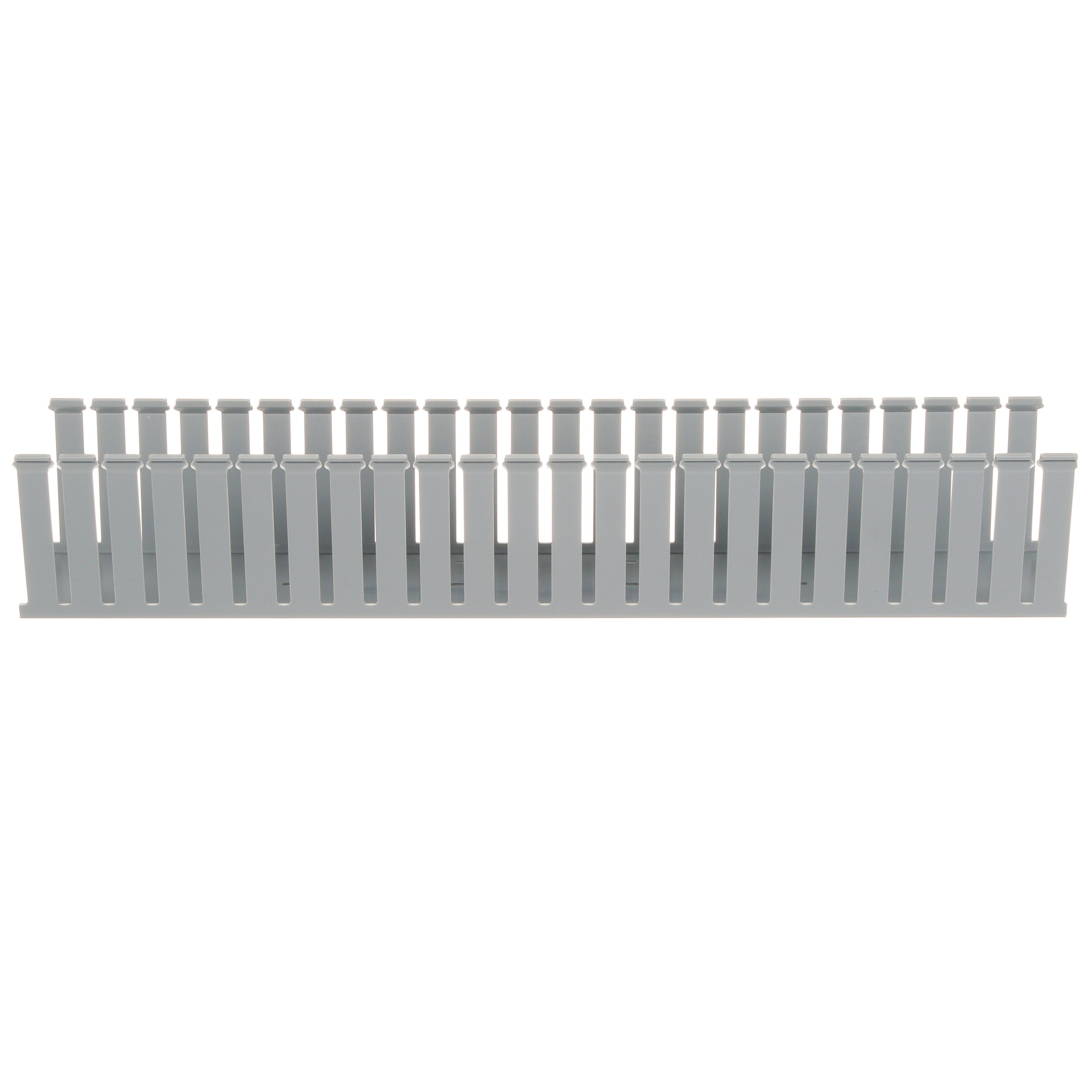

The Panduit G4X4LG6 Panduct Lead-Free PVC Wide Slot Wiring Duct features a wide slot/finger design providing sidewall rigidity, suitable for various wire bundle sizes. Constructed from lead-free PVC, it has a UL 94 V-0 flame class and a continuous-use temperature up to 122F (50C). Mounting holes are provided for easy installation. Cover sold separately.

• Wide Slot/Finger Design Provides Greater Sidewall Rigidity and Can Be Used with a Wide Range of Wire Bundle Sizes
• Provided with Mounting Holes
• Base and Cover Length is 6 Feet

Product Highlights

The Panduit G4X4LG6 wiring duct is ideal for cable routing and organization, ensuring durability and safety with its robust construction and flame-retardant properties.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: G4X4LG6
• Country of Origin: United States

Technical Specifications

• Components: SLOTTED DUCT STANDARD
• Fiber Duct H x W: 4" X 4"
• Material: PLASTIC
• Type: CABLE ROUTING / WIRING DUCT
• UNSPSC Code: 39131712
• Catalog Number: G4X4LG6
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Panduct®
• Country of Origin: United States
• Made in USA: Yes
• Application: Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications
• Connection: Mounting Holes
• PVC Material: PVC
• Slot Pitch: 0.31 IN
• Slot Style: Slotted
• Standard: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
• UPC: 074983545933
• GTIN: 00074983545933
• Item Type: Base Wiring Duct
• Width: 4.25 Inch
• Size: 4.25 x 4.10
• Depth: 4.1 in
• Length: 6 ft
• Mounting Type: Hole
• Slot Size: 0.31 in
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CE 2006/95/EC|CSA C22.2 File No. 18.5-13|EN 50085-1/50085-2-3|IEC 60332-1|NFPA 79-2015 Section 13.3.1/13.5.2|RoHS Compliant|UL Listed|UL 1565|UL94 V-0 Flammability Rated
• Temperature Rating: 122 deg F (50 deg C)
• Height: 4.1
• Environmental Conditions: V0 Flammability Rated Per UL94
• Mounting Holes: 0.2 Inch x 0.5 Inch Standard
• Nominal Size: 4 Inch Width x 4 Inch Height
• Item [Specifications]: Wiring Duct
• Type [Specifications]: Wiring Duct Base
• Height [Specifications]: 4 1/8 in
• Includes [Specifications]: Base Only
• Standards [Specifications]: CE Compliant, CSA Certified, NFPA 79-2015 Section 13.3.1, RU Certified, UL Listed, UL 94V-0
• Wall Type [Specifications]: Slotted
• Slot Height [Specifications]: 3.6 in
• Wall Design [Specifications]: Slotted
• Mount Method [Specifications]: Mounting Holes
• Product Type [Specifications]: Base Wiring Duct
• Nominal Width [Specifications]: 4 in
• Mounting Style [Specifications]: Screw Mount
• Nominal Height [Specifications]: 4 in
• Slot Width (mm) [Specifications]: 7.9
• Slot Width (In.) [Specifications]: 0.31
• Wiring Duct Type [Specifications]: G
• Cover Part Number [Specifications]: C4LG6
• Wiring Duct Style [Specifications]: Wide Slot Wiring Duct
• Measurement System [Specifications]: Imperial
• Overall Length (m) [Specifications]: 1.8
• Overall Width (mm) [Specifications]: 108
• Flammability Rating [Specifications]: UL94V-0
• Overall Height (mm) [Specifications]: 104.1
• Overall Width (In.) [Specifications]: 4.25
• Overall Height (In.) [Specifications]: 4.1
• Overall Length (ft.) [Specifications]: 6
• Compatible Cover Style [Specifications]: Snap-On
• Slot-to-Slot Centerline [Specifications]: 1 in
• Length (Straight Wireway) [Specifications]: 6 ft
• Country of Origin (subject to change) [Specifications]: United States
• Nominal Width: 4 in
• Nominal Height: 4 in
• Mfg Standards/Approvals: ARRA, Buy American Act and RoHS Compliant, CSA Certified, NFPA 79-2007, ASTMD882, ASTMD882, CE Compliant
