Product Description

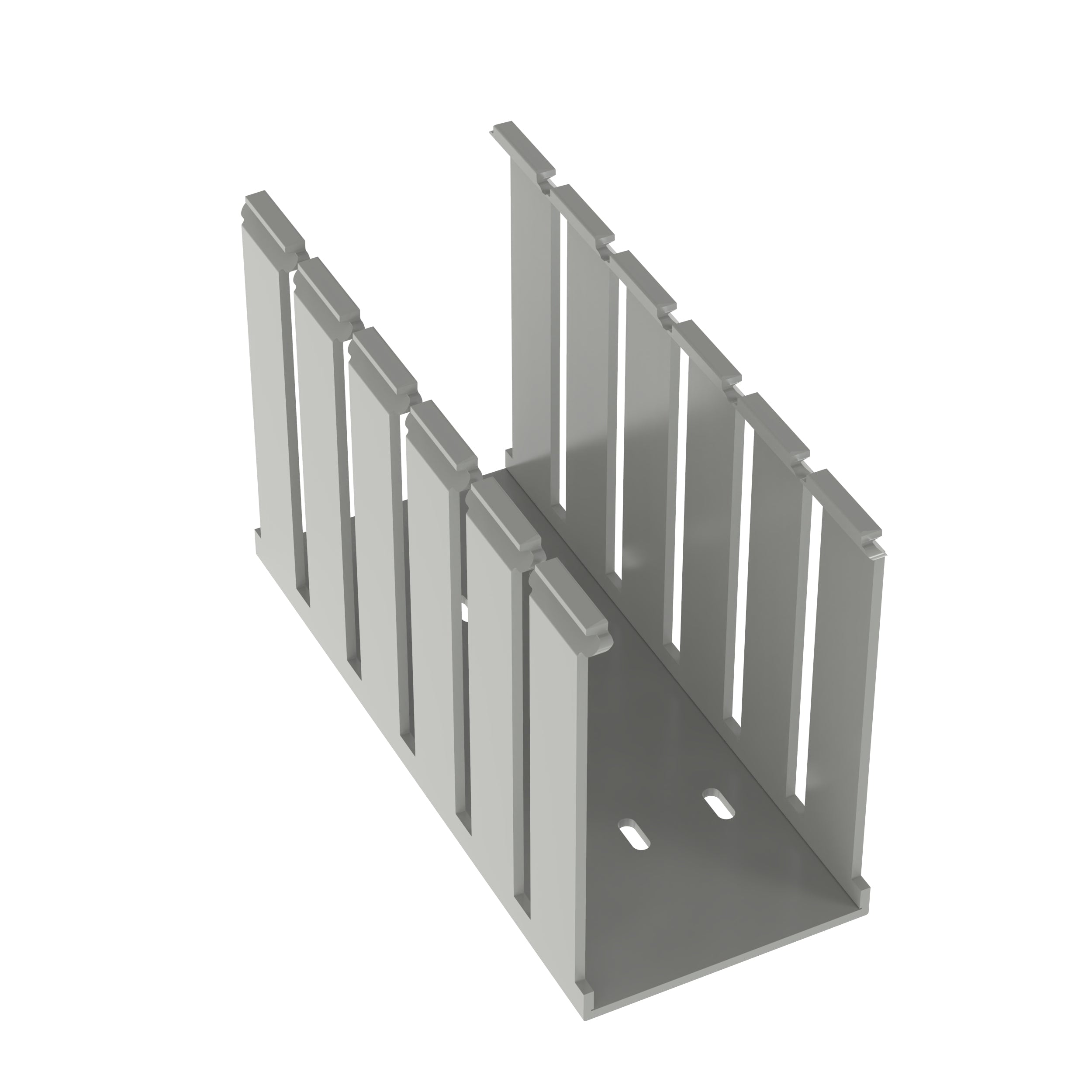

The PANDUIT G3X5LG6 wire duct is gray, light slotted (raceway) with a base screw and a length of 6.00' (1.83m). The wide slot/finger design provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. Mounting holes are provided. Cover sold separately.
- Wide slot/finger design provides greater sidewall rigidity
- Suitable with a range of wire bundle sizes
- UL 94 flame class of V-0
Product Highlights
The PANDUIT G3X5LG6 wire duct is ideal for efficient cable management in data centers and telecom rooms, enhancing network reliability and optimizing space utilization.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: G3X5LG6
-
Country of Origin: US - United States
Technical Specifications
-
Category: Cables, Wires - Management
-
Wire Ducts, Raceways: Wire Ducts, Raceways
-
Length: 6 ft
-
Manufacturer: Panduit Corp
-
Width: 3.251" (82.58mm)
-
Series: PANDUCT Type G
-
Mounting Type: Screw
-
Material: Poly-Vinyl Chloride (PVC)
-
Part Status: Active
-
Color: Gray, Light
-
Wire Duct Type: Slotted (Raceway), Base
-
Base Product Number: G3X5LG
-
Height: 5.010" (127.25mm)
-
ECCN: EAR99
-
Country of Origin: US - United States
-
UPC: 07498354590
-
UNSPSC: 39131712
-
Brand: Panduct
-
Standard: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
-
Application: Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications
-
Flammability Rating: UL94V-0
-
Color Family: Gray
-
Depth: 5.1 in
-
Slot Size: 0.38 in
-
Slot Type: Wide Slot
-
Type: Type G
-
Mounting Holes: Y
-
ARRA Compliant: Y
-
Buy American Compliant: Y
-
Catalog Number: G3X5LG6
-
Connection: Mounting Holes
-
Size: 3.25 x 5.10
-
Slot Pitch: 0.38 in
-
Slot Style: Slotted
-
Standards: ARRA CompliantBuy American Act CompliantRoHS 2011/65/EUUL 1565CSA C22.2 No. 18.5-13CE 2006/95/ECEN 50085-1EN 50085-2-3NFPA 79-2015 Section 13.3.1 IEC 60332-1NFPA 79-2015 Section 13.5.2
-
Sub Brand: Panduct?
-
Adhesive Backed: Yes
-
Product Line: Panduct
-
Product Model: Type G
-
Product Name: 6ft Panduct Type G - Wide Slot Wiring Duct
-
Product Type: Cable Routing
-
Environmental Certification: CE, RoHS, UL
-
Environmentally Friendly: Yes
