Panduit G3X4WH6 Wiring Duct 3 in. Width, 4 in. Depth, 6 ft. Length

Product Description

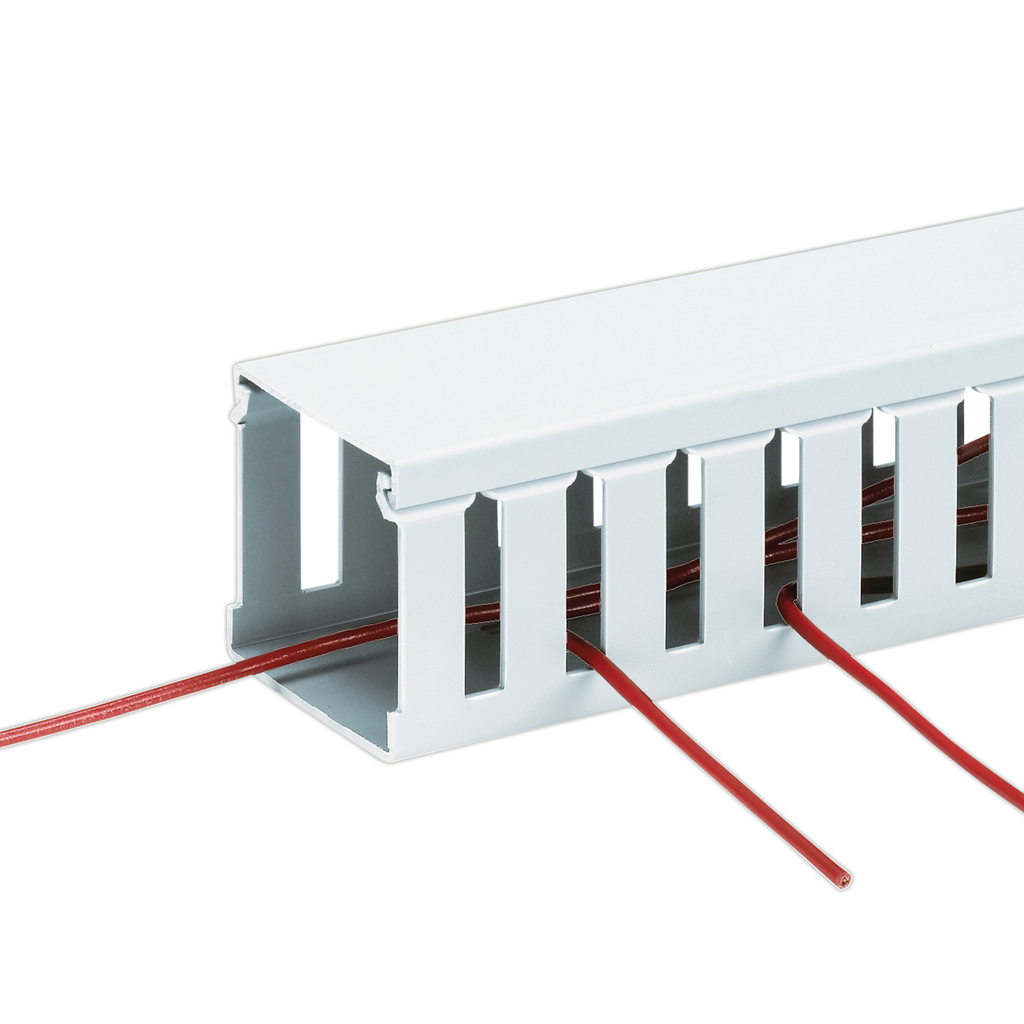

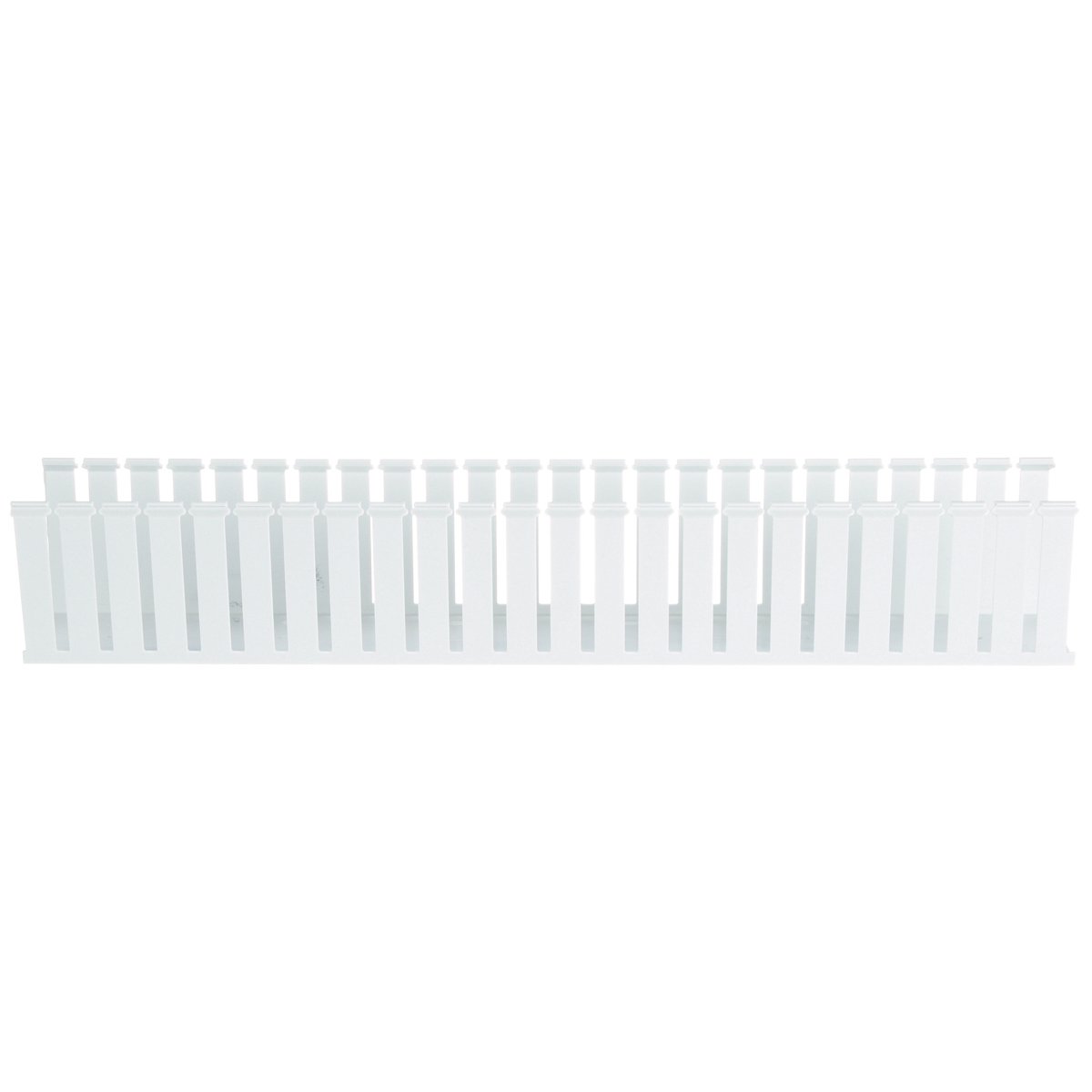

The PANDUIT G3X4WH6 is a wiring duct with a wide slot/finger design that provides greater sidewall rigidity and is suitable with a wide range of wire bundle sizes. Constructed from lead-free PVC, it has mounting holes for easy installation. Cover sold separately.

• Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes
• Upper and lower scorelines allows easy finger and sidewall section removals
• Reducing scrap and labor costs by protecting the surface during storage, handling and installation

Product Highlights

The PANDUIT G3X4WH6 wiring duct is ideal for organizing and protecting wires in various applications. Its wide slot design and durable PVC construction make it a reliable choice for cable management.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: G3X4WH6
• Country of Origin: US

Technical Specifications

• Color: White
• Depth: 4 in
• Width: 3 in
• Length: 6 ft
• Material: PVC
• Slot Size: 0.31 in
• Slot Type: Wide Slot
• Thickness: 0.1 in
• Mounting Type: Hole
• Adhesive Backed: No
• Country of Origin: US
• Sub Brand: Panduct
• Made in USA: Yes
• Application: Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications
• Connection: Mounting Holes
• Slot Pitch: 0.31 IN
• Slot Style: Slotted
• Standard: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
• Item Type: Base Wiring Duct
• Buy American Compliant: Y
• Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
• Flammability Rating: UL94V-0
• Color Family: White
• Wire Duct Type: Slotted (Raceway), Base
