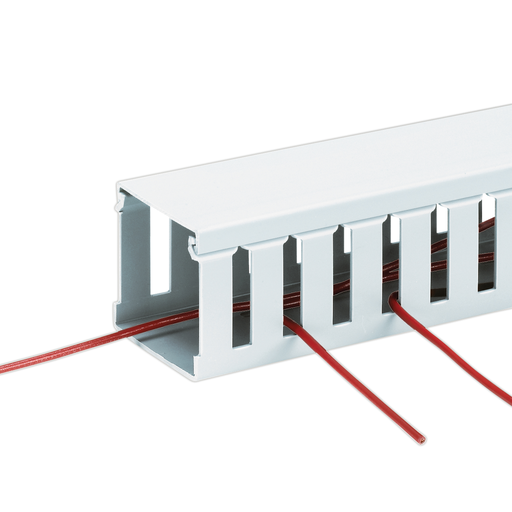

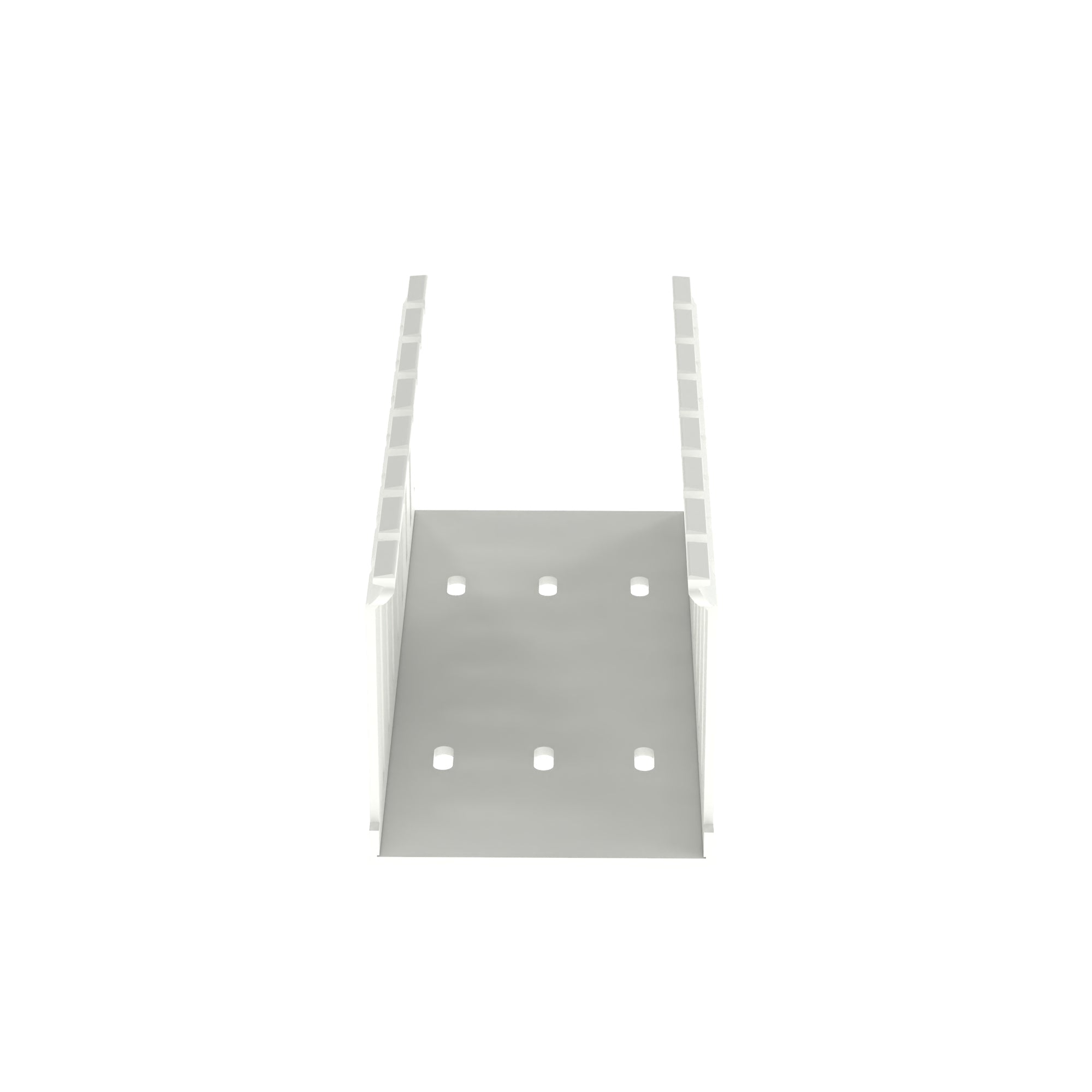

Panduit G3X3WH6 Base Wiring Duct PVC 3 x 3 x 6' White

Product Description

The Panduit G3X3WH6 is a base wiring duct made of lead-free PVC. It has a wide slot and finger design providing enhanced rigidity for a range of wire bundles. This duct is compliant with UL 94 flame class V-0 and can sustain a temperature of up to one hundred twenty-two degrees Fahrenheit (fifty degrees Celsius). The product features mounting holes for easy installation and measures three inches by three inches with a length of six feet. Note that the cover is sold separately.

• Lead-free PVC construction
• Wide slot design for various wire sizes
• UL recognized for safety

Product Highlights

This wiring duct is ideal for managing wires while ensuring protection and organization. Its design allows for effective use in various applications requiring strong and stable wire management.

Product Information

Standard Information

• Manufacturer: Panduit
• Catalog Number: G3X3WH6

Technical Specifications

• Length: 6.00 inches
• Width: 3.25 inches
• Material: PVC
• Color: White
• Slot Width: 0.31 inches
• Flammability Rating: UL 94 V-0
• Application: For greater sidewall rigidity; suitable for indoor use
• Compliance Standards: RoHS, UL Recognized
