Product Description

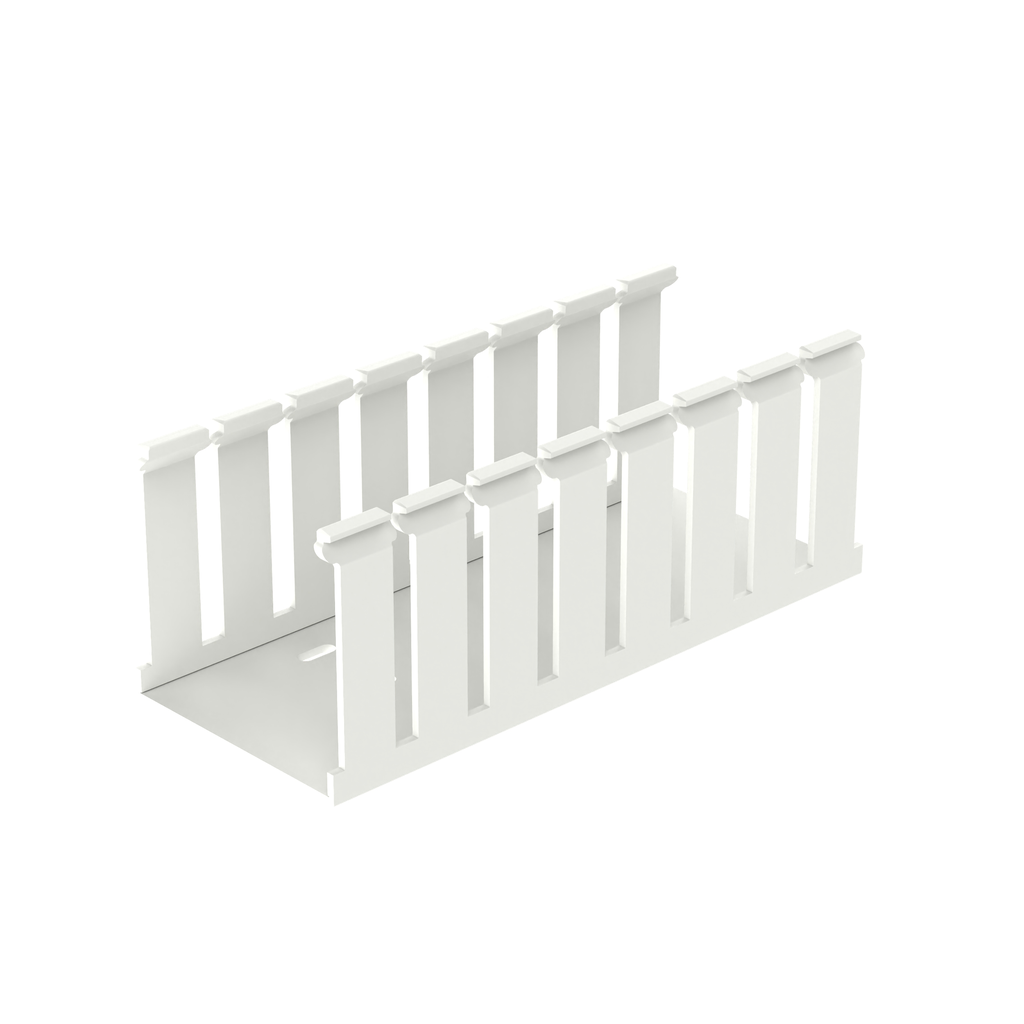

The Panduit G3X2WH6 is a Panduct type G wide slot wiring duct, 3 W x 2 H, 6’ length, made of PVC. It provides excellent wire management with a variety of wire sizes and component types and is provided with mounting holes for easy installation. Covers are sold separately.
- Made of lead-free PVC
- UL Recognized continuous use temperature: 122 F (50C)
- UL94 Flammability Rating of V-0
Product Highlights

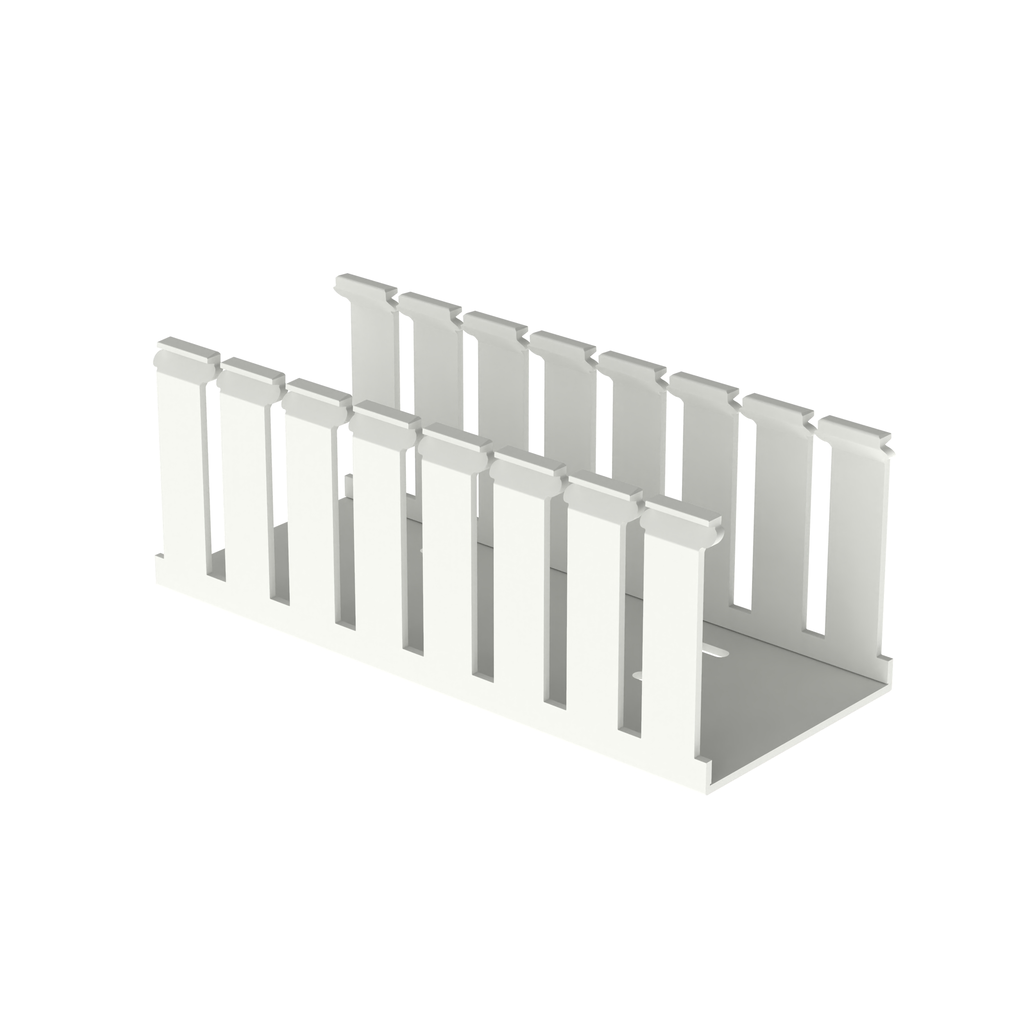

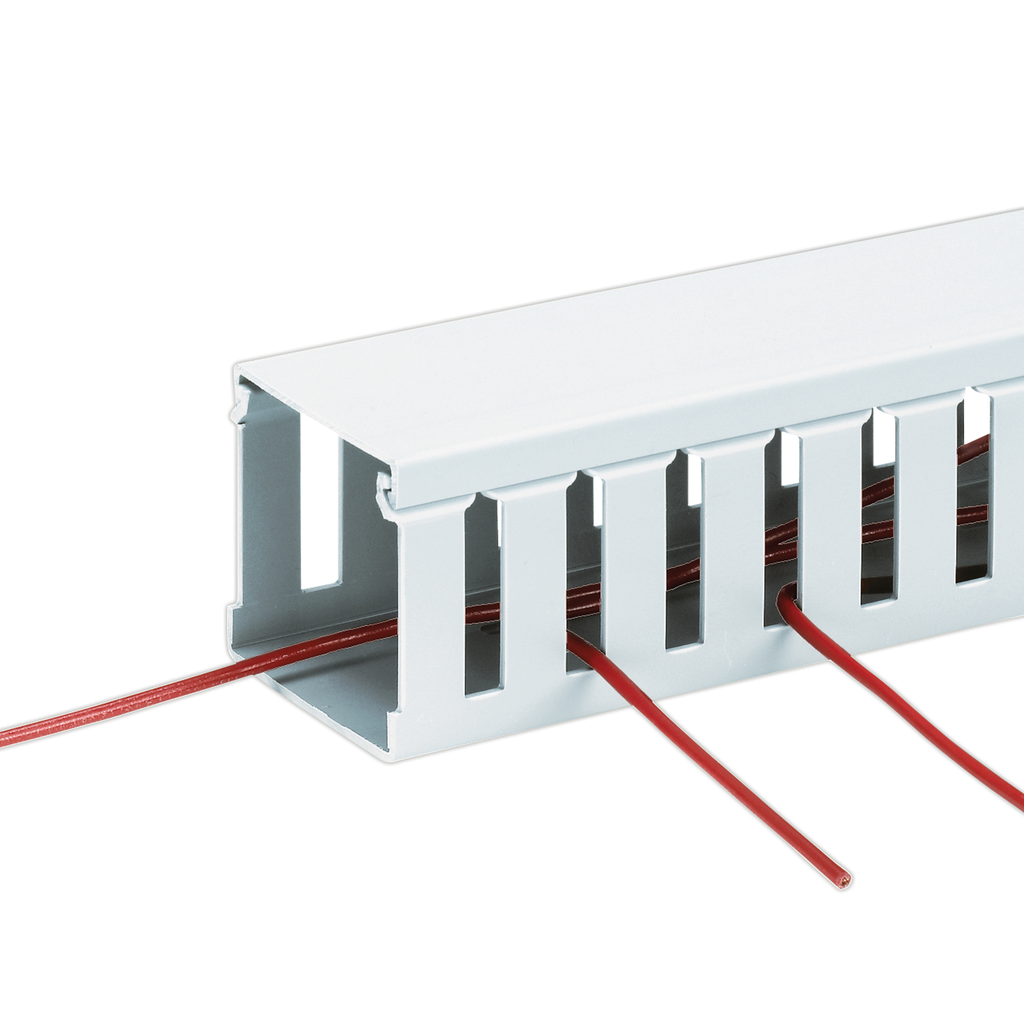

The Panduit G3X2WH6 wiring duct features a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: G3X2WH6
-
Country of Origin: USA
Technical Specifications
-
Components: SLOTTED DUCT STANDARD
-
Fiber Duct H x W: 3" X 2"
-
Finish: WHITE
-
Material: PVC
-
Type: CABLE ROUTING / WIRING DUCT
-
UNSPSC Code: 39131712
-
Application: For reducing scrap and labor costs by protecting the surface during storage, handling, installation, general purpose and indoor applications
-
Color: White
-
Depth: 2.12 in
-
Length: 6 ft
-
Manufacturer Part Number: G3X2WH6
-

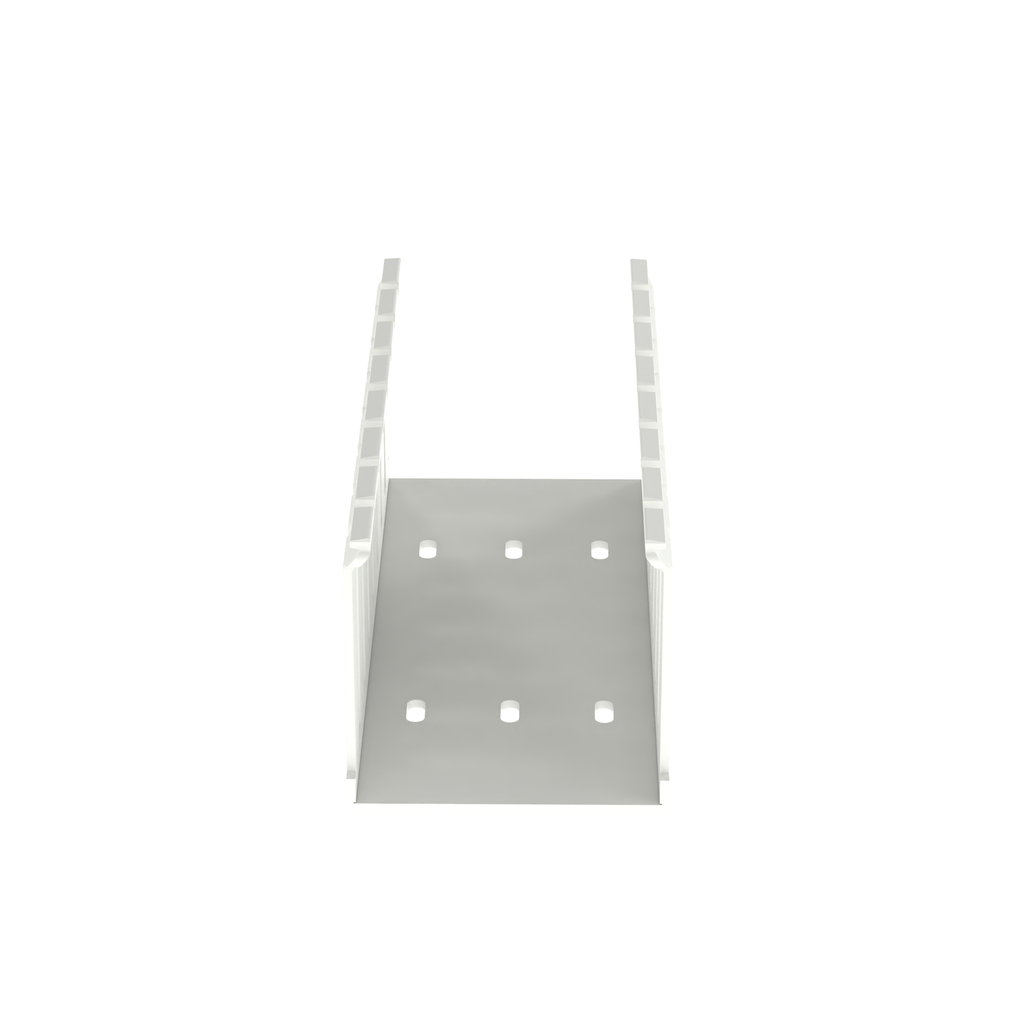

Mounting Type: Hole
-
Slot Size: 0.31 in
-
Slot Type: Wide Slot
-
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CE 2006/95/EC|CSA C22.2 File No. 18.5-13|EN 50085-1/50085-2-3|IEC 60332-1|NFPA 79-2015 Section 13.3.1/13.5.2|RoHS Compliant|UL Listed|UL 1565
-
Width: 3-1/4 in
-
Category: Cables, Wires - Management
-
Wire Ducts, Raceways: Wire Ducts, Raceways
-
Series: PANDUCT
Type G
-
Packaging: Bulk
-
Wire Duct Type: Slotted (Raceway), Base
-
Base Product Number: G3X2WH
-
Height: 1.990" (50.55mm)
-
ECCN: EAR99
-
Country of Origin: US - United States
-
UPC: 07498354626
-
UNSPSC: 39131712
-
Brand: Panduct
-
Standard: RoHS Compliant, UL Recognized, CE Compliant
-
Connection Type: Standard Mounting Holes
-
Flammability Rating: UL94 V-0
-
Color Family: White
-
Applications: Indoor
-
Size: 3.25 x 2.12 IN
-
Tc Connection: Mounting Holes
-
Pkg Qty: 6
-
Sub Brand: Panduct
-
12-Digit UPC: 074983546268
-
Product UPC: 07498354626
-
Overall Length: 6 ft
-
Buy American Compliant: Y
-
Prop 65 Warning: No
-
Prop 65: No
-
Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
-
ARRA Compliant: Y
-
Catalog Number: G3X2WH6
-
Connection: Mounting Holes
-
EU RoHS Indicator: Y
-
Slot Pitch: 0.31 in
-
Slot Style: Slotted
-
Slot Type Standard: Wide
-
Thickness: 2 mil
